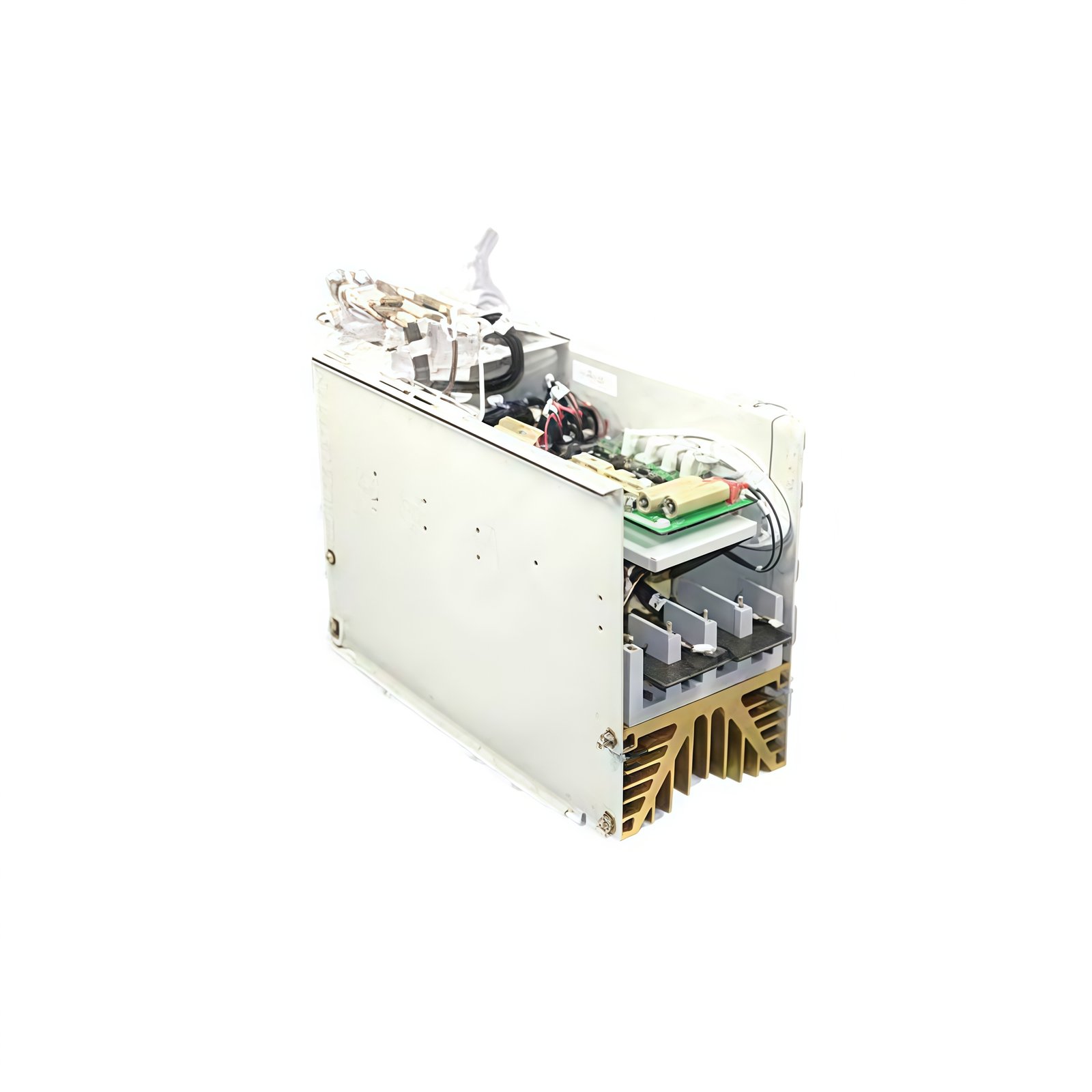

The GE DS2020FEANRP050A controls excitation current for synchronous generators. This module generates firing pulses for silicon-controlled rectifier (SCR) bridges. It fits directly into GE EX2100 and EX2100e excitation systems. You will depend on this unit for precise voltage regulation and field control.

Technical Specifications Overview

This field exciter module provides six SCR firing channels on a single board. Each channel operates independently with optical isolation from the control logic. The GE DS2020FEANRP050A accepts 24 V DC as its primary control power. A built-in phase-locked loop synchronizes firing angles to the AC line. Consequently, you achieve smooth and stable generator voltage regulation.

Internal Components and Energy Storage

The GE DS2020FEANRP050A contains one main PCBA with 178 discrete components. Key parts include six pulse transformers for SCR gate isolation. The board also holds four electrolytic capacitors storing 1500 µF of energy. This storage maintains firing pulses during 15 ms supply interruptions. Additionally, a field-programmable gate array manages all timing and sequencing logic. A dedicated oscillator provides precise clock signals for angle calculation.

Physical Interfaces and Connectors

You will find two front-facing 32-pin connectors on this module. These connectors interface with the EX2100 backplane for power and commands. Each firing output terminates on a separate high-voltage terminal block. Six green LEDs indicate active firing pulses on each channel. One red LED lights for any internal fault or phase error. Six mounting holes secure the GE DS2020FEANRP050A firmly to its chassis.

Installation and Operational Reliability

Install this field exciter module in a clean and dust-free cabinet. Maintain 50 mm of clearance around the board for cooling. The module performs a power-on self-test of all firing circuits automatically. Therefore, you verify proper gate drive health before generator startup. This unit supports continuous duty in demanding power plant environments.
