Why This VME Board Backplanes Your Drive Control System

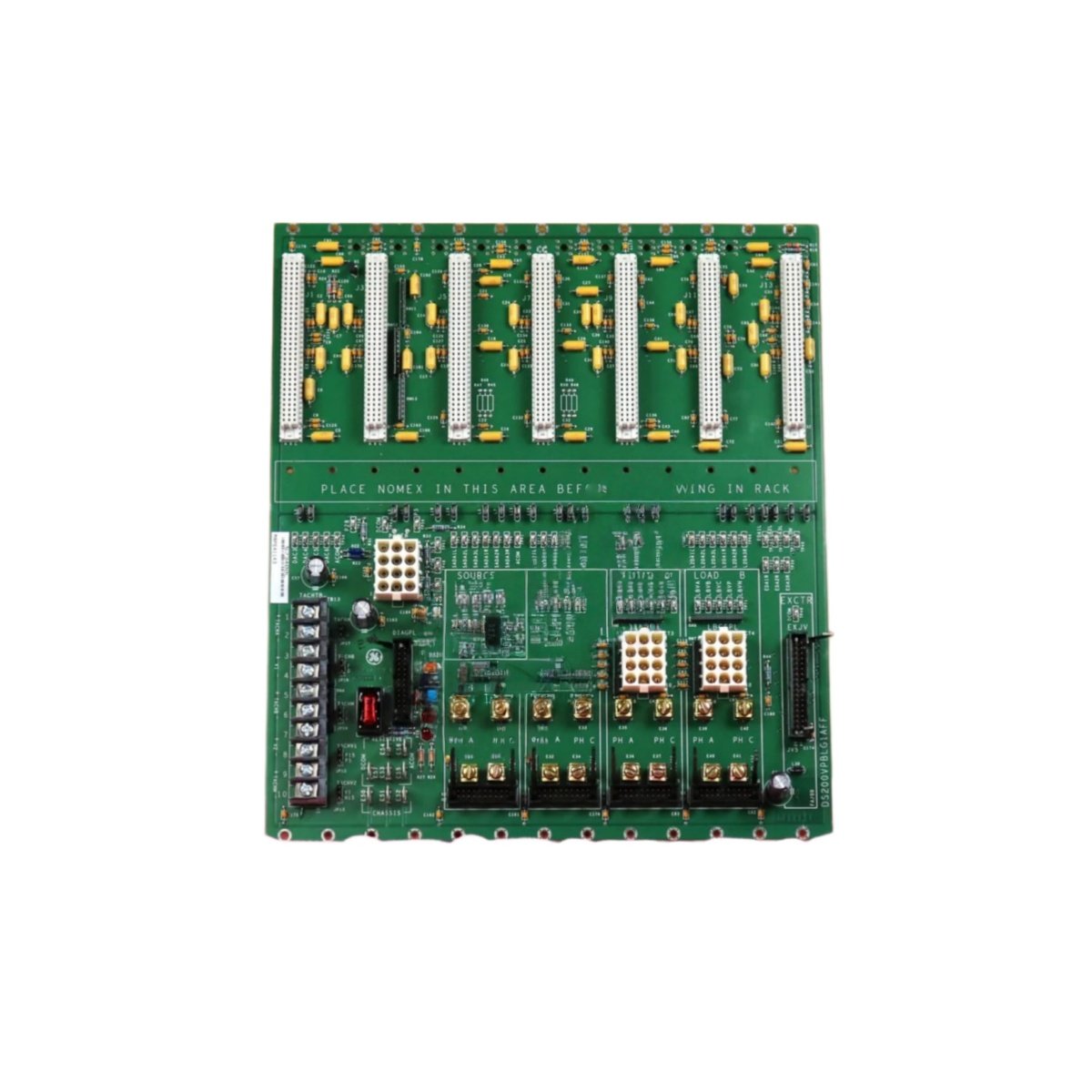

This VME board serves as the main backplane for plug-in controller cards. You get a robust GE DS200VPBLG1A DS200VPBLG1AFF for industrial drive platforms. It provides six VME bus slots for compatible modules. Therefore, your system can host multiple control functions in one compact assembly.

Technical Specifications and Physical Details

The GE DS200VPBLG1A DS200VPBLG1AFF features six industry-standard VME expansion slots. It includes a dedicated power connector for backplane voltage distribution. This board mounts horizontally inside the drive cabinet. Its dimensions measure approximately 400 mm in width and 220 mm in height. The unit weighs around 0.85 kg for secure installation. This VME board stores no configuration data internally. Instead, each plugged module holds its own firmware and settings. Consequently, you lose no system parameters during a backplane replacement.

Below is the detailed breakdown of the hardware specifications.

Installation and Module Integration

This board mounts onto standoffs inside the main drive enclosure. You must install slot covers on all unused positions. The GE DS200VPBLG1A DS200VPBLG1AFF requires proper alignment when inserting each card. Therefore, push modules straight into their guides without forcing. Always power down the system before adding or removing any VME card. Hot swapping will damage both the backplane and the module connectors.
