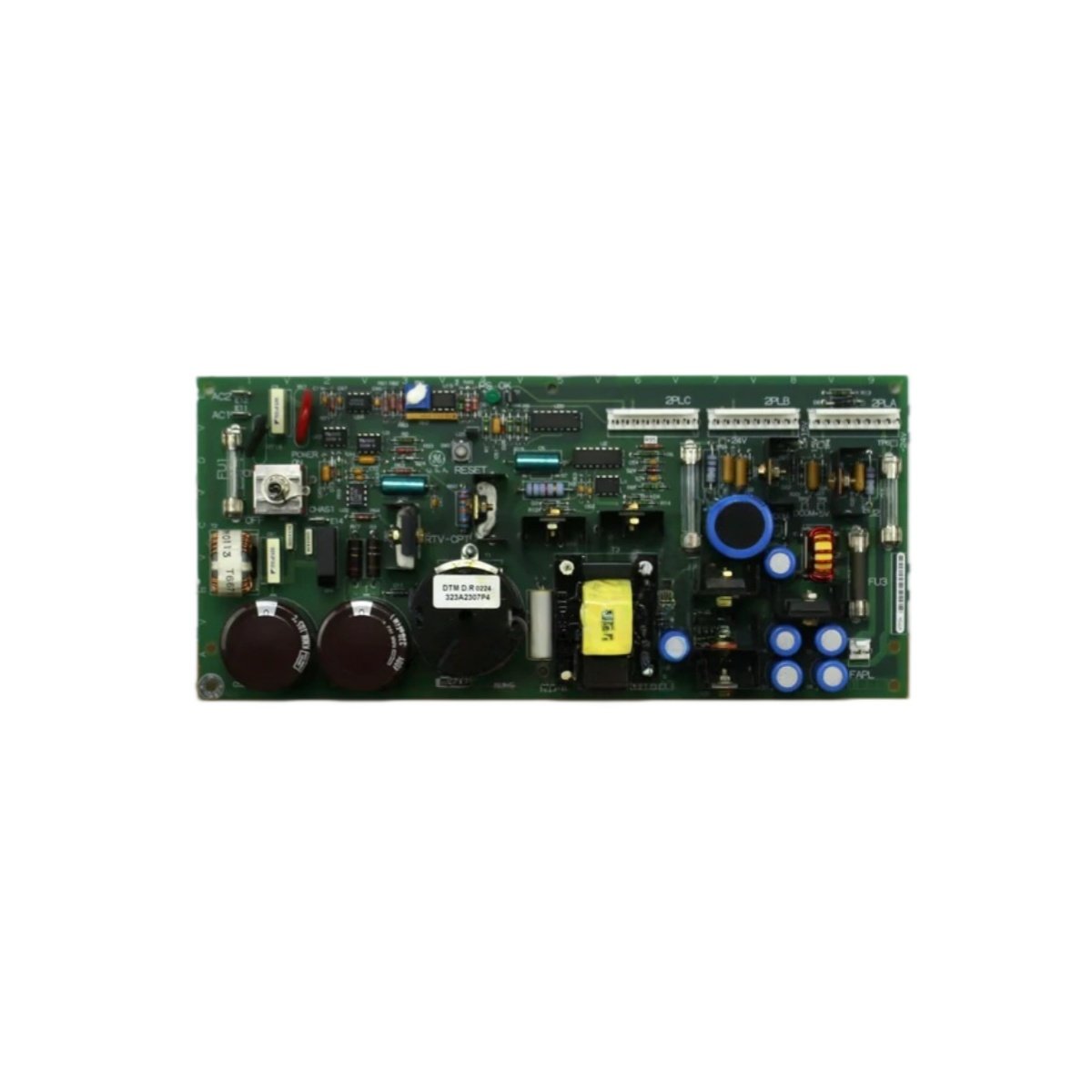

This power supply board provides regulated DC power to drive control circuits. It converts 24V DC input into multiple isolated output voltages. The unit mounts inside the drive cabinet as a secondary power source.
Technical specifications
| Parameter | Specification |
|---|---|
| Brand | GE Energy |
| Model 1 | DS200UPSAG1A |
| Model 2 | DS200UPSAG1AGD |
| Product Family | Mark V / Drive Control |
| Category | Power Supply Board |
| PCB Layer Count | 6 layers |
| Base Material | High-Tg FR-4 |
| Input Voltage | 24V DC nominal (18V to 32V) |
| Input Current | 2.1A typical at full load |
| Output Voltage 1 | +5V DC |
| Output Current 1 | 4A continuous |
| Output Voltage 2 | +15V DC |
| Output Current 2 | 1A continuous |
| Output Voltage 3 | -15V DC |
| Output Current 3 | 0.5A continuous |
| Output Voltage 4 | +24V DC (isolated) |
| Output Current 4 | 0.5A continuous |
| Total Output Power | 50 Watts maximum |
| Efficiency | Approximately 88% |
| Hold-up Time | 10 ms at full load |
| Ripple | ≤ 30 mV peak-to-peak |
| Component Count | Approximately 120 components |
| Integrated Circuits | 14 ICs (DC-DC converters, PWM) |
| Connector Types | 2 x 20-pin headers, 1 x terminal block |
| Status Indicators | 2 x LEDs (PWR, OK) |
| Energy Storage | 6 x electrolytic capacitors (150 µF each) |
| Dimensions (L x W) | Approx. 22 cm x 15 cm |
| Thickness | Approx. 1.6 mm |
| Weight | Approx. 0.32 kg |
| Operating Temperature | 0°C to 55°C |
| Mounting | 4 x screw holes (M4) |
Detailed Technical Analysis
This power supply board converts 24V DC input into four regulated output voltages. It provides +5V at 4 amps for logic and processor circuits. The board also delivers ±15V for analog circuitry and op-amps. An isolated +24V output powers auxiliary field devices.
Now let us examine its conversion efficiency. This board achieves approximately 88% efficiency under normal load conditions. The output ripple stays below 30 millivolts for clean DC power. Approximately 120 components populate both sides of this 6-layer PCB. Fourteen integrated circuits include DC-DC converters and a PWM controller.
This power board draws 2.1 amps from the 24V DC input at full load. Two LEDs indicate power presence and output status. Six electrolytic capacitors store energy for 10 milliseconds of hold-up time. The GE DS200UPSAG1A DS200UPSAG1AGD provides full isolation between input and output circuits.
Installation and Connection Guidelines
You mount this board using four M4 screws with insulating standoffs. Connect the 24V DC input to the designated terminal block. Use 18 AWG or larger wire for the DC supply connection. The board automatically generates all output voltages upon power-up.
Do not exceed the maximum output current on any rail. The board includes overcurrent and short circuit protection. Verify all output voltages before connecting sensitive loads. Always power down the system before inserting or removing this board.
Practical Applications
Engineers use this power board for drive control circuit power distribution. It provides multiple voltages from a single 24V DC source. This component also works in legacy drive upgrade projects. Its 50-watt capacity suits medium-sized control power requirements.
Summary of Features
To conclude, this power supply provides +5V, ±15V, and isolated +24V at 50 watts. It weighs 0.32 kilograms and achieves 88% efficiency. Choose DS200UPSAG1A DS200UPSAG1AGD for reliable power distribution in drive systems.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
