Technical Specifications
| Parameter | Value |
|---|---|
| Brand | GE |
| Model | DS200UPLAG1A DS200UPLAG1APR2 |
| Category | Power Supply Board |
| Weight | 2.28 lbs (1.03 kg) |
| Dimensions | 9.7 x 6.4 x 2.1 inches |
| PCB Layers | 6-layer board |
| Component Count | 268 discrete components |
| Input Voltage | 120-240V AC or 125V DC |
| Input Frequency | 47-63 Hz (AC mode) |
| Output Voltages | +5V, +12V, -12V, +24V |
| +5V Output Current | 15A maximum |
| +12V Output Current | 2.5A maximum |
| -12V Output Current | 1A maximum |
| +24V Output Current | 3A maximum |
| Total Output Power | 150W |
| Efficiency | 83% typical |
| Hold-up Time | 20 ms at full load |
| Protection | Overcurrent, overvoltage, short-circuit |
| Energy Storage | 6 x 1500µF, 8 x 470µF |
| Cooling Method | Natural convection |
| Operating Temperature | 0°C to 55°C |
Physical Construction and Component Layout

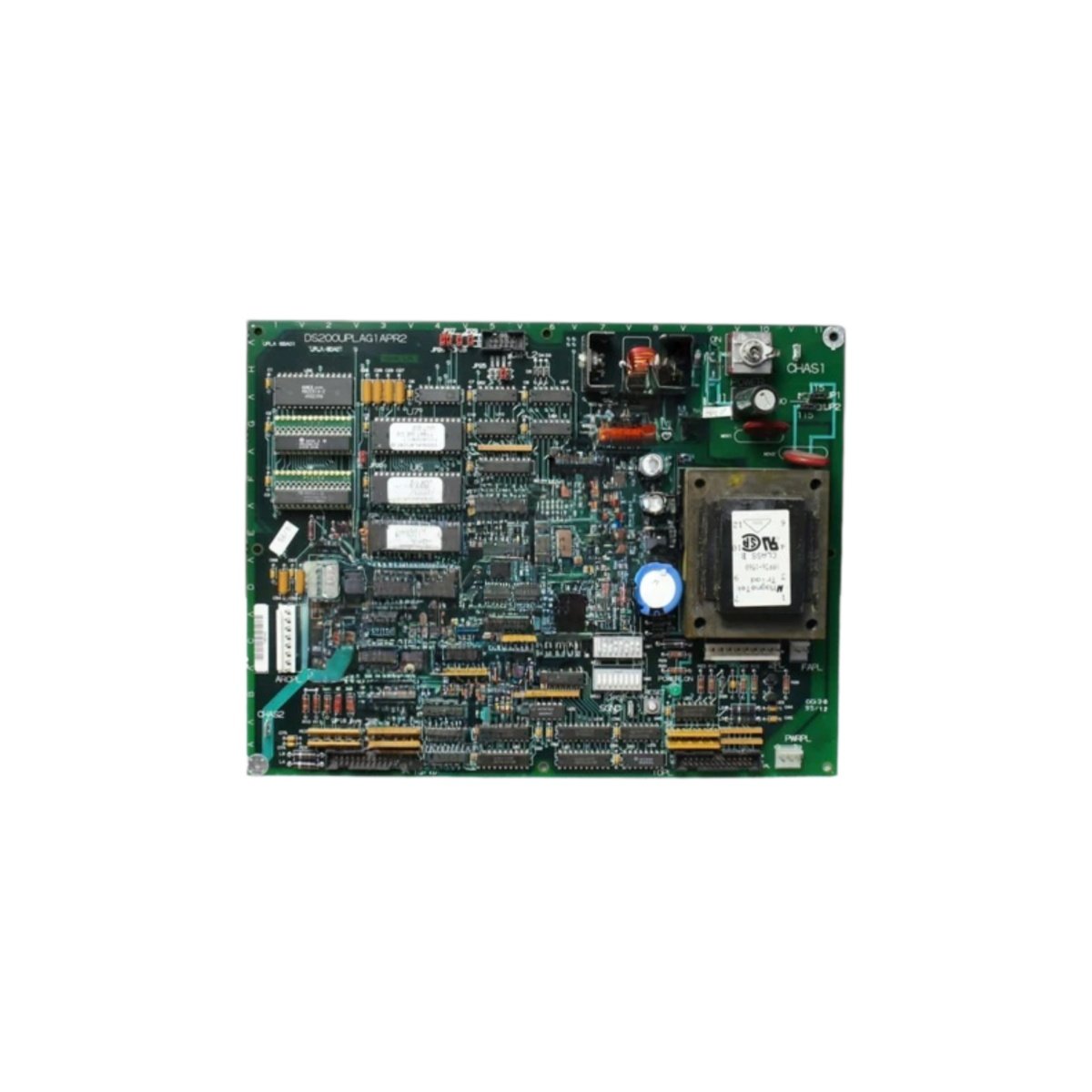

This DS200UPLAG1A DS200UPLAG1APR2 power supply board measures 9.7 inches in length. Its width reaches 6.4 inches with a thickness of 2.1 inches. The total weight comes to approximately 2.28 pounds. Manufacturers placed 268 discrete components on this six-layer PCB. These components include transformers, rectifiers, switching FETs, filter chokes, and protection circuits. Both DS200UPLAG1A and DS200UPLAG1APR2 share the same power supply design.
Input Flexibility and Output Specifications
DS200UPLAG1A DS200UPLAG1APR2 accepts either AC or DC input power sources. The AC input ranges from 120V to 240V at 47-63 Hz. The DC input accepts 125V nominal for backup applications. The board generates four regulated DC outputs for system use. The +5V rail delivers up to 15 amps for logic circuits. A +12V rail supplies 2.5 amps for analog and communication sections. The -12V rail provides 1 amp for operational amplifiers. A +24V rail delivers 3 amps for I/O and relay power. Total combined output power reaches 150 watts continuously.
Protection Features and Efficiency
DS200UPLAG1A DS200UPLAG1APR2 includes comprehensive protection for reliable operation. Overcurrent protection shuts down any output during overload conditions. Overvoltage protection prevents damage to downstream sensitive electronics. Short-circuit protection activates instantly during wiring faults. Efficiency reaches 83% typical at nominal load. Hold-up time measures 20 milliseconds at full rated load. Therefore, this board rides through brief power interruptions smoothly.
Energy Storage and Application Use
DS200UPLAG1A DS200UPLAG1APR2 integrates six 1500µF capacitors for bulk energy storage. Eight additional 470µF capacitors filter each output rail separately. Natural convection cooling eliminates the need for fans. You will find this board in GE UC2000 industrial computer systems. It powers the motherboard, I/O cards, and peripheral devices. The board operates reliably from 0°C to 55°C ambient temperature. For example, it supplies clean power for turbine control racks. Therefore, this power supply board delivers stable and robust energy for demanding GE automation systems.
Details
| Weight | 0.45 kg |
|---|---|
| Dimensions | 254 × 178 × 5 mm |
