Critical Safety Trip Management for Turbine Control

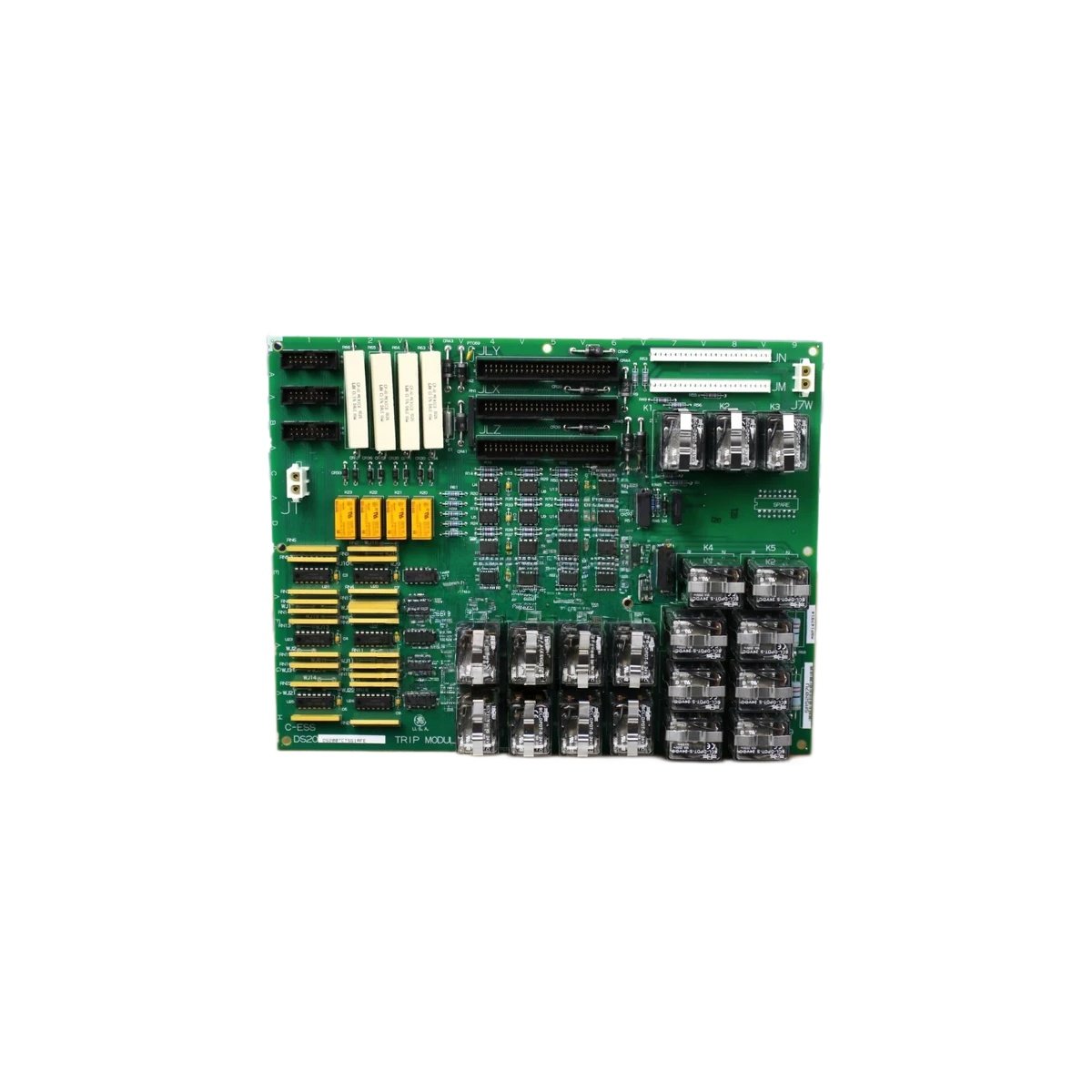

This trip board manages emergency shutdown functions for GE Mark V turbine systems. The GE DS200TCTSG1A monitors critical parameters and initiates safe shutdown sequences. The DS200TCTSG1AFE variant offers identical functionality for direct drop-in replacement. Dedicated circuits detect overspeed, overtemperature, and other dangerous conditions. Consequently, this board protects turbine equipment from catastrophic damage during fault events.
Trip Monitoring & Output Specifications
The GE DS200TCTSG1A DS200TCTSG1AFE continuously monitors multiple safety inputs from field sensors. It generates trip signals when any monitored parameter exceeds safe operating limits. Multiple comparator circuits provide redundant trip detection for fail-safe operation. A built‑in watchdog timer ensures the board responds even during processor faults. Therefore, this simplex trip board delivers essential safety protection for turbine control applications.
| Parameter | Detailed Specification |
|---|---|
| Series | Mark V |
| Trip Input Channels | 8 (independent, 24V DC) |
| Trip Outputs | 4 (solid-state, 24V DC, 1A) |
| Watchdog Timer | Yes (hardware-based) |
| Input Voltage | 24V DC from backplane |
| Power Consumption | 4W typical |
| Dimensions | 10.0 in x 7.0 in x 1.5 in (25.4 cm x 17.8 cm x 3.8 cm) |
| Weight | 1.0 lb (0.45 kg) |
| Component Count | Over 140 surface-mount devices |
| Main Connector | One 64-pin male DIN connector |
| Test Points | 6 (critical signal monitoring) |
| Energy Storage | 470 µF (hold-up capacitance) |
| Status LEDs | 4 (POWER, TRIP ACTIVE, WATCHDOG, FAULT) |
| Response Time | < 10 ms (trip detection to output) |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +70°C |
| Humidity Range | 20% to 95% RH (non-condensing) |
Installation & System Integration
You insert the GE DS200TCTSG1A DS200TCTSG1AFE into a standard Mark V rack slot. The 64-pin DIN connector mates directly with the backplane for signal routing. Connect your safety sensors to the dedicated trip input terminals. The board automatically synchronizes with the main processor after power-up. Consequently, the trip board initiates a safe shutdown within milliseconds of a fault condition.
Operational Advantages & Fail-Safe Protection
The GE DS200TCTSG1A DS200TCTSG1AFE provides redundant trip detection for critical turbine parameters. A green POWER LED confirms the board receives correct operating voltage. A red TRIP ACTIVE LED illuminates when the board initiates an emergency shutdown. A yellow FAULT LED signals internal hardware issues requiring board replacement. Therefore, this simplex trip board delivers essential safety protection for Mark V turbine control systems.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
