Critical Reset and Overflow Protection for Turbine Control

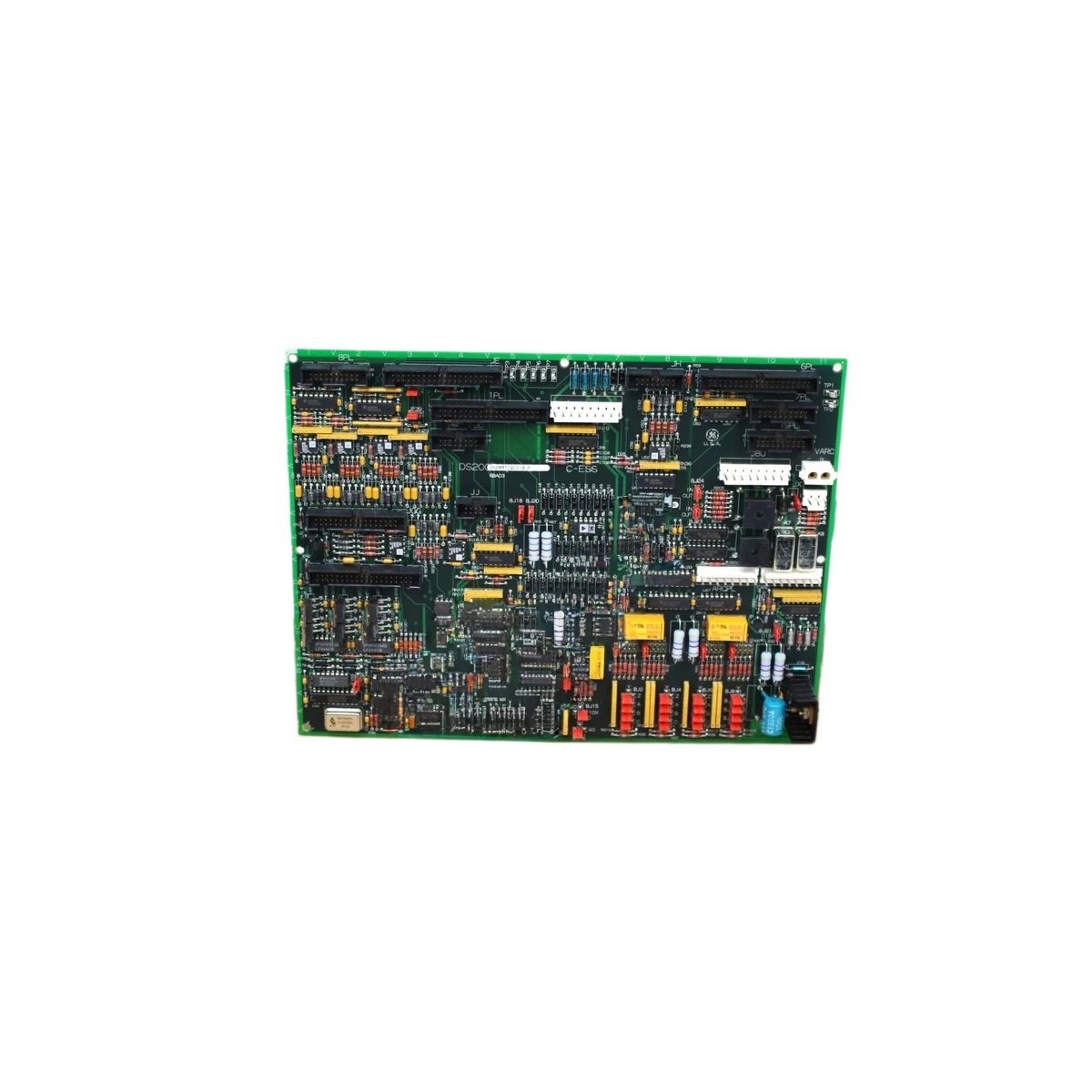

This board manages reset functions and overflow protection for Mark V turbine systems. The GE DS200TCQCG1B monitors system conditions and triggers reset sequences when necessary. The DS200TCQCG1BJF variant offers identical functionality for direct drop-in replacement. Dedicated circuits detect overflow conditions in turbine control calculations. Consequently, this board prevents unsafe operating states during system faults.

Overflow Detection & Reset Specifications

The GE DS200TCQCG1B DS200TCQCG1BJF continuously monitors critical system parameters for overflow conditions. It generates a reset signal when internal calculations exceed safe operating ranges. Multiple comparator circuits provide redundant overflow detection for fail-safe operation. A watchdog timer automatically resets the board if it loses communication with the main processor. Therefore, this RST board ensures reliable turbine control under all operating conditions.

Installation & System Integration

You insert the GE DS200TCQCG1B DS200TCQCG1BJF into a standard Mark V rack slot. The 64-pin DIN connector mates directly with the backplane for signal routing. The board automatically synchronizes with the main processor after power-up. A watchdog timer monitors communication integrity continuously. Consequently, the RST board initiates a safe system reset if communication fails.

Operational Advantages & Fail-Safe Protection

The GE DS200TCQCG1B DS200TCQCG1BJF provides redundant overflow detection for critical turbine parameters. A green POWER LED confirms the board receives correct backplane voltage. A yellow RST ACTIVE LED illuminates when the board triggers a reset sequence. A red FAULT LED signals internal hardware issues requiring board replacement. Therefore, this RST overflow board delivers essential protection for Mark V turbine control systems.
