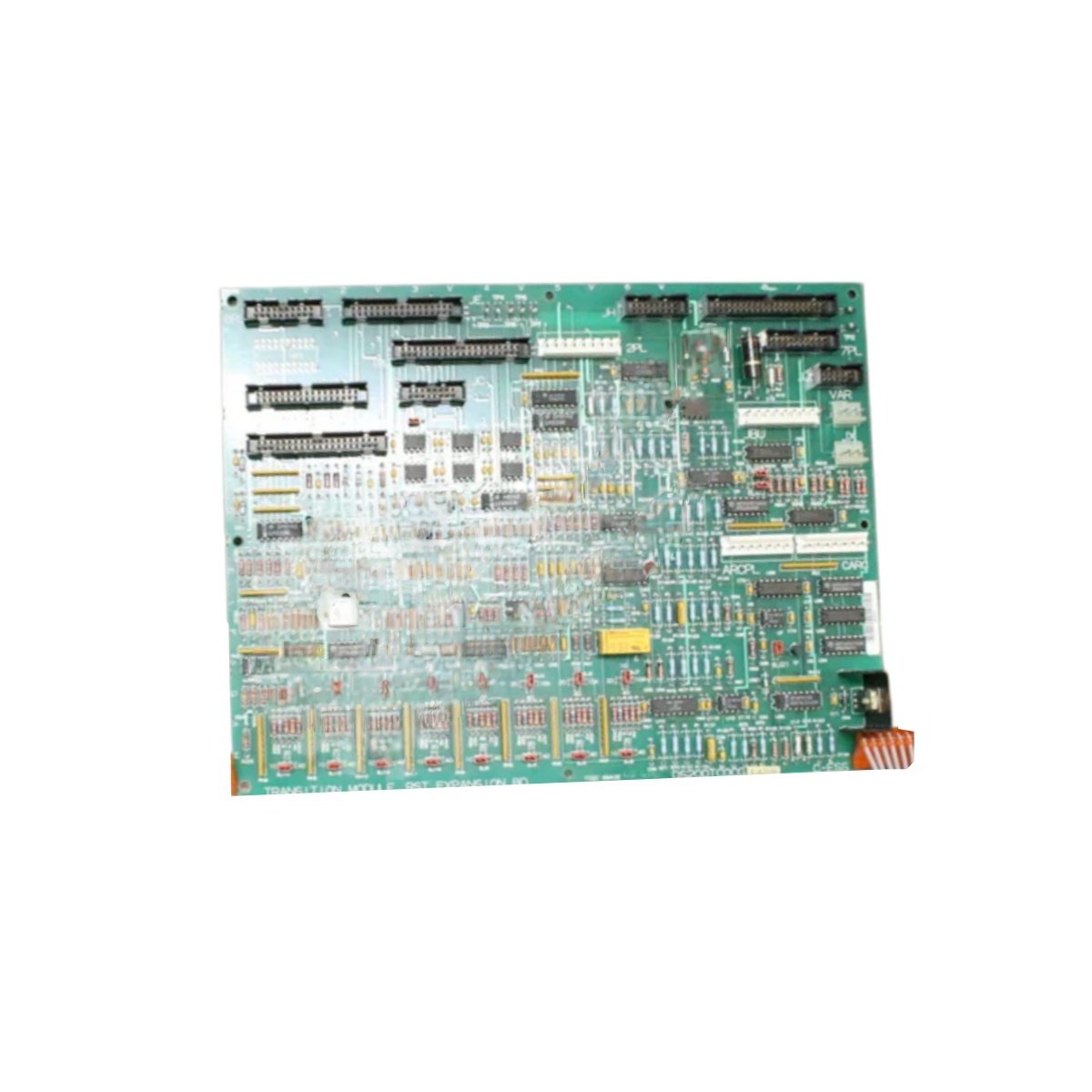

The GE DS200TCQCG1A DS200TCQCG1ADB manages reset and overflow functions in Mark V turbine control systems. You can install this board into the main turbine control cabinet. It monitors system status and triggers protective actions during fault conditions. This board suits gas and steam turbine applications.

Technical Specifications and Hardware Layout

The GE DS200TCQCG1A DS200TCQCG1ADB measures 280 mm in height. Its width reaches 185 mm, and the depth equals 30 mm. The GE DS200TCQCG1A DS200TCQCG1ADB weighs approximately 0.48 kilograms. A single multilayer PCB holds all logic and monitoring circuits. The board contains no energy storage capacitors or batteries. Two 50-pin ribbon connectors provide system interface connections. Four test points allow voltage monitoring with multimeter probes. Ten status LEDs display board operating conditions.

Functional Capabilities and Performance

The GE DS200TCQCG1A DS200TCQCG1ADB monitors up to 16 overflow status inputs. It generates reset signals for turbine control logic sequences. This board detects system faults and activates alarm outputs immediately. Consequently, it ensures safe turbine operation during abnormal conditions. The GE DS200TCQCG1A DS200TCQCG1ADB includes programmable time delays for reset sequencing. It communicates with the main Mark V controller through the backplane. The board stores configuration data in onboard EEPROM memory.

Installation and Diagnostic Features

You must insert the GE DS200TCQCG1A DS200TCQCG1ADB firmly into a dedicated Mark V rack slot. Transitioning to testing, use the four test points for voltage verification. Ten front LEDs show power, reset active, and fault status clearly. For troubleshooting, refer to the LED pattern in the service manual. Always power off the system before removing or inserting the board. The operating temperature range spans from -20°C to +55°C reliably.
