Engineered for Mark V Speedtronic Firmware Storage

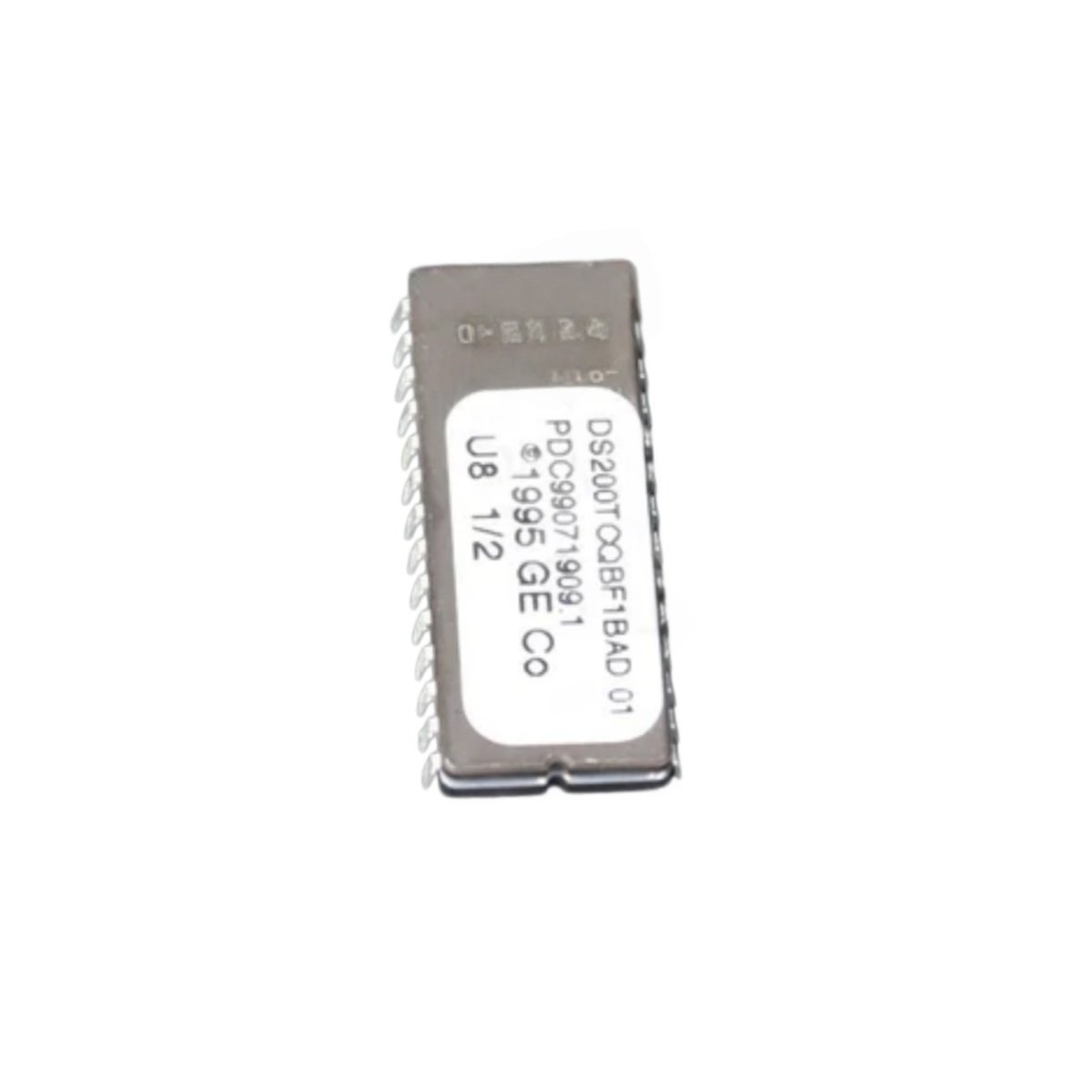

This prom set holds all operational firmware for the control system. It provides non-volatile program memory for the GE DS200TCQBF1B DS200TCQBF1BAD kit. You will find this component set exclusively in the Mark V turbine control series. Unlike single-chip solutions, this version uses the “BAD” functional revision. It contains eight separate EPROM chips for distributed firmware storage.

Technical Specifications & Physical Dimensions

We designed this prom set for reliable long-term data retention. The table below presents all verified technical specifications.

Functional Architecture and Memory Layout

This prom set plugs directly into designated sockets on the control board. It uses eight separate address ranges for firmware organization. You cannot mix chips from different revision sets. Moreover, the set includes a printed label map for correct orientation. This component identifies each chip’s position in the memory bank. Consequently, the board boots correctly when you install all chips properly.

Installation and Operational Guidelines

The GE DS200TCQBF1B DS200TCQBF1BAD retains data for over 10 years without power. It requires a UV eraser for reprogramming. You must align pin 1 of each chip with the socket indicator. Always use an anti-static wrist strap during installation. This practice prevents electrostatic damage to the delicate EPROM windows. Furthermore, the set supports firmware verification via checksum comparison. This feature confirms all eight chips contain valid data.

Physical Characteristics and Environmental Limits

This prom set has standard 0.6-inch wide DIP packaging. Each chip measures 36mm x 14mm x 4mm. You should store the set in opaque foam to prevent UV exposure. The quartz window on each chip allows for erasure under UV light. In addition, the chips maintain stable operation between 0°C and 70°C ambient temperature. You can store this set safely between -65°C and 150°C.

​
