Key Technical Specifications

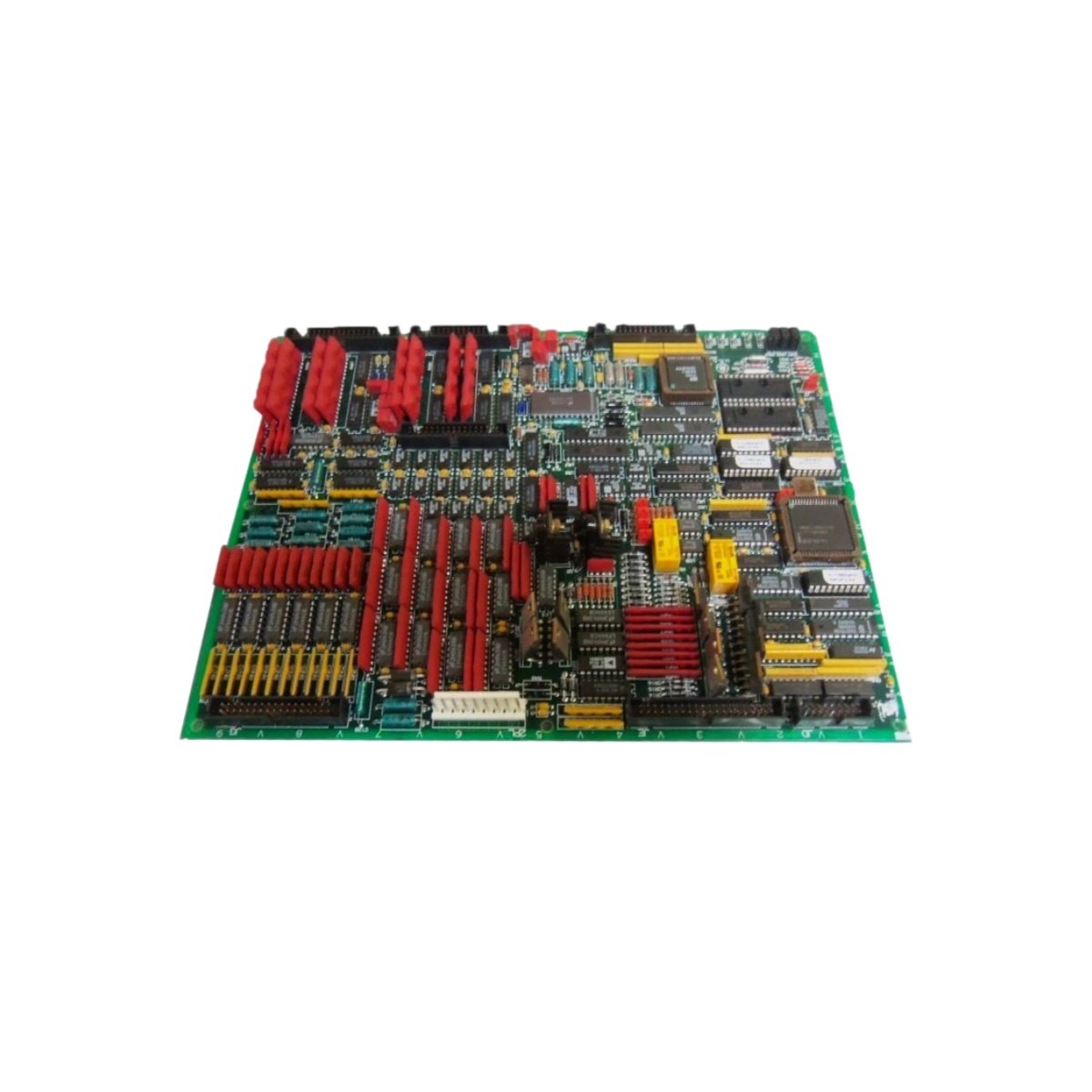

This GE DS200TCQAG1BHF board operates from a 24V DC power supply. It terminates 16 analog RST signals for turbine control systems. The unit measures 22 cm in length, 17 cm in width, and 4.5 cm in height. Its total weight reaches 0.7 kg without any packaging materials.

The GE DS200TCQAG1BHF includes 16 analog input channels with signal conditioning. Additionally, it features one 50-pin ribbon connector for host interface. A single 6-pin terminal block connects the DC power input. The board contains 16 analog conditioners, 1 FPGA, 8 voltage regulators, 24 resistors, and 18 capacitors.

GE DS200TCQAG1BHF stores energy using one electrolytic capacitor. This capacitor provides 100 µF at 35V rating for input filtering. Consequently, the board maintains stable readings during 20 millisecond power fluctuations. Therefore, measurement accuracy remains high in noisy industrial environments.

Design and Integration

This RST analog termination board uses four-layer PCB construction with guarded analog traces for noise rejection. Consequently, the GE DS200TCQAG1BHF operates reliably from -10°C to +55°C ambient temperature.

For installation, you need M3 screws for the four mounting holes. The board draws 150 mA typical current from the 24V DC supply. Each input channel includes software selectable gain settings. We recommend using shielded twisted-pair cables for all sensor connections.

Practical Application

This termination board connects RST analog signals to a turbine control system. It terminates signals from speed, temperature, and pressure sensors. The GE DS200TCQAG1BHF then routes conditioned analog signals to the host controller. Therefore, it serves as the analog front-end for GE turbine control systems.
