Core System Integration and Communication Hub

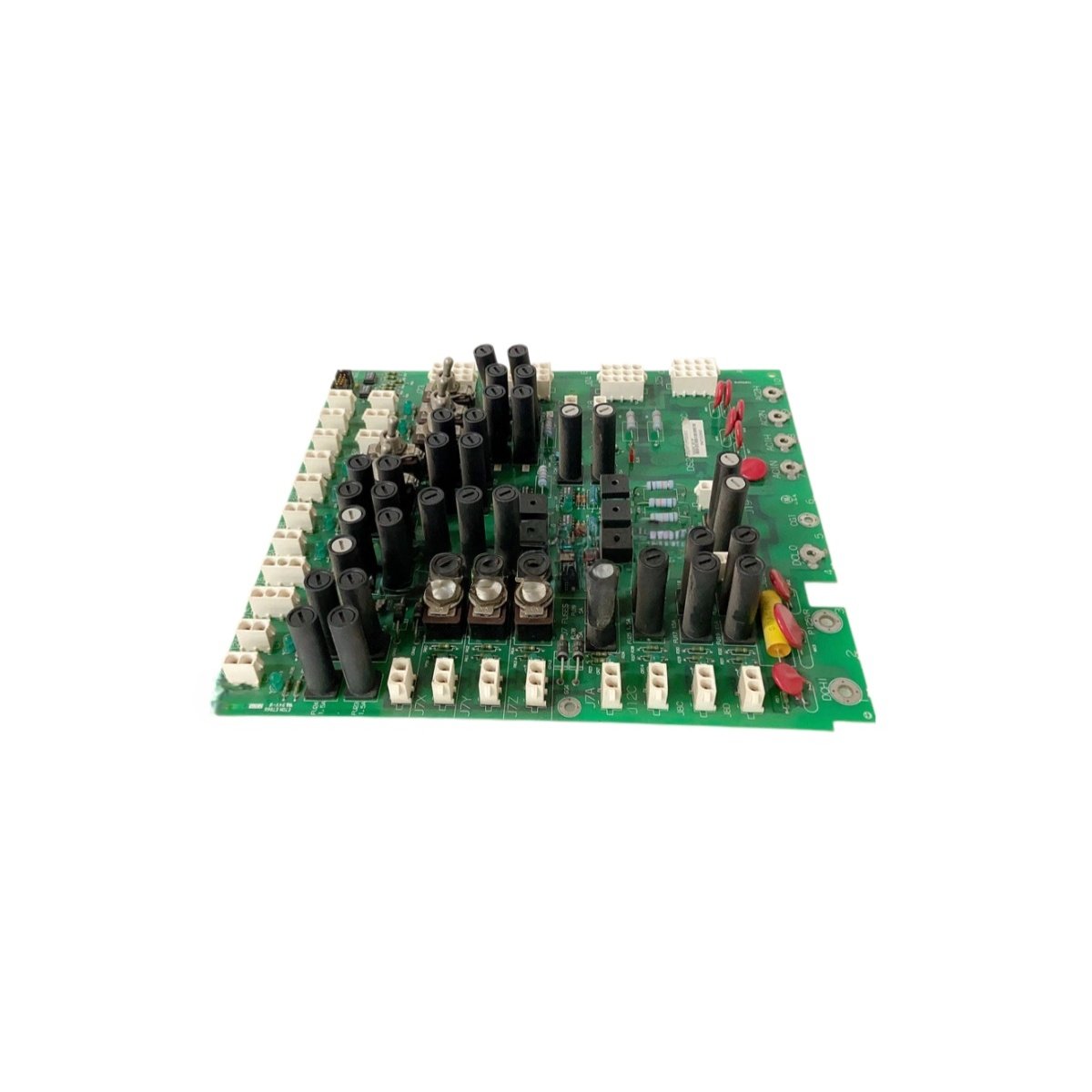

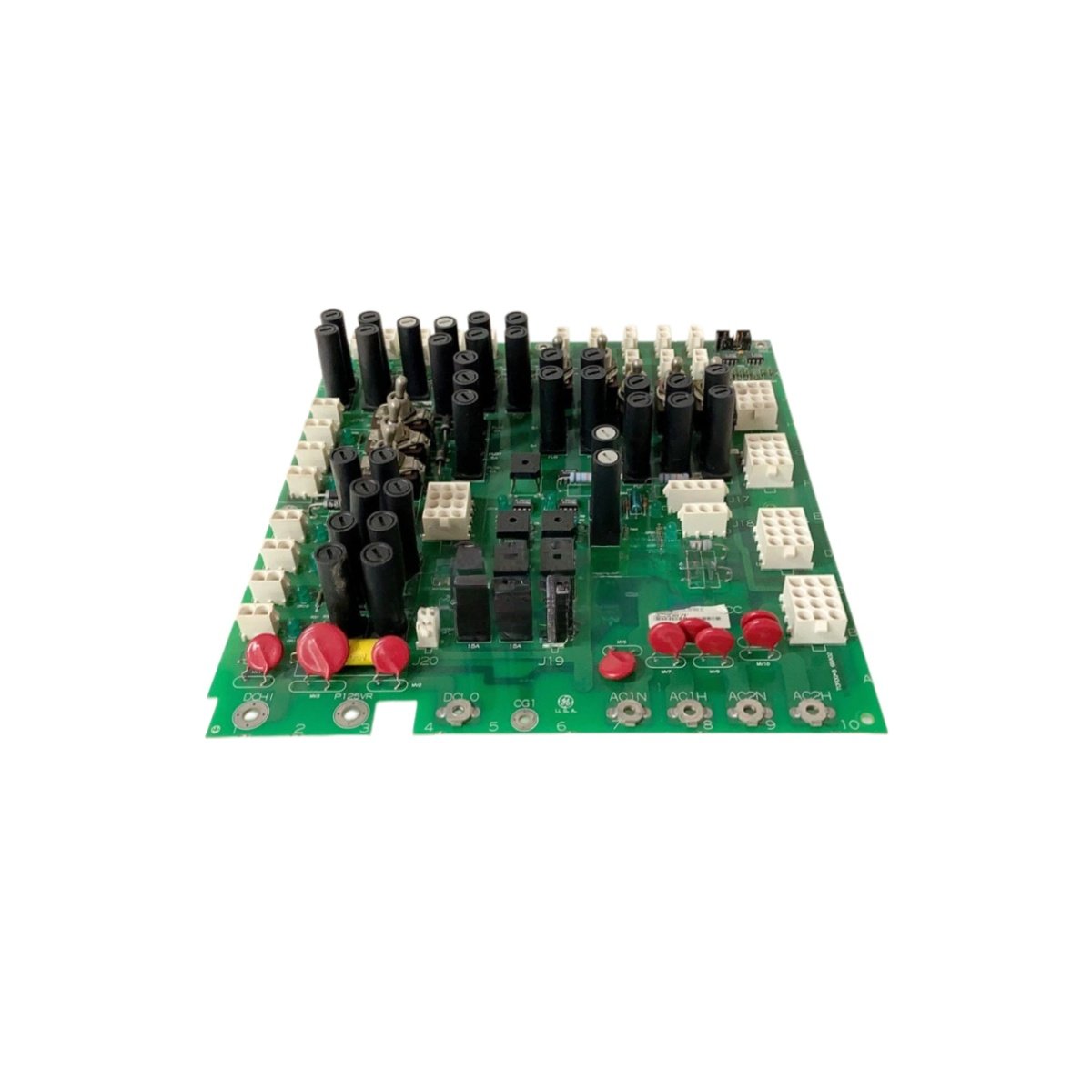

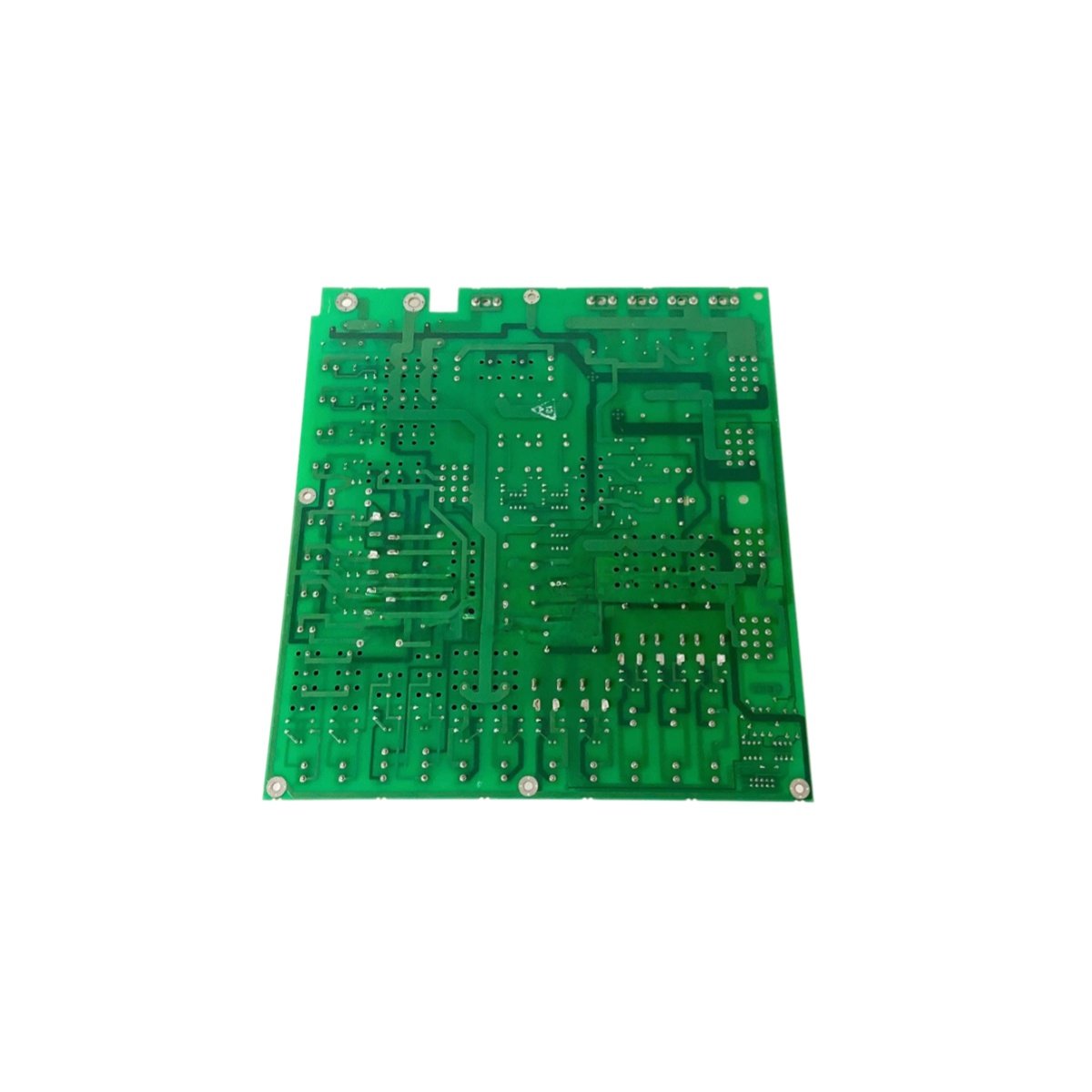

The GE DS200TCPSG2BEC serves as the central motherboard within the Mark V Turbine Control System. This board provides the essential backplane connections for processor, I/O, and communication modules. It distributes power and data signals to all other boards within the same Mark V rack. Consequently, it functions as the structural and electrical backbone of the entire turbine control assembly.

Signal Routing and Power Distribution

This motherboard routes critical control signals between various functional modules installed in the rack. It distributes properly regulated DC power from the supply module to all connected cards. The DS200TCPSG2BEC features dedicated traces and slots designed for specific board types to ensure correct system configuration. Furthermore, its multilayer PCB construction isolates sensitive signal paths from noisy power lines.

Technical Specifications and Hardware Details

Engineers designed this motherboard for fault-tolerant operation in high-reliability power generation environments. Its specifications define slot assignments, backplane bus speeds, and power delivery ratings. The following table details its primary functional and identification parameters.

Application in Turbine Control Cabinets

Technicians install this motherboard into the turbine control cabinet chassis before adding any other modules. It determines the rack’s physical slot configuration and electrical capabilities for the entire system. The GE DS200TCPSG2BEC is an essential component for any Mark V repair, rebuild, or maintenance project. Therefore, its integrity directly impacts the reliability and performance of the turbine control system.
