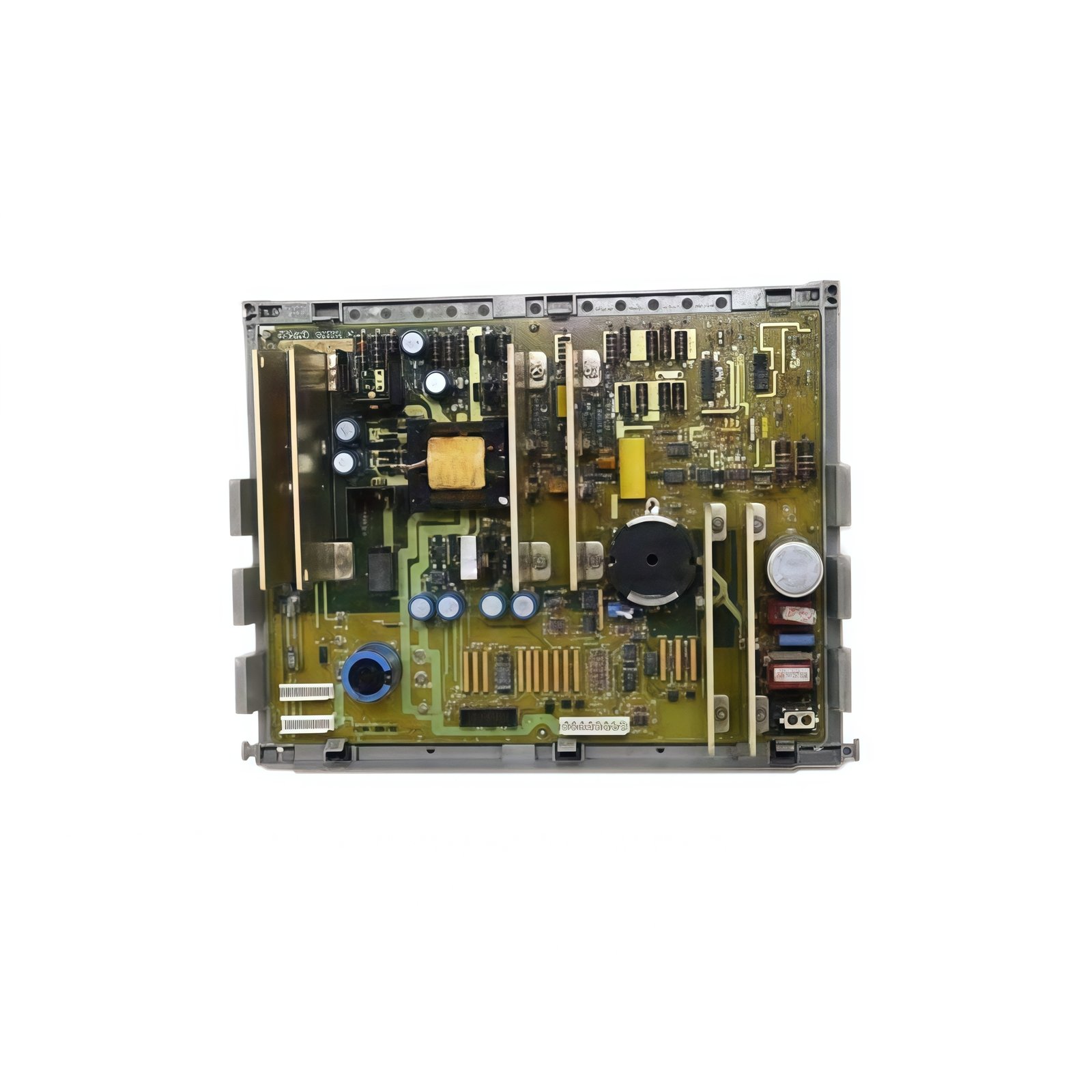

The GE DS200TCPSG1A DS200TCPSG1APE conditions DC input power for Mark V turbine control systems. You can install this board into the main turbine control cabinet. It filters voltage spikes and provides stable outputs for system circuits. This board suits gas and steam turbine applications.

Technical Specifications and Hardware Layout

The GE DS200TCPSG1A DS200TCPSG1APE measures 280 mm in height. Its width reaches 185 mm, and the depth equals 30 mm. The GE DS200TCPSG1A DS200TCPSG1APE weighs approximately 0.46 kilograms. A single multilayer PCB holds all power conditioning and protection circuits. The board contains two electrolytic capacitors for basic energy storage. These capacitors provide 12 milliseconds of hold-up time during input dips. Two 50-pin ribbon connectors provide system interface connections. Four test points allow voltage monitoring with a multimeter.

Power Specifications and Performance

The GE DS200TCPSG1A DS200TCPSG1APE accepts input voltages from 18 V DC to 32 V DC. It delivers filtered DC outputs at 5 V and 24 V for backplane circuits. Each output includes short-circuit and overvoltage protection features. Consequently, this board ensures clean power for sensitive turbine control electronics. The board provides reverse polarity protection for input connections. Efficiency reaches 84 percent under typical operating conditions. Four LEDs indicate input power, output status, and fault conditions.

Installation and Diagnostic Features

You must insert the GE DS200TCPSG1A DS200TCPSG1APE firmly into a dedicated Mark V rack slot. Transitioning to testing, use the four test points for voltage verification. Four front LEDs show power good, input present, and fault status. For troubleshooting, use a multimeter at the test points. Always power off the system before removing or inserting the board. The operating temperature range spans from -20°C to +55°C reliably.
