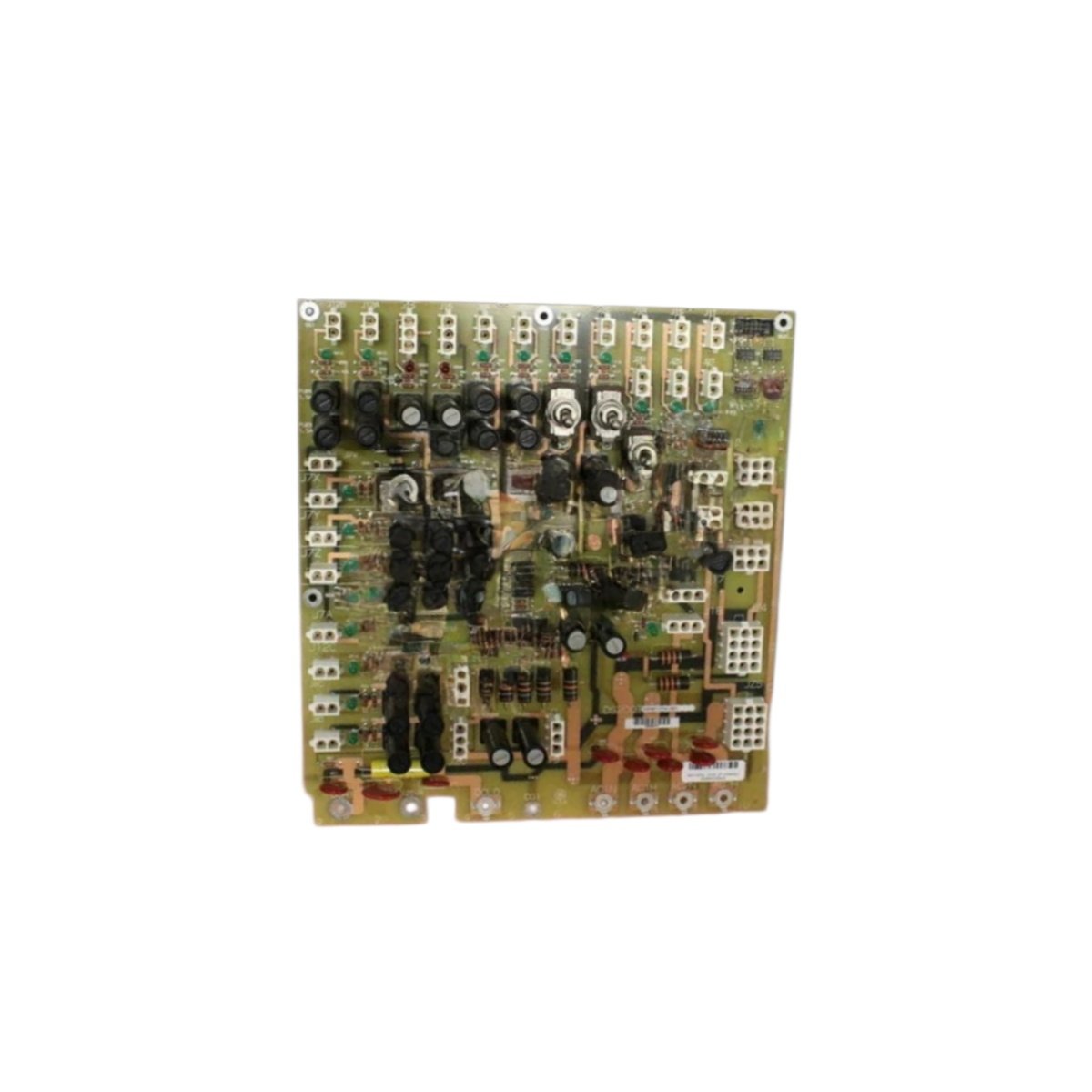

This board manages AC and DC power for turbine control systems. The DS200TCPDG1B DS200TCPDG1BDC provides stable voltage distribution across multiple drive components. Both units belong to the Mark V series platform. Engineers trust these modules for their robust energy storage capacity. Each board measures 12.5 inches in length. The width reaches 8.2 inches. Weight sits at approximately 2.4 kilograms.
Technical Specifications for DS200TCPDG1B DS200TCPDG1BDC
The DS200TCPDG1B DS200TCPDG1BDC integrates three separate terminal blocks for field wiring. Each board contains two high-current fuses for overload protection. These fuses support 15 amperes continuously per channel. Energy storage relies on a 4700µF capacitor bank. This bank smooths input voltage fluctuations effectively. The module operates with a nominal 120V AC input. Output channels deliver 24V DC for auxiliary circuits. Four diagnostic LED indicators sit on the front panel. These lights show real-time power status and fault conditions.
Key Features Table
| Parameter | Specification |
|---|---|
| Full Models | DS200TCPDG1B DS200TCPDG1BDC |
| Category | Power Distribution Board |
| Length | 12.5 inches (317.5 mm) |
| Width | 8.2 inches (208.3 mm) |
| Weight | 2.4 kg (5.3 lbs) |
| Input Voltage | 120V AC nominal |
| Output Voltage | 24V DC auxiliary |
| Fuse Rating | 15A per channel (two fuses total) |
| Energy Storage | 4700µF capacitor bank |
| Terminal Blocks | 3 separate interfaces |
| LED Indicators | 4 diagnostic status lights |
The circuit board uses high-grade FR4 material for electrical insulation. Moreover, it withstands ambient temperatures from -30°C to 65°C. You can mount this unit directly onto the drive rack without additional brackets. Furthermore, the PCB layout prevents short circuits between adjacent phases. Replacement requires no special tools for installation. Always verify firmware compatibility before swapping either unit. This component significantly reduces unplanned system downtime. Consequently, it improves overall gas or steam turbine efficiency.
Details
| Weight | 0.45 kg |
|---|---|
| Dimensions | 170 × 145 × 65 mm |
