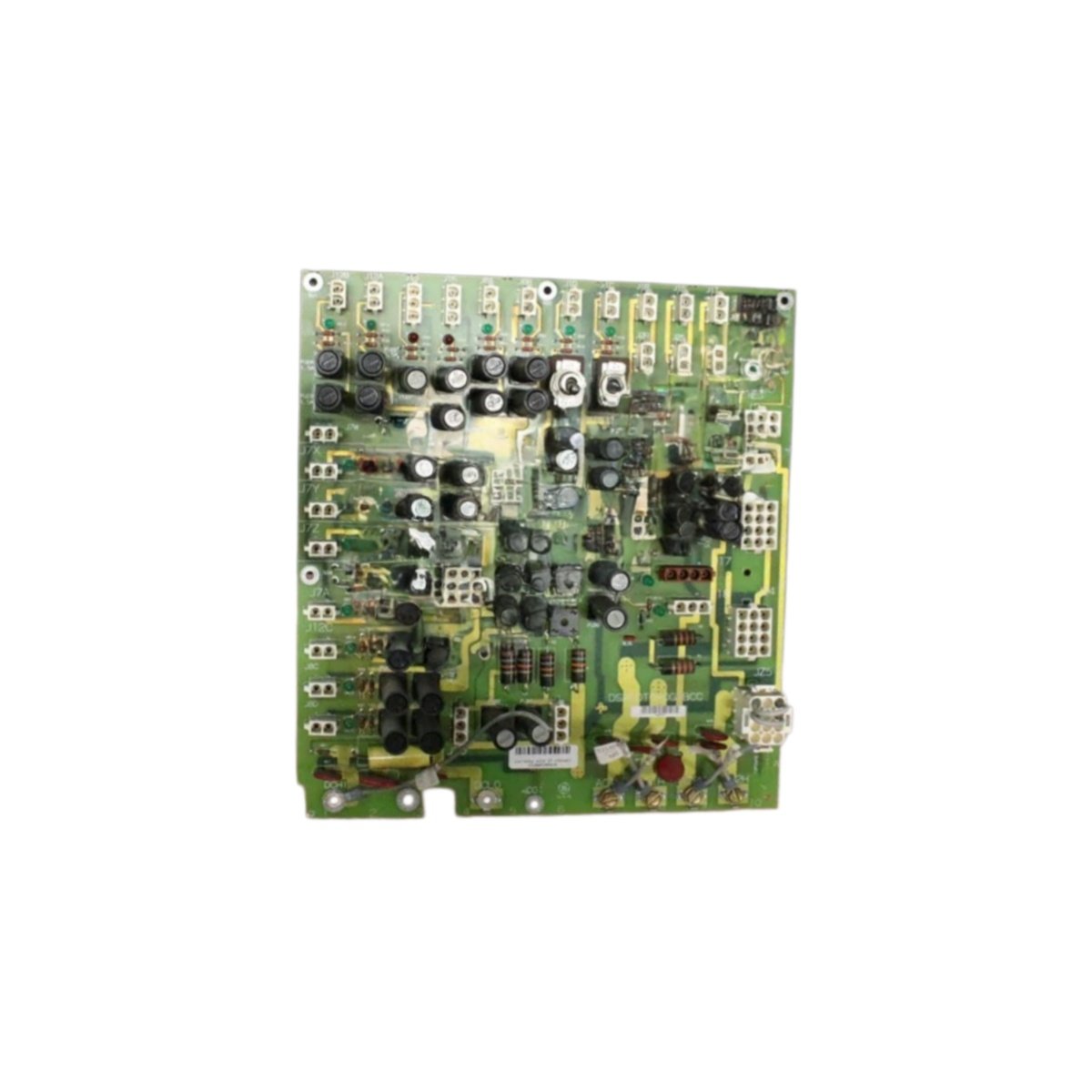

The GE DS200TCPDG1B DS200TCPDG1BCC routes DC power to multiple system boards in Mark V turbine controls. You can install this board into the main turbine control cabinet. It receives input power and distributes it to various circuits. This board suits gas and steam turbine applications.

Technical Specifications and Hardware Layout

The GE DS200TCPDG1B DS200TCPDG1BCC measures 280 mm in height. Its width reaches 185 mm, and the depth equals 30 mm. The GE DS200TCPDG1B DS200TCPDG1BCC weighs approximately 0.43 kilograms. A single multilayer PCB holds all power distribution and protection circuits. The board contains no energy storage capacitors or batteries. Two 50-pin ribbon connectors provide input power and output connections. Six test points allow voltage monitoring with a multimeter. Four status LEDs display power and fault conditions.

Power Distribution Specifications

The GE DS200TCPDG1B DS200TCPDG1BCC accepts 24 V DC and 5 V DC input power. It distributes these voltages to up to 14 output circuits. Each output includes a resettable polymer fuse for overload protection. Consequently, this board prevents a single fault from affecting other circuits. The board provides individual LED indicators for each output circuit. Voltage drop across the distribution traces stays below 0.1 V at full load. The board includes diagnostic test points for every major power rail.

Installation and Diagnostic Features

You must insert the GE DS200TCPDG1B DS200TCPDG1BCC firmly into a dedicated Mark V rack slot. Transitioning to testing, use the six test points for voltage verification. Four front LEDs show input power and output status clearly. For troubleshooting, check individual fuses with a multimeter. Always power off the system before removing or inserting the board. The operating temperature range spans from -20°C to +55°C reliably.
