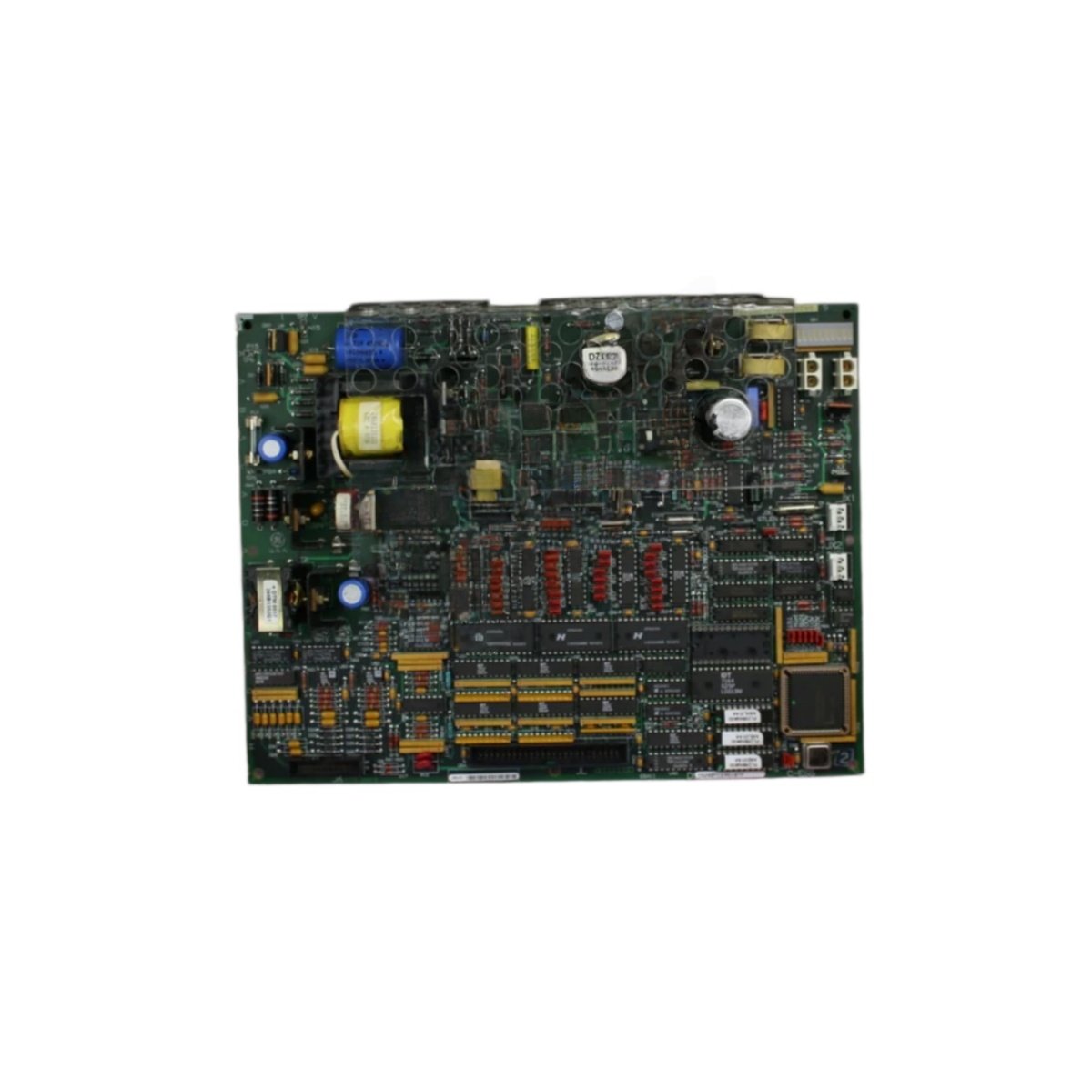

The GE DS200TCEAG1B DS200TCEAG1BTF provides critical overspeed protection for Mark V turbine systems. This emergency board monitors turbine speed and initiates shutdown when exceeding safe limits. It features dual speed inputs for redundant overspeed detection. Weighing only 0.32 kg, the GE DS200TCEAG1B DS200TCEAG1BTF mounts inside Mark V control cabinets. Its dimensions measure 220 mm x 130 mm x 28 mm.
Speed Monitoring and Protection Features
The GE DS200TCEAG1B DS200TCEAG1BTF accepts magnetic pickup and proximity sensor inputs for speed measurement. This board provides two independent overspeed trip channels for redundant protection. Each channel features programmable trip setpoints from 100 RPM to 20,000 RPM. Moreover, the GE DS200TCEAG1B DS200TCEAG1BTF includes built-in self-test for continuous health monitoring. Consequently, you can verify protection functionality without taking the turbine offline.
Output and Diagnostic Features
The GE DS200TCEAG1B DS200TCEAG1BTF provides dedicated trip relay outputs for fuel and steam valve control. This board includes LED indicators for power, overspeed, and channel status. It features test points for speed signal verification during maintenance. The GE DS200TCEAG1B DS200TCEAG1BTF draws 200 mA from the 24 V DC power supply. Therefore, it operates reliably even during emergency power conditions.
Technical Specifications Table
Below are the complete technical parameters for engineers and procurement teams:
| Parameter | Specification |
|---|---|
| Full Product Name | GE DS200TCEAG1B DS200TCEAG1BTF |
| Product Category | Mark V Emergency Overspeed Board |
| Number of Speed Inputs | 2 (redundant) |
| Input Type | Magnetic pickup or proximity sensor |
| Input Frequency Range | 10 Hz to 20 kHz |
| Input Voltage Range | 2 V to 60 V peak-to-peak |
| Speed Measurement Range | 100 RPM to 20,000 RPM (configurable) |
| Speed Accuracy | ±0.1% of reading |
| Number of Trip Channels | 2 (independent) |
| Trip Response Time | < 10 ms |
| Programmable Setpoints | Yes (high-high and high-low) |
| Hysteresis | Programmable (1% to 10%) |
| Trip Relay Outputs | 2 (Form C, 24 V DC 2 A) |
| Trip Relay Logic | De-energize to trip (fail-safe) |
| Built-in Self-Test | Yes (manual and automatic) |
| Self-Test Interval | Programmable (daily to monthly) |
| LED Indicators | Power (green), OK (green), Trip (red), Channel A (yellow), Channel B (yellow) |
| Test Points | 6 (speed signals, reference voltages) |
| Connector Types | 20-pin header, 10-pin header |
| Current Consumption (24V DC) | 200 mA |
| Power Dissipation | 4.8 W maximum |
| Energy Storage | No battery (non-volatile memory) |
| Number of Components | 1 PCB + 2 relay outputs + 5 LEDs + 6 test points |
| PCB Material | FR-4 epoxy glass |
| Number of Layers | 6-layer board |
| Net Weight | 0.32 kg (320 grams) |
| Gross Weight (packaged) | 440 grams |
| Dimensions (L x W x H) | 220 mm x 130 mm x 28 mm |
| Mounting Type | 4 x M4 screws (panel mount) |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Tolerance | 5% to 95% non-condensing |
| Certifications | CE, UL, CSA, SIL 2 capable |
Installation and Application Details
The GE DS200TCEAG1B DS200TCEAG1BTF mounts inside the Mark V control cabinet using four M4 screws. Connect speed sensors to the designated input terminals for each channel. Wire the trip relay outputs to the fuel and steam valve safety circuits. The GE DS200TCEAG1B DS200TCEAG1BTF requires configuration software for setpoint programming. Perform self-tests regularly to verify proper overspeed protection. This emergency board suits GE Mark V turbine control systems for power generation applications. It also works perfectly for steam turbine, gas turbine, and compressor overspeed protection. Thus, the GE DS200TCEAG1B DS200TCEAG1BTF provides critical safety protection for turbine control systems.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
