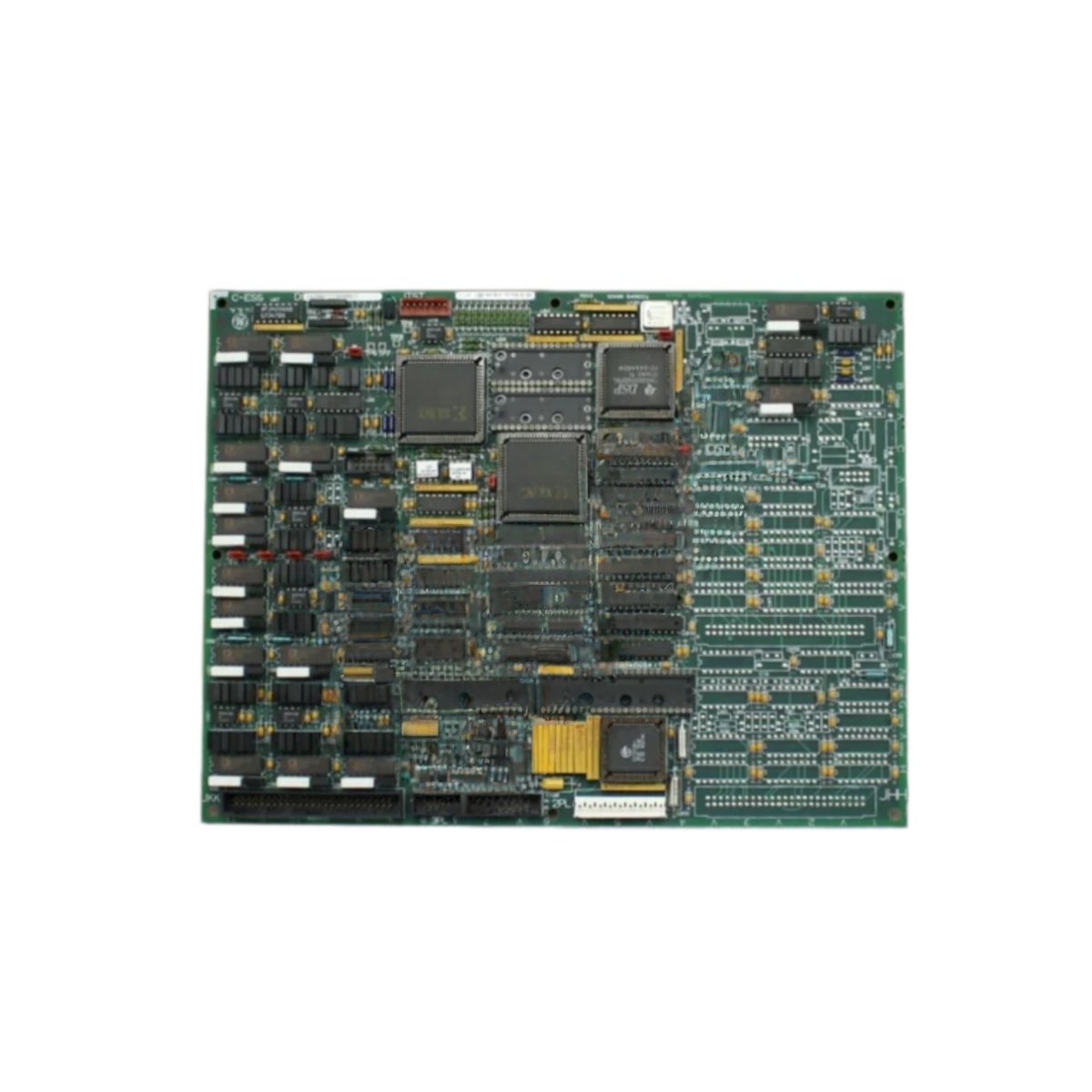

This I/O TC2000 analog board processes analog signals for GE drive control systems. It provides high-density analog input and output channels for process monitoring. The unit mounts inside the drive cabinet as an I/O expansion card.
Technical specifications
| Parameter | Specification |
|---|---|
| Brand | GE Energy |
| Model 1 | DS200TCCBG8B |
| Model 2 | DS200TCCBG8BED |
| Product Family | TC2000 / Drive Control |
| Category | I/O TC2000 Analog Board |
| PCB Layer Count | 6 layers |
| Base Material | High-Tg FR-4 |
| Analog Inputs | 8 (eight) channels |
| Input Types | 0-10V, ±10V, 0-20mA, 4-20mA |
| Input Resolution | 14 bits |
| Input Accuracy | ±0.1% of full scale |
| Analog Outputs | 4 (four) channels |
| Output Types | 0-10V or 4-20mA |
| Output Resolution | 12 bits |
| Output Accuracy | ±0.2% of full scale |
| Update Rate | 5 ms (inputs), 2 ms (outputs) |
| Isolation | 1500V RMS (channel to backplane) |
| Component Count | Approximately 145 components |
| Integrated Circuits | 18 ICs (ADC, DAC, op-amps, optocouplers) |
| Connector Types | 3 x 20-pin headers, 1 x terminal block |
| Power Supply | 24V DC external |
| Current Consumption | 220 mA typical |
| Status Indicators | 3 x LEDs (PWR, RUN, FLT) |
| Test Points | 8 gold-plated test points |
| Energy Storage | 8 x electrolytic capacitors (47 µF each) |
| Dimensions (L x W) | Approx. 25 cm x 17 cm |
| Thickness | Approx. 1.6 mm |
| Weight | Approx. 0.41 kg |
| Operating Temperature | 0°C to 55°C |
| Mounting | 4 x screw holes (M4) |
Detailed Technical Analysis
This analog board provides eight analog input channels for sensor monitoring. It also offers four analog output channels for actuator control. The inputs accept voltage or current signals with 14-bit resolution. The outputs deliver 12-bit resolution for precise control signals.
Now let us examine its accuracy characteristics. The board achieves ±0.1% accuracy on all input channels. The outputs maintain ±0.2% accuracy across the full range. Approximately 145 components populate both sides of this 6-layer PCB. Eighteen integrated circuits include ADC, DAC, and isolation amplifiers.
This analog board draws 220 milliamps from a 24V DC external supply. Three LEDs show power, run, and fault status for diagnostics. Eight gold-plated test points allow signal verification during commissioning. Eight electrolytic capacitors filter the power supply for stable operation. The GE DS200TCCBG8B DS200TCCBG8BED provides 1500V RMS isolation.
Installation and Connection Guidelines
You mount this board using four M4 screws with insulating standoffs. Connect the 24V DC power supply to the designated terminal block. Wire each sensor to its corresponding input channel. Wire each actuator to its corresponding output channel.
Select input and output ranges using jumper blocks on the board. Use shielded twisted-pair cables for all analog signal connections. The board updates inputs every 5 milliseconds for fast response. Always power down the drive before inserting or removing this board.
Practical Applications
Engineers use this analog board for TC2000 drive I/O expansion and repair. It handles process variables like pressure, temperature, and flow. This component also works in legacy drive upgrade projects. Its 12 total channels suit medium-sized analog I/O requirements.
Summary of Features
To conclude, this analog board provides 8 inputs and 4 outputs with 14/12-bit resolution. It weighs 0.41 kilograms and draws 220 milliamps at 24V. Choose DS200TCCBG8B DS200TCCBG8BED for reliable analog I/O in TC2000 drive systems.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
