Technical Specifications
| Parameter | Value |
|---|---|
| Brand | GE |
| Model | DS200TCCBG1B DS200TCCBG1BED |
| Category | Extended PC Analog Board |
| Weight | 1.42 lbs (0.64 kg) |
| Dimensions | 8.7 x 6.2 x 1.3 inches |
| PCB Layers | 6-layer board |
| Component Count | 256 discrete components |
| Analog Input Channels | 16 differential inputs |
| Input Voltage Range | ±10V, 0-10V, 0-5V |
| Input Current Range | 4-20 mA, 0-20 mA |
| Resolution | 14 bits |
| Conversion Time | 2 ms per channel |
| Analog Output Channels | 8 single-ended outputs |
| Output Voltage Range | 0-10V, ±10V |
| Output Current Range | 4-20 mA |
| Resolution | 13 bits |
| Accuracy | ±0.2% of full scale |
| Energy Storage | 6 x 220µF, 8 x 47µF |
| Operating Temperature | 0°C to 55°C |
Physical Construction and Component Layout

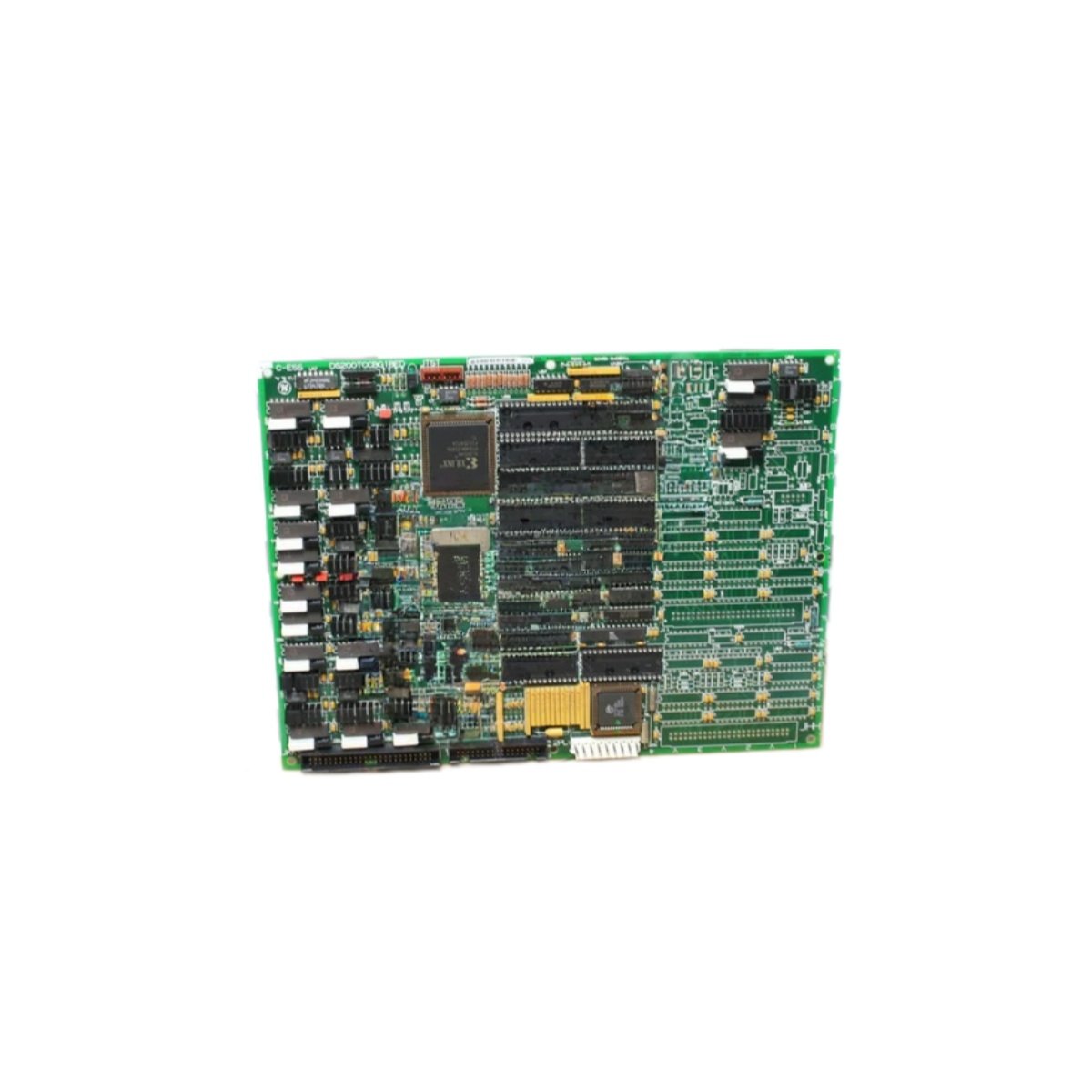

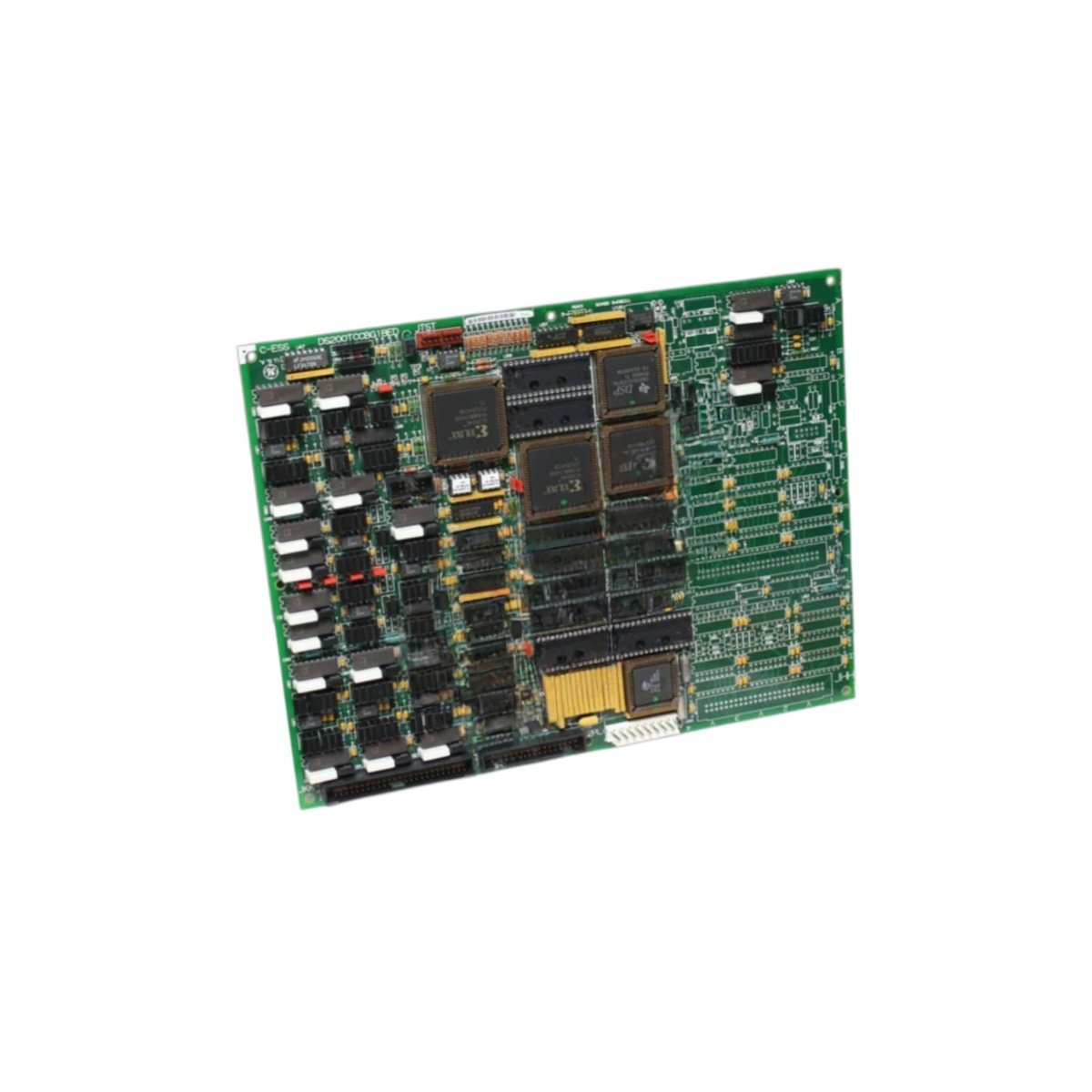

This DS200TCCBG1B DS200TCCBG1BED analog board measures 8.7 inches in length. Its width reaches 6.2 inches with a thickness of 1.3 inches. The total weight comes to approximately 1.42 pounds. Manufacturers placed 256 discrete components on this six-layer PCB. These components include ADC converters, DAC chips, precision amplifiers, and filter circuits. Both DS200TCCBG1B and DS200TCCBG1BED refer to the same extended analog board.
Analog Input Specifications and Channels
DS200TCCBG1B DS200TCCBG1BED provides 16 differential analog input channels. Each channel accepts ±10V, 0-10V, or 0-5V voltage signals. Alternatively, each channel accepts 4-20 mA or 0-20 mA current loops. A 14-bit ADC converts each signal with high precision. Conversion time reaches 2 milliseconds per channel. Total scan time for all 16 inputs reaches 32 milliseconds. Accuracy stays within ±0.2% of the full scale range. Consequently, this board captures critical process data accurately.
Analog Output Specifications and Channels
DS200TCCBG1B DS200TCCBG1BED delivers 8 single-ended analog output channels. Each output generates 0-10V or ±10V for actuator control. Current mode provides 4-20 mA for industrial compatibility. A 13-bit DAC ensures smooth and precise output signals. Each channel updates within 1 millisecond for fast response. All outputs include short-circuit protection for reliability.
Energy Storage and Application Use
DS200TCCBG1B DS200TCCBG1BED integrates six 220µF capacitors for bulk storage. Eight additional 47µF capacitors filter noise near the ADC and DAC circuits. You will find this board in GE Mark V and Mark VI turbine systems. It extends the analog I/O capacity of the main controller. The board operates reliably from 0°C to 55°C ambient. For example, it monitors vibration sensors and positions servo valves. Therefore, this extended PC analog board adds critical analog capability for turbine control applications.
