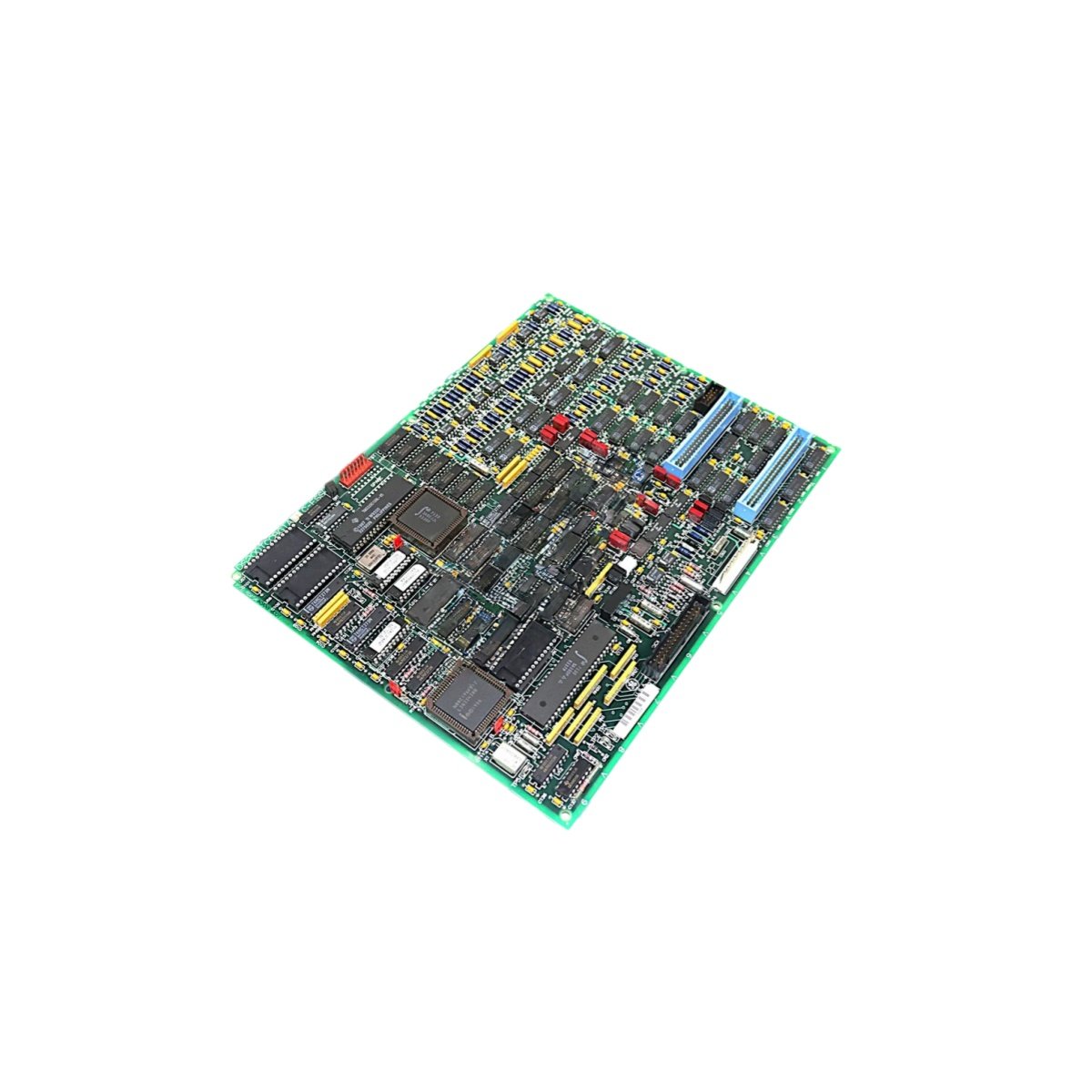

The complete model DS200TCCBG1A DS200TCCBG1ANE expands analog input capacity for Mark V turbine systems. This board adds extra channels beyond the base controller configuration. It supports LM6000 and similar gas turbine applications with high precision.

Technical Specifications

Analog Expansion Features

DS200TCCBG1A DS200TCCBG1ANE accepts sixteen differential analog inputs simultaneously. Eight capacitors filter electrical noise from field transducer signals. The board provides 16-bit resolution for precise measurement accuracy.  handles three standard industrial input ranges. Two high-density connectors organize all field wiring connections neatly.

This extended I/O board resides in R1 Core location 10. The placement allows expansion beyond standard slot allocations. DS200TCCBG1A DS200TCCBG1ANE converts 4-20 mA loops to digital values accurately. It also reads 0-10V and ±10V sensor outputs without scaling. Twenty precision resistors set gain for each input channel individually.

Operational Integration

The extended I/O board works with the main controller seamlessly. It prioritizes critical process variables above auxiliary measurements. DS200TCCBG1A DS200TCCBG1ANE scans all sixteen channels continuously. Only twelve channels see active use in typical configurations. The remaining four channels serve as spares for future sensors.

Physical and Installation Notes

Manufacturers reference manual GEH-6192 for all installation steps. Each DS200TCCBG1A DS200TCCBG1ANE unit undergoes complete functional testing. We clean every board thoroughly before final shipment. The secondary code DS200TCCBG1ANE appears on the factory identification label. This board weighs approximately 1.1 pounds for secure rack mounting.
