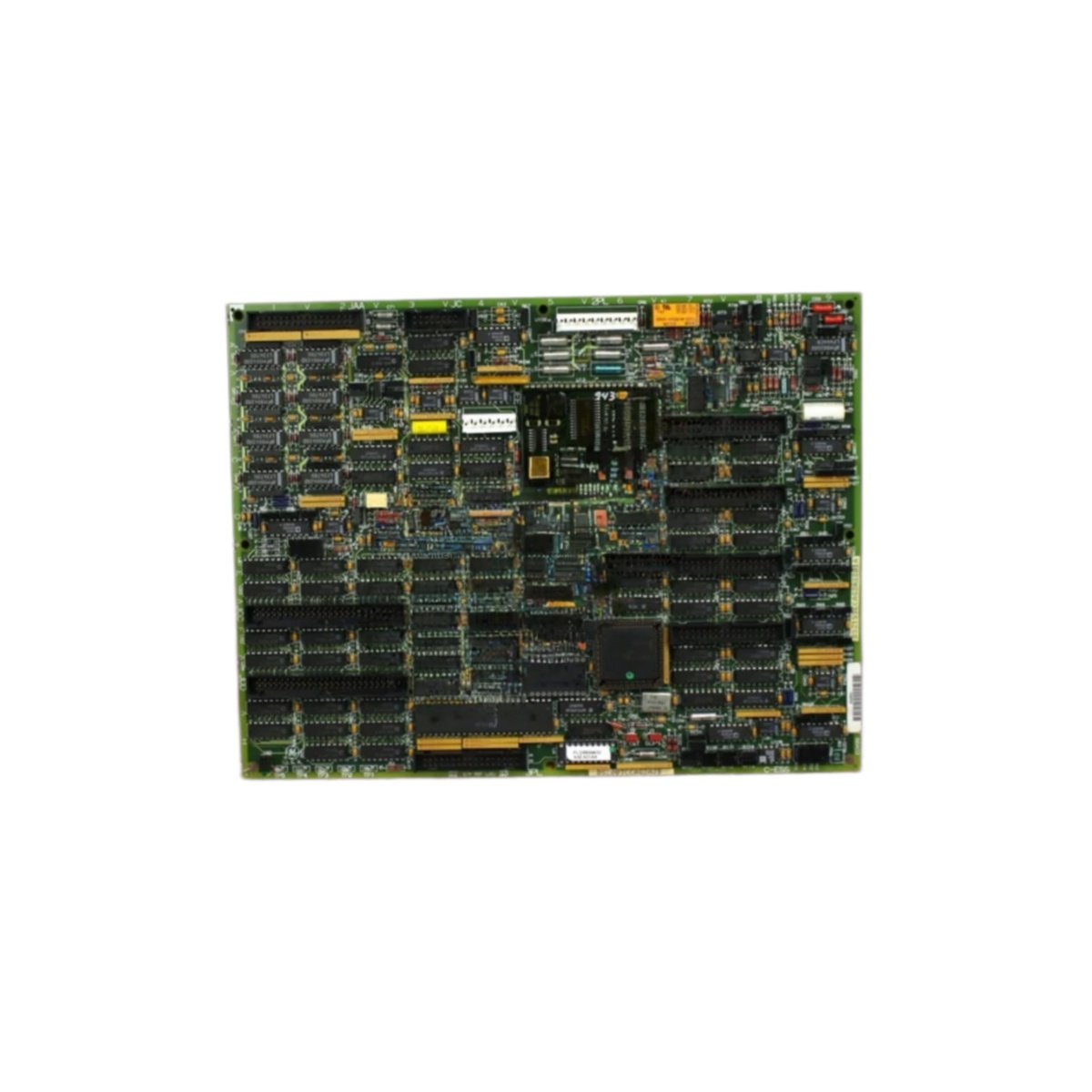

The GE DS200TCCAG2A DS200TCCAG2AJB provides analog signal processing for Mark V turbine control systems. This I/O board handles analog inputs and outputs for field device connectivity. It processes 4-20 mA and 0-10 V signals for precise turbine monitoring. Weighing only 0.42 kg, the GE DS200TCCAG2A DS200TCCAG2AJB mounts inside Mark V control cabinets. Its dimensions measure 240 mm x 150 mm x 28 mm.
Analog Input Specifications and Features
The GE DS200TCCAG2A DS200TCCAG2AJB features 8 analog input channels for field sensor connectivity. Each channel accepts 4-20 mA or 0-10 V signals with 12-bit resolution. The board provides built-in filtering for noise reduction on analog signals. Moreover, the GE DS200TCCAG2A DS200TCCAG2AJB includes channel isolation to prevent cross-channel interference. Consequently, you can monitor multiple sensors without signal degradation.
Analog Output and Protection Features
The GE DS200TCCAG2A DS200TCCAG2AJB provides 4 analog output channels for actuator control. Each output delivers 4-20 mA or 0-10 V with 12-bit resolution. The board includes short-circuit protection on all output channels. Additionally, the GE DS200TCCAG2A DS200TCCAG2AJB features LED indicators for power and channel status. Therefore, you can verify board operation at a glance without test equipment.
Technical Specifications Table
Below are the complete technical parameters for engineers and procurement teams:
| Parameter | Specification |
|---|---|
| Full Product Name | GE DS200TCCAG2A DS200TCCAG2AJB |
| Product Category | Mark V I/O TC2000 Analog Board |
| Number of Analog Inputs | 8 |
| Number of Analog Outputs | 4 |
| Input Signal Ranges | 4-20 mA, 0-10 V DC |
| Output Signal Ranges | 4-20 mA, 0-10 V DC |
| Input Resolution | 12 bits (1/4096 of full scale) |
| Output Resolution | 12 bits (1/4096 of full scale) |
| Input Accuracy | ±0.2% of full scale at 25°C |
| Output Accuracy | ±0.3% of full scale at 25°C |
| Temperature Drift | ±100 ppm/°C |
| Input Impedance (Current) | 250 Ω |
| Input Impedance (Voltage) | > 1 MΩ |
| Output Load (Current) | 600 Ω maximum |
| Output Load (Voltage) | 2 kΩ minimum |
| Channel Isolation | None (common ground) |
| Protection Features | Output short-circuit protection |
| Conversion Time (Inputs) | 10 ms for all channels |
| Update Time (Outputs) | 2 ms for all channels |
| Filtering | Built-in low-pass filter |
| LED Indicators | Power (green), 8 input status (yellow), 4 output status (yellow) |
| Test Points | 6 (voltage, reference, calibration signals) |
| Current Consumption (5V DC) | 250 mA |
| Current Consumption (24V DC) | 100 mA |
| Power Dissipation | 2.0 W maximum |
| Energy Storage | No battery (decoupling capacitors only) |
| Number of Components | 1 PCB + 12 analog circuits + 2 connectors + 13 LEDs + 6 test points |
| PCB Material | FR-4 epoxy glass |
| Number of Layers | 6-layer board |
| Net Weight | 0.42 kg (420 grams) |
| Gross Weight (packaged) | 560 grams |
| Dimensions (L x W x H) | 240 mm x 150 mm x 28 mm |
| Mounting Type | 4 x M4 screws (panel mount) |
| Connector Types | 20-pin header, 10-pin header |
| Field Wiring | Via separate terminal board |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Tolerance | 5% to 95% non-condensing |
| Certifications | CE, UL, CSA |
Installation and Application Details
The GE DS200TCCAG2A DS200TCCAG2AJB mounts inside the Mark V control cabinet using four M4 screws. Connect the board to the backplane using the 20-pin and 10-pin headers. Field wiring connects through a separate terminal board for easy maintenance. The GE DS200TCCAG2A DS200TCCAG2AJB requires no configuration jumpers for basic operation. Use the test points during calibration and troubleshooting procedures. This analog board suits GE Mark V turbine control systems for power generation applications. It also works perfectly for steam turbine, gas turbine, and compressor control systems. Thus, the GE DS200TCCAG2A DS200TCCAG2AJB provides reliable analog I/O for critical turbine monitoring and control.
