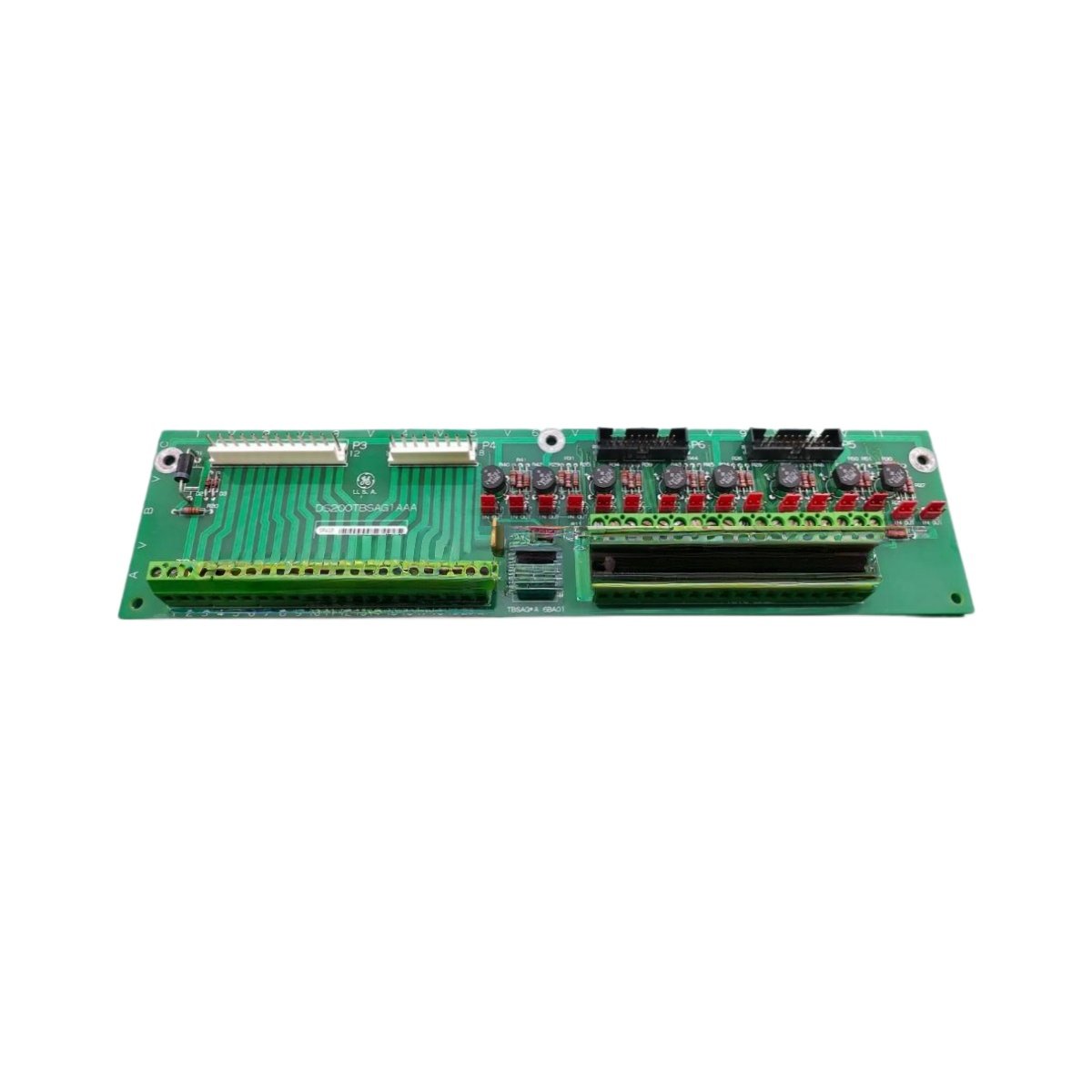

The complete model DS200TBSAG1A DS200TBSAG1AAA converts field sensor signals for Mark V turbine systems. This board processes analog inputs from multiple transducer types. It supports LM6000 and similar gas turbine applications with high accuracy.

Technical Specifications

Signal Conversion Features

DS200TBSAG1A DS200TBSAG1AAA accepts eight differential analog inputs simultaneously. Its ten capacitors filter electrical noise from field transducers. The board converts 4-20 mA signals to digital data accurately. also handles 0-10 volt inputs without scaling issues. Two terminal blocks organize all field wiring connections neatly.

This transducer board resides in R1 Core location 6. The placement ensures short signal paths to the main processor. DS200TBSAG1A DS200TBSAG1AAA supports thermocouple and RTD temperature sensors. It also reads pressure and flow transducer outputs reliably. The board provides galvanic isolation for each input channel. This isolation prevents ground loops from corrupting measurements.

Operational Integration

The transducer board works with the main turbine controller seamlessly. It prioritizes critical temperature and pressure signals first. DS200TBSAG1A DS200TBSAG1AAA scans all eight channels continuously. Only six channels see active use in typical configurations. The remaining two channels serve as spares for future needs.

Physical and Installation Notes

Manufacturers reference manual GEH-6172 for all installation steps. Each DS200TBSAG1A DS200TBSAG1AAA unit undergoes full functional testing. We clean every board before final shipment. The secondary code DS200TBSAG1AAA appears on the factory label. This board weighs approximately 1.1 pounds for easy handling.
