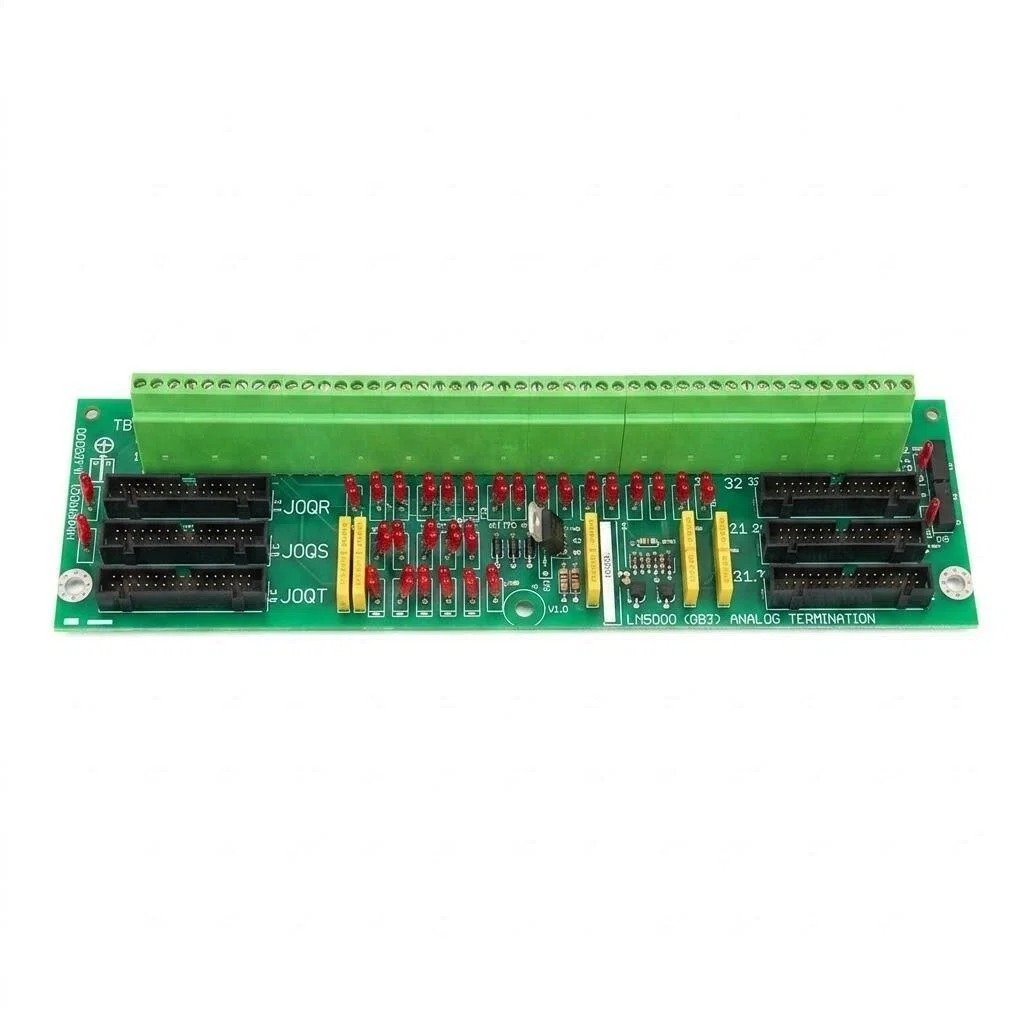

The complete model DS200TBQEG1B DS200TBQEG1BAA identifies this analog termination board. This module supports Mark V turbine control systems with high reliability. It excels in LM6000 gas turbine applications for signal management.

Full Technical Specifications

Signal Management Features

DS200TBQEG1B DS200TBQEG1BAA provides four physical connectors for field wiring. Its two jumpers let you adjust the 4-20 mA scaling easily. This board resides in R1 Core location 7 for optimal routing. The placement significantly reduces electrical noise interference.

This complete model accepts accelerometer and proximity transducer inputs directly. It also handles LVDT/R feedback for precise position control. The JQQR connector specifically transmits vibration data from proximitors. DS200TBQEG1B DS200TBQEG1BAA manages pulse rate signals for accurate speed monitoring.

Operational Configuration

Only two of the four connectors see active use in standard setups. The remaining two ports remain available for future expansion needs. DS200TBQEG1B DS200TBQEG1BAA works seamlessly with the TCQE board inside the core. This design reduces cabinet wiring complexity significantly. The board also supports RTD inputs for robust thermal management.

Installation and Physical Notes

Manufacturers reference manual GEH-6153 for all installation procedures. Each DS200TBQEG1B DS200TBQEG1BAA unit undergoes full testing before shipment. We clean every board thoroughly to remove industrial debris. The secondary code appears as part of the complete model label.
