Board Functionality

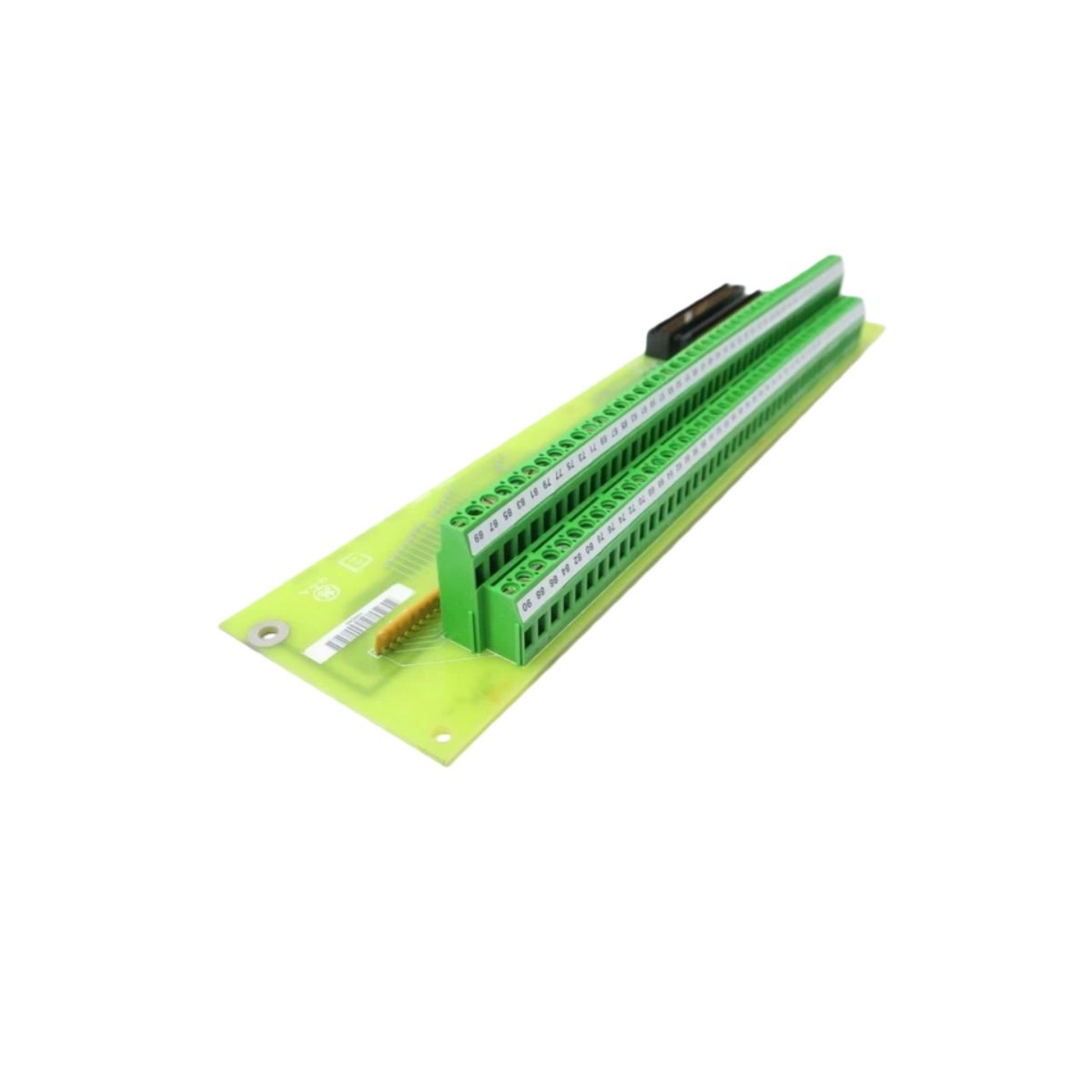

The GE DS200TBCAG1AAB analog I/O terminal board interfaces field sensors with the Speedtronic Mark V control system. This passive termination assembly provides organized connection points for analog signals. It accepts inputs from thermocouples, RTDs, and pressure transmitters. The board also routes analog control outputs to actuators and positioners.

Signal Routing Architecture

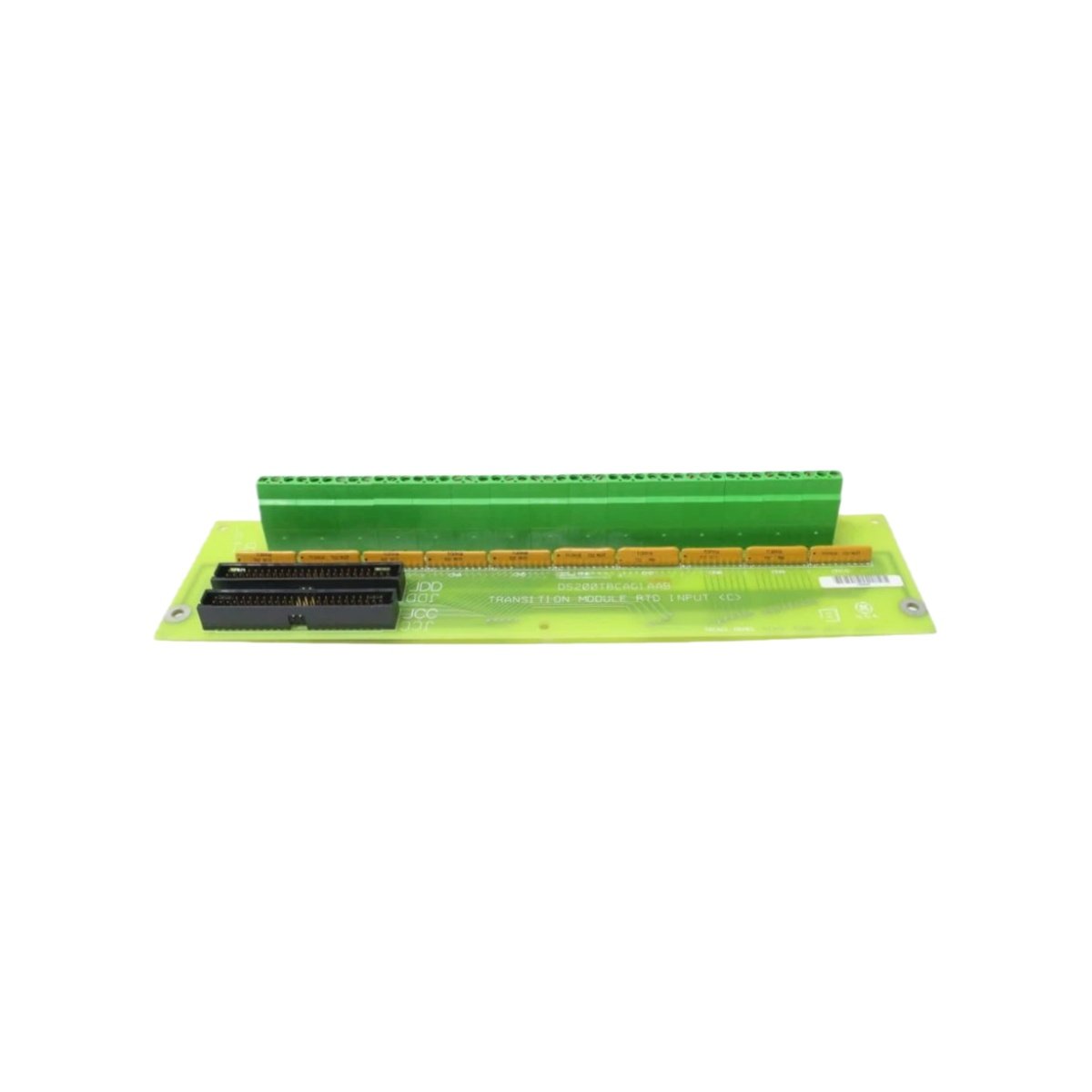

The GE DS200TBCAG1AAB supports 16 analog input channels and 8 analog output channels. Each channel connects to dedicated terminal positions for organized wiring. The board routes signals to the main control processor via ribbon cables. It provides shielding connections for noise-sensitive analog lines. This design ensures signal integrity across the terminal board.

Terminal Connection Specifications

The board features screw-type terminal blocks for all field wiring connections. Each terminal accepts wire sizes from 0.2 to 2.5 square millimeters. Input channels provide separate shield terminals for cable screening. Output terminals include common return connections for loop-powered devices. The terminal arrangement simplifies field installation and modification.

Input Interface and Signal Conditioning

The GE DS200TBCAG1AAB accepts 0-10 V DC and 4-20 mA analog input signals. It provides passive signal conditioning without active electronic components. Input circuits include transient suppression for voltage spikes. The board routes signals directly to the Mark V A/D converter modules. This passive design enhances system reliability significantly.

Output Interface and Drive Capabilities

The terminal board passes analog output signals from the control processor. Output channels carry 0-10 V DC or 4-20 mA control signals. Each output provides a shielded twisted-pair connection for noise immunity. The board includes test points for output voltage verification. These features support accurate actuator control.

Physical Dimensions and Mounting

The board measures 320 millimeters in width, 200 millimeters in height, and 30 millimeters in depth. The unit weighs 0.8 kilograms for straightforward installation. It mounts vertically inside the Mark V cabinet using standoffs. The assembly occupies one dedicated position in the rack structure.

Component Quality and Construction

The GE DS200TBCAG1AAB uses high-grade PCB material with gold-plated edge connectors. Terminal blocks feature corrosion-resistant plating for field connections. The board includes strain relief brackets for cable management. All components meet GE industrial quality standards. The construction supports reliable 24/7 turbine operation.

Edge Connector and Interface

A 64-pin gold-edge connector mates with the backplane or ribbon cable. This connector distributes signals between the board and processor. The pin assignments follow standard Mark V signal routing conventions. A locking mechanism ensures secure connection retention. This interface simplifies board replacement procedures.

Diagnostic and Test Points

The board provides test points for each analog input and output channel. Technicians can verify signal levels without disconnecting field wiring. The board includes ground reference terminals for oscilloscope measurements. Labeled test points accelerate troubleshooting and calibration. This accessibility supports efficient maintenance practices.

Environmental Specifications

The board operates between -30°C and 65°C ambient temperature. It withstands 10% to 95% non-condensing humidity conditions. The assembly meets GE specifications for turbine control environments. The conformal-coated PCB resists moisture and airborne contaminants. The robust design handles high vibration applications.

Technical Specifications Table

Details
