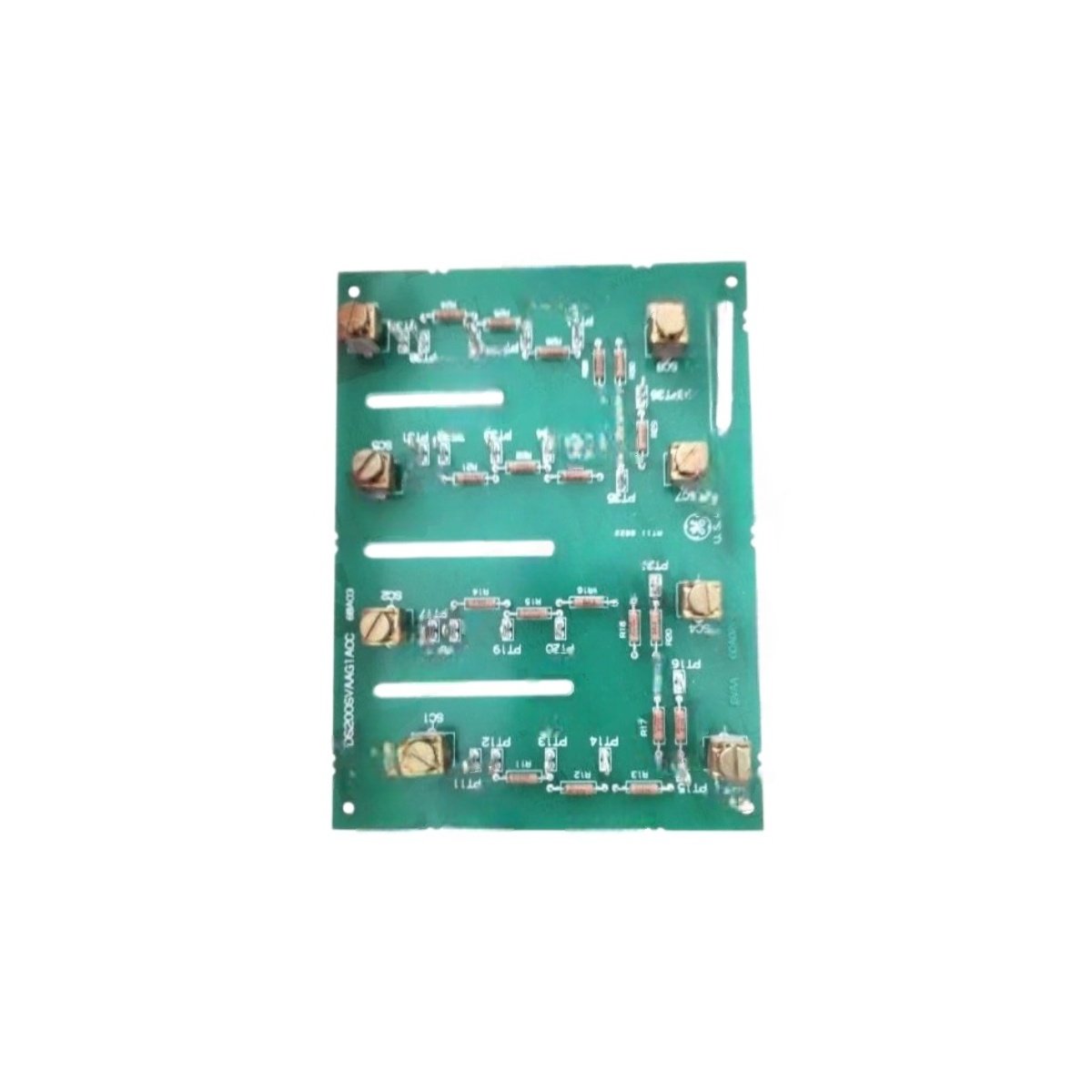

This voltage attenuator board functions as a signal conditioning component within GE Mark V turbine control systems. It scales high-voltage input signals down to levels suitable for analog-to-digital conversion. The board ensures accurate measurement of AC voltage signals from generators and power distribution equipment. Its robust design meets the demanding requirements of turbine-generator monitoring applications.
Signal Conditioning and Voltage Scaling
The GE DS200SVAAG1A receives AC voltage inputs from the generator terminals or busbars and scales them appropriately. It then passes these conditioned signals to the DS200ADCI** analog input board for further processing. The board handles multiple AC voltage channels simultaneously, enabling comprehensive power system monitoring. This module incorporates precision resistors and isolation amplifiers to maintain accuracy and safety. It also provides electrical isolation between the high-voltage side and the control electronics.
Technical Specifications
| Specification | Detail |
|---|---|
| Model | DS200SVAAG1A |
| Product Type | Voltage Attenuator / Signal Conditioner Board |
| System Compatibility | GE Mark V Turbine Control |
| Input Signal Type | AC Voltage |
| Input Voltage Range | User-configurable (typically high-voltage AC) |
| Output Signal | Scaled AC voltage (to ADCI board) |
| Channels | Multiple AC voltage inputs |
| Isolation | Galvanic isolation between input and output |
| Components | Precision resistors, isolation amplifiers |
| Attenuation Ratio | Fixed or configurable per application |
| Mounting | Mark V VME chassis |
| Dimensions | Standard Mark V board form factor |
| Weight | Approx. 0.3 – 0.5 kg |
| Power Supply | 5VDC and ±15VDC from backplane |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Certifications | GE Mark V system qualified |
System Architecture and Integration
This board works as part of the Mark V input subsystem, providing clean scaled signals to the analog input boards. It works alongside the DS200ADCI board to complete the data acquisition path. The module fits into a standard VME chassis slot alongside other Mark V components. All signal connections use rear terminal blocks for secure, reliable wiring. The board’s configuration determines the appropriate attenuation ratio for each application.
Diagnostics, Reliability, and Application Use
Built-in diagnostics include channel health monitoring and open-circuit detection for reliable operation. These features allow the control system to detect faulty signal paths quickly. The board’s passive design ensures reliable operation with minimal active components. Turbine-generator systems in power plants rely on this module for accurate voltage feedback to the speed and excitation control loops. Its precision scaling ensures stable generator synchronization and load sharing between multiple units.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
