Product Overview

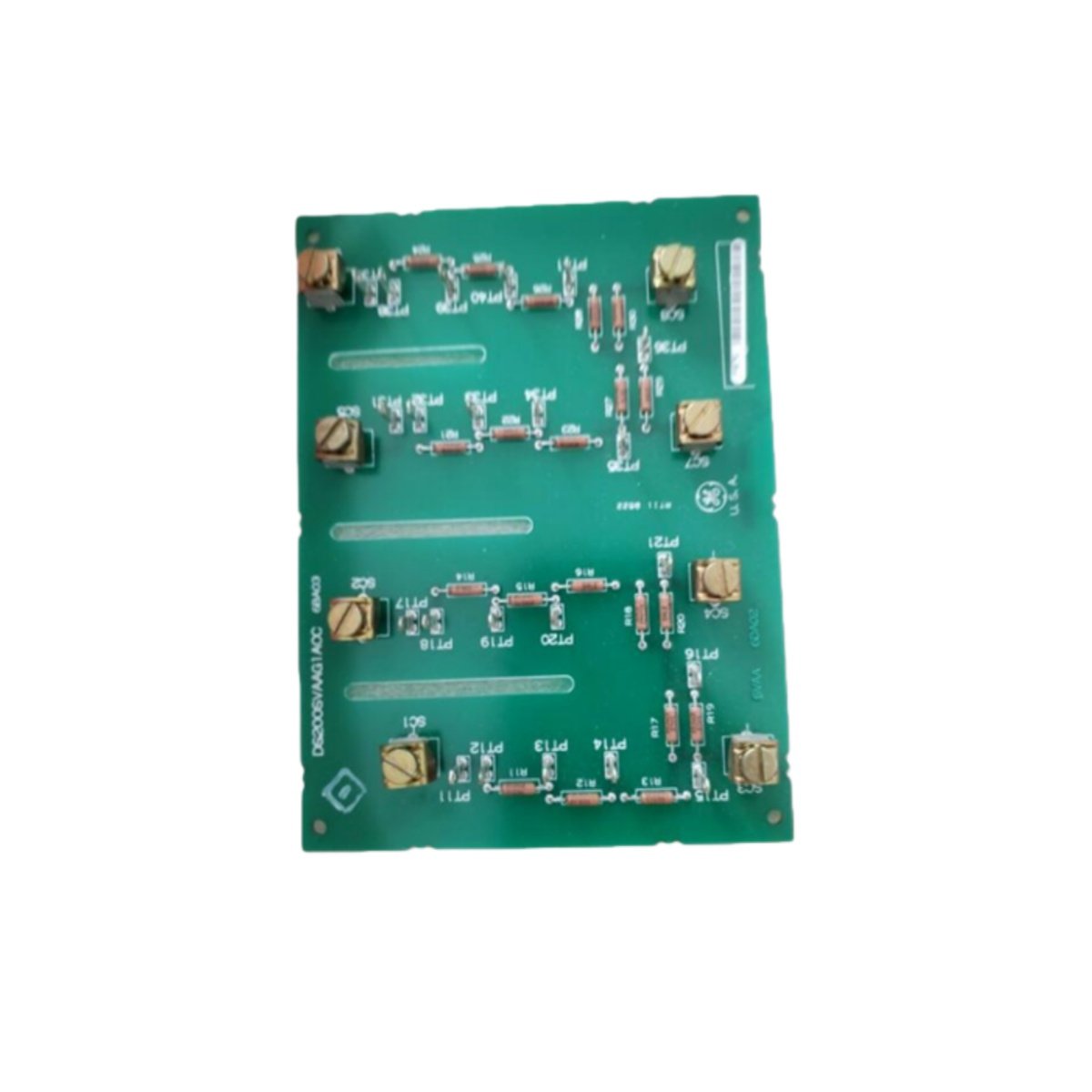

The GE DS200SVAAG1A and its variant DS200SVAAG1ACB voltage attenuator boards form a critical component in General Electric’s Mark V turbine control systems. These boards condition high-voltage input signals to safe levels for processing. They connect directly to the system’s backplane. The units ensure accurate signal conversion for reliable turbine operation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Numbers | DS200SVAAG1A, DS200SVAAG1ACB |
| Product Type | Voltage Attenuator Board |
| Brand | GE (General Electric) |
| Category | Mark V Turbine Control Boards |
| Input Voltage Range | High-voltage AC/DC signals |
| Output Signal | Low-level conditioned signals |
| Number of Channels | Multiple (application-specific) |
| Connection | Backplane interface |
| Weight (each) | Approximately 0.35 kg |
| Dimensions | Standard Mark V board size |
| Operating Temperature | 0°C to 60°C |
| Part Variants | DS200SVAAG1A (base), DS200SVAAG1ACB (variant) |
Key Features and Benefits
Precise Signal Conditioning
The DS200SVAAG1A accurately attenuates high-voltage inputs for safe processing. This ensures reliable data acquisition for the control system. The board maintains signal integrity throughout the conversion process.
Application Versatility
The DS200SVAAG1ACB variant offers identical core functionality with subtle hardware differences for specific configurations. Both boards serve as direct replacements in compatible systems. This flexibility simplifies spare parts management.
Robust Turbine Control Integration
These boards integrate seamlessly into GE Mark V control systems. They support critical turbine monitoring functions. This reliability ensures consistent power generation performance.
Application and Use Cases
The GE DS200SVAAG1A and DS200SVAAG1ACB suit steam and gas turbine control systems using Mark V technology. They also serve in other high-voltage industrial monitoring applications. Facilities will find these boards essential for maintaining system integrity.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
