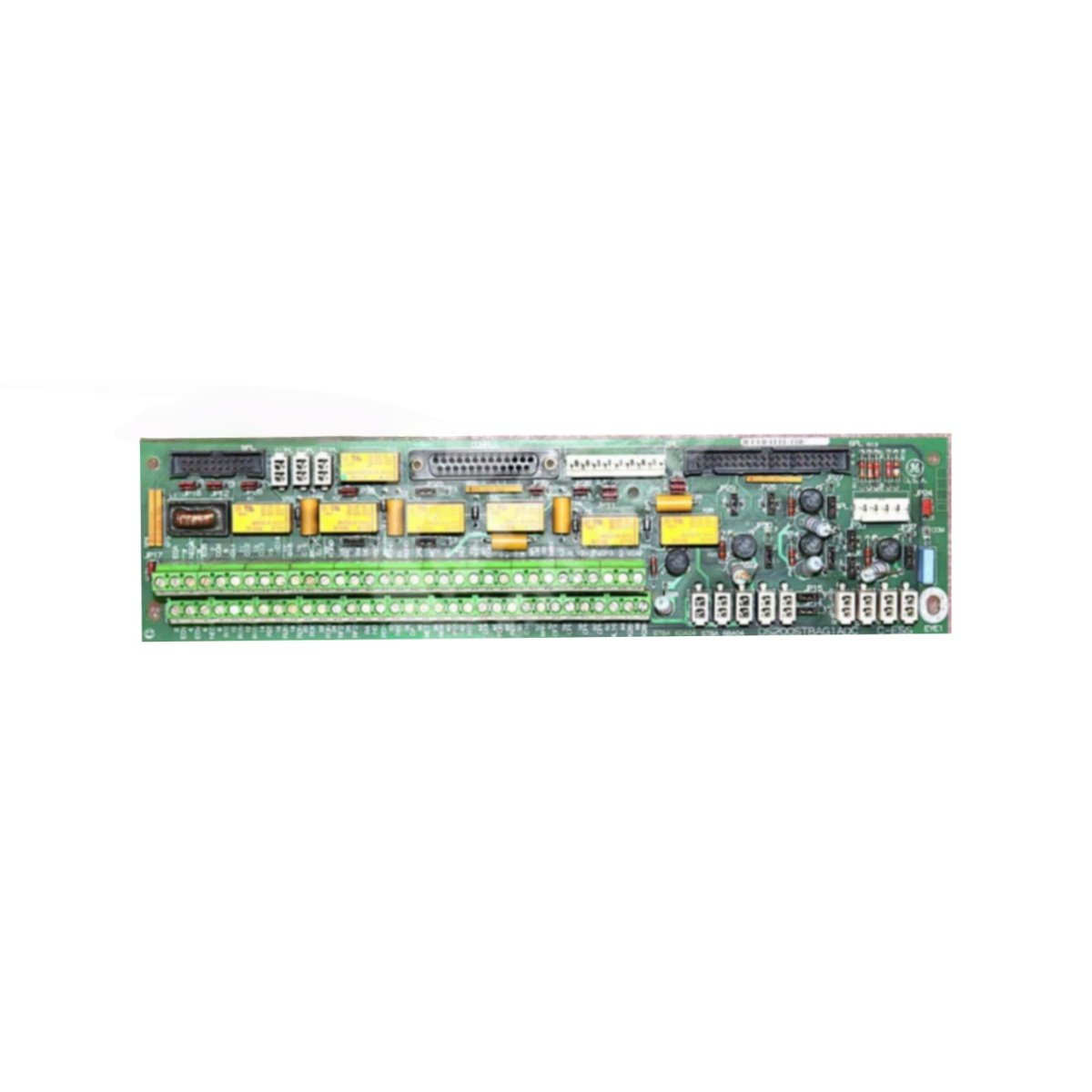

The complete model DS200STBAG1A DS200STBAG1ADC terminates field wiring for Mark V turbine control systems. This board connects sensors and actuators to the main controller securely. It supports LM6000 and similar gas turbine applications with high reliability.

Technical Specifications

Terminal and Signal Features

DS200STBAG1A DS200STBAG1ADC provides forty screw terminals for field wiring. Four removable terminal blocks simplify maintenance and replacement tasks. Six capacitors filter electrical noise from incoming sensor signals. The board resides in R1 Core location 5. This placement ensures short signal paths to processing cards.

DS200STBAG1A DS200STBAG1ADC handles sixteen analog input signals from field transducers. It also accepts eight digital inputs for status monitoring. Eight digital outputs drive relays and indicating lights. Each terminal accepts wire sizes from 22 to 14 AWG. The board labels every terminal clearly for error-free installation.

Operational Integration

This terminal board works with the main turbine controller seamlessly. It prioritizes critical trip signals above routine monitoring inputs. DS200STBAG1A DS200STBAG1ADC organizes wiring by signal type systematically. All forty terminals see potential use in complex turbine configurations. The board reduces cabinet clutter through centralized termination.

Physical and Installation Notes

Manufacturers reference manual GEH-6178 for all installation steps. Each DS200STBAG1A DS200STBAG1ADC unit undergoes complete functional testing. We clean every board thoroughly before final shipment. The secondary code DS200STBAG1ADC appears on the factory identification label. This board weighs approximately 1.4 pounds for secure rack mounting.
