Reliable Field Wiring Interface for Drive Systems

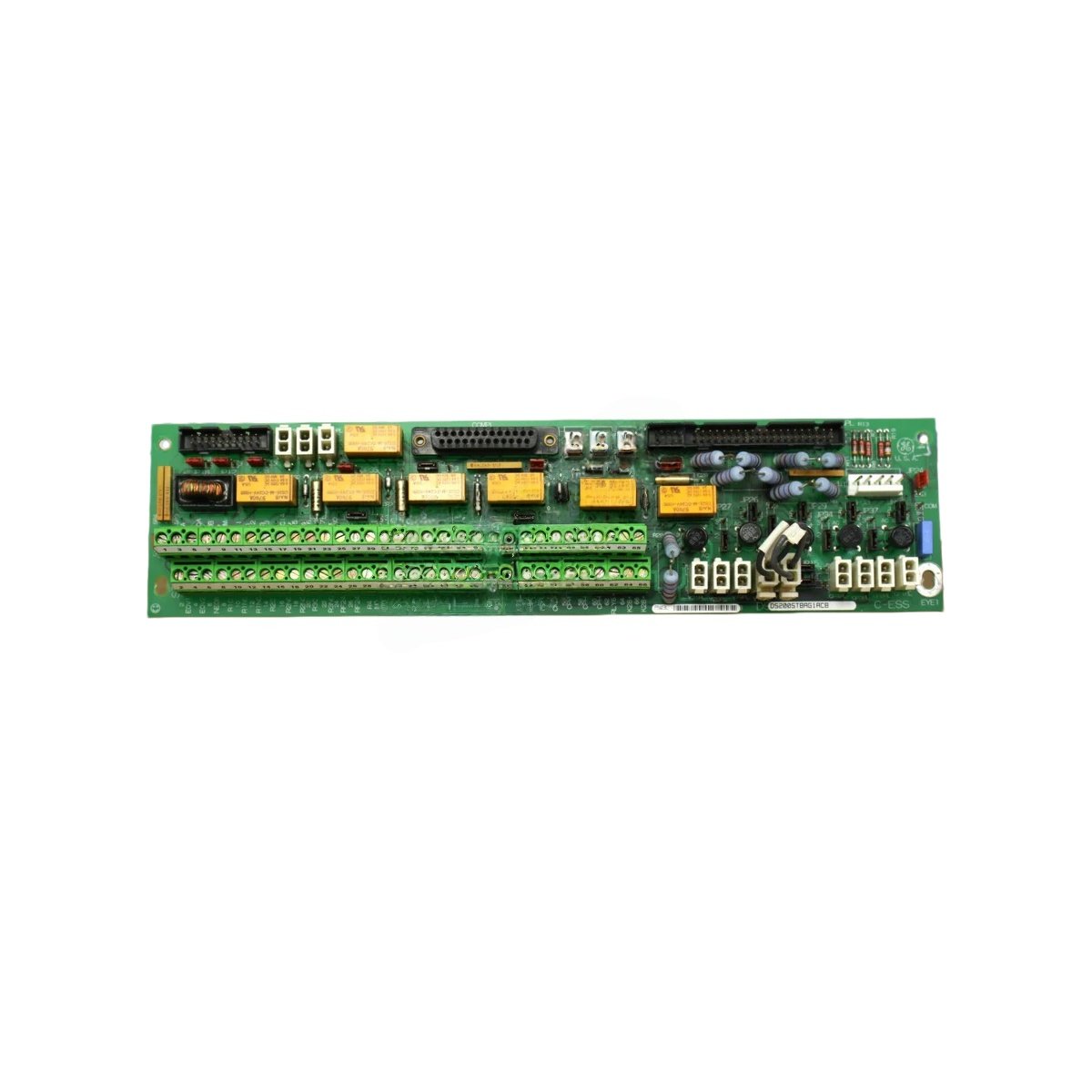

This terminal board provides basic I/O connections for GE Mark V drive control systems. The GE DS200STBAG1A interfaces between field devices and the main drive controller. The DS200STBAG1ACB variant offers identical functionality for direct drop-in replacement. Multiple terminal blocks support various signal types for drive monitoring and control. Consequently, this board simplifies field wiring for basic drive applications.
I/O Configuration & Terminal Specifications
The GE DS200STBAG1A DS200STBAG1ACB accepts digital inputs from push buttons and limit switches. It provides relay outputs for controlling auxiliary drive equipment. Each terminal block includes clear labeling for easy field wiring identification. Screw-type connections secure wires against vibration in industrial environments. Therefore, this basic drive terminal board delivers reliable signal interface for Mark V drive systems.
| Parameter | Detailed Specification |
|---|---|
| Series | Mark V |
| Digital Inputs | 8 points (24V DC, sink/source) |
| Digital Outputs | 8 points (relay, 2A per point) |
| Analog Inputs | 2 channels (4-20 mA or 0-10V) |
| Terminal Blocks | 6 (removable, screw-type) |
| Input Voltage Range | 20V to 28V DC |
| Input Response Time | 5 ms typical |
| Output Contact Life | 100,000 operations (rated load) |
| Analog Resolution | 12 bits (4096 counts) |
| Dimensions | 10.0 in x 8.0 in x 2.0 in (25.4 cm x 20.3 cm x 5.1 cm) |
| Weight | 1.4 lbs (0.64 kg) |
| Component Count | Over 80 surface-mount and through-hole parts |
| Main Connector | Two 50-pin ribbon cable headers |
| Wire Range | 0.2 mm² to 2.5 mm² (24 AWG to 14 AWG) |
| Energy Storage | None (passive terminal design) |
| Status LEDs | 2 (POWER, I/O ACTIVE) |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +70°C |
| Humidity Range | 20% to 95% RH (non-condensing) |
Installation & Field Wiring
You mount the GE DS200STBAG1A DS200STBAG1ACB inside the drive control cabinet. Connect the ribbon cables between this board and the main drive controller card. Wire your field sensors to the designated input terminals on the removable blocks. Wire your actuators to the output terminals using appropriate gauge wire. Consequently, this board simplifies field wiring for basic drive I/O requirements.
Operational Advantages & System Integration
The GE DS200STBAG1A DS200STBAG1ACB uses removable terminal blocks for easy maintenance access. You can replace a faulty block without rewiring the entire board. Screw terminals provide vibration-resistant connections for industrial environments. A green I/O ACTIVE LED confirms normal communication with the main controller. Therefore, this basic drive terminal board provides flexible signal interface for Mark V drive systems.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
