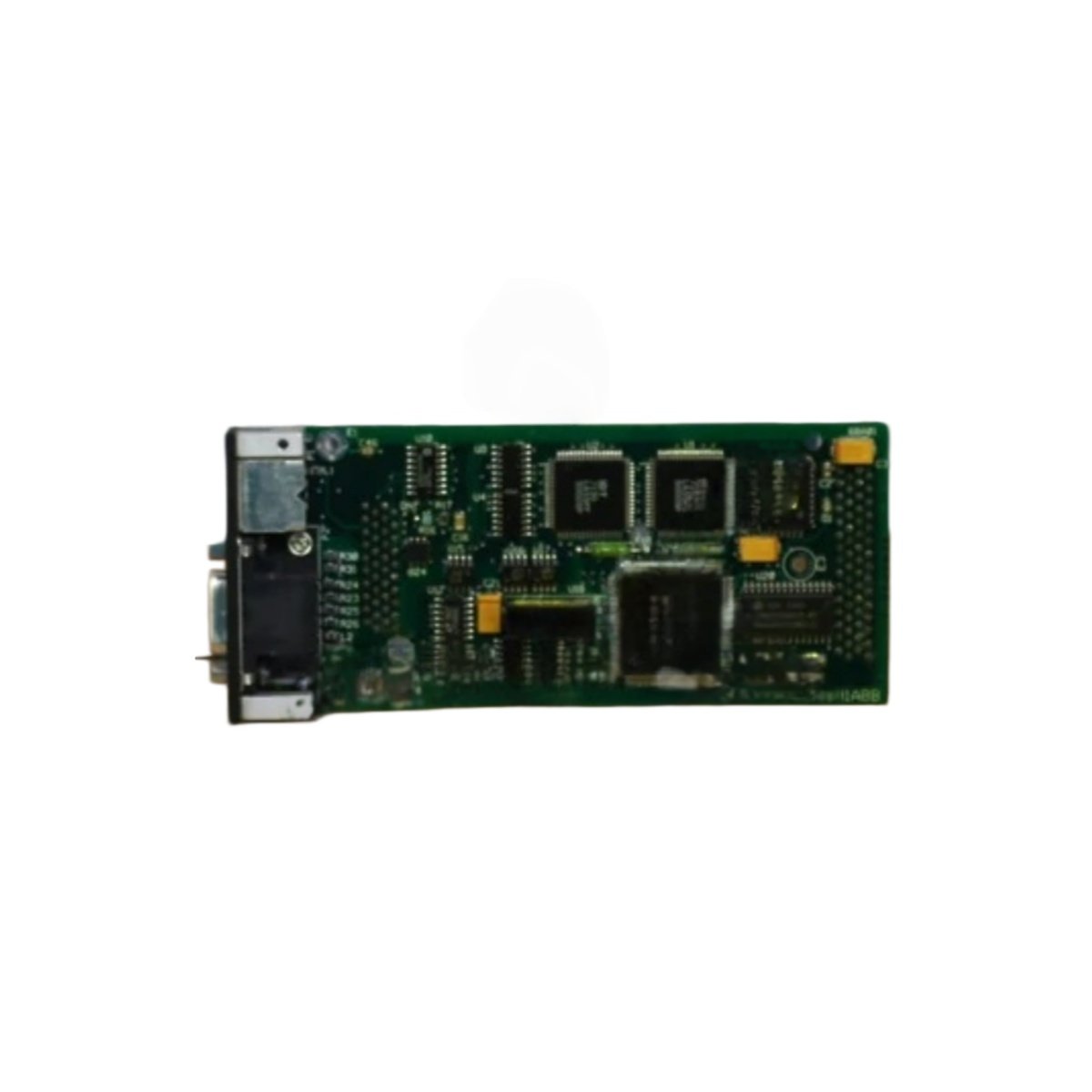

The GE DS200SNPAH1A DS200SNPAH1ABB provides SNP protocol communication for Mark V turbine systems. This interface board connects the turbine controller to external devices and networks. It supports point-to-point and multidrop configurations for flexible system design. Weighing only 0.32 kg, the GE DS200SNPAH1A DS200SNPAH1ABB mounts inside Mark V control cabinets. Its dimensions measure 220 mm x 130 mm x 25 mm.
Communication Specifications and Protocol Features
The GE DS200SNPAH1A DS200SNPAH1ABB supports SNP (Series Ninety Protocol) for GE controller communication. This interface board provides RS-232 and RS-485 physical layer connections. It handles baud rates from 9,600 to 115,200 for flexible network speeds. Moreover, the GE DS200SNPAH1A DS200SNPAH1ABB includes optical isolation between the controller and communication lines. Consequently, it protects the turbine control system from ground loops and electrical noise.
Energy Storage and Diagnostic Features
The GE DS200SNPAH1A DS200SNPAH1ABB contains no internal battery for maintenance-free operation. This board draws 150 mA from the 5 V DC and 24 V DC power supplies. It includes LED indicators for power, transmit, receive, and fault status. The GE DS200SNPAH1A DS200SNPAH1ABB features test points for signal verification during troubleshooting. Therefore, technicians can diagnose communication issues without disconnecting cables.
Technical Specifications Table
Below are the complete technical parameters for engineers and procurement teams:
| Parameter | Specification |
|---|---|
| Full Product Name | GE DS200SNPAH1A DS200SNPAH1ABB |
| Product Category | Mark V SNP Protocol Interface Board |
| Supported Protocol | SNP (Series Ninety Protocol) |
| Protocol Modes | Point-to-point, multidrop |
| Physical Interfaces | RS-232, RS-485 |
| RS-232 Connector | 9-pin SUB-D female |
| RS-485 Connector | 3-pin screw terminal block |
| Baud Rates Supported | 9,600, 19,200, 38,400, 57,600, 115,200 |
| Communication Distance (RS-232) | 15 meters (50 feet) maximum |
| Communication Distance (RS-485) | 1,200 meters (4,000 feet) maximum |
| Maximum Nodes (RS-485) | 32 |
| Optical Isolation | 1,500 V AC between controller and field |
| Diagnostic Features | Loopback test, error counters |
| LED Indicators | Power (green), TX (yellow), RX (yellow), Fault (red) |
| Test Points | 6 (voltage, data, clock signals) |
| Current Consumption (5V DC) | 100 mA |
| Current Consumption (24V DC) | 50 mA |
| Power Dissipation | 1.0 W maximum |
| Energy Storage | No battery (passive circuits only) |
| Number of Components | 1 PCB + 1 SUB-D connector + 1 terminal block + 4 LEDs + 6 test points |
| PCB Material | FR-4 epoxy glass |
| Number of Layers | 4-layer board |
| Net Weight | 0.32 kg (320 grams) |
| Gross Weight (packaged) | 440 grams |
| Dimensions (L x W x H) | 220 mm x 130 mm x 25 mm |
| Mounting Type | 4 x M4 screws (panel mount) |
| Wire Size (Terminals) | AWG 24 to AWG 14 (0.2 mm² to 2.5 mm²) |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Tolerance | 5% to 95% non-condensing |
| Certifications | CE, UL, CSA |
Installation and Application Details
The GE DS200SNPAH1A DS200SNPAH1ABB mounts inside the Mark V control cabinet using four M4 screws. Connect the RS-232 cable to the 9-pin SUB-D port for point-to-point communication. Use the RS-485 terminal block for multidrop networks with multiple devices. The GE DS200SNPAH1A DS200SNPAH1ABB requires no configuration jumpers for basic operation. Set the baud rate and node address through the controller configuration software. This interface board suits GE Mark V turbine control systems for power generation applications. It also works perfectly for connecting operator workstations, data loggers, and remote monitoring systems. Thus, the GE DS200SNPAH1A DS200SNPAH1ABB provides reliable SNP protocol communication for critical turbine control systems.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
