Engineered for GE Mark V Speedtronic Signal Processing

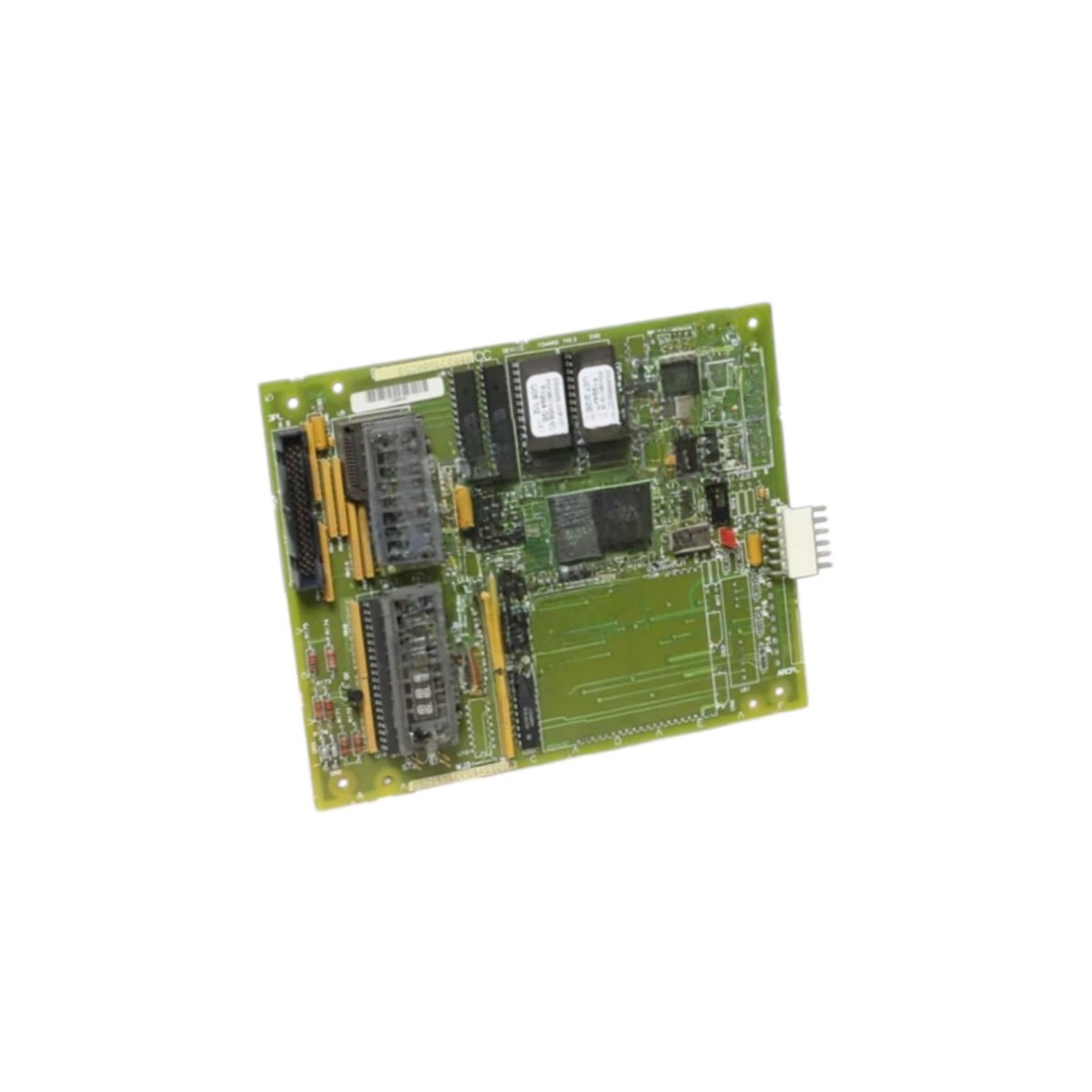

This board combines LAN communication with multiple input channels. It provides PC-based control for the GE DS200SLCCG4A DS200SLCCG4ACC module. You will find this control board exclusively in the Mark V turbine control series. Unlike single-purpose boards, this version integrates networking and data acquisition. It handles up to 16 mixed input signals for turbine monitoring.
Technical Specifications & Physical Dimensions
We designed this PC control board for versatile signal handling. The table below presents all verified technical specifications.
| Parameter | Specification |
|---|---|
| Physical Dimensions (W x H x D) | 170mm x 115mm x 40mm |
| Total Weight | 0.48 kg (480 grams) |
| Analog Inputs | 8 differential channels (0-10V, 4-20mA) |
| Digital Inputs | 8 isolated channels (24V DC) |
| Communication Port | 1 LAN (Ethernet 10/100) |
| Data Buffer | 2 MB shared memory |
| Operating Voltage | 5V DC (from backplane) |
Functional Architecture and PC Integration
This control board interfaces directly with PC-based monitoring systems. It uses an embedded LAN controller for network connectivity. You can configure each input channel for various signal types. Moreover, the board includes a shared memory buffer for data exchange. This component stores input values for PC retrieval without interrupting control. Consequently, the system provides real-time turbine data to remote workstations.
Installation and Operational Guidelines
The GE DS200SLCCG4A DS200SLCCG4ACC scans all inputs every 4 milliseconds. It consumes 1.3A at 5V DC from the backplane. You must assign a static IP address for network operation. Always use shielded Ethernet cables (Cat5e or better). This practice ensures reliable communication in industrial environments. Furthermore, the board supports Modbus TCP protocol for third-party integration. This feature connects the turbine control to plant-wide SCADA systems.
Physical Characteristics and Environmental Limits
This PC control board has a multi-layer, high-reliability PCB design. Its moderate 0.48 kg weight allows for easy field replacement. The layout follows GE’s standard Mark V thermal specifications. Therefore, it fits securely into designated control slots in the rack. The board includes LAN link and activity LED indicators. In addition, it maintains stable operation between -25°C and 60°C ambient temperature. You can store this unit safely up to 85°C.
Details
| Weight | 0.45 kg |
|---|---|
| Dimensions | 254 × 178 × 5 mm |
