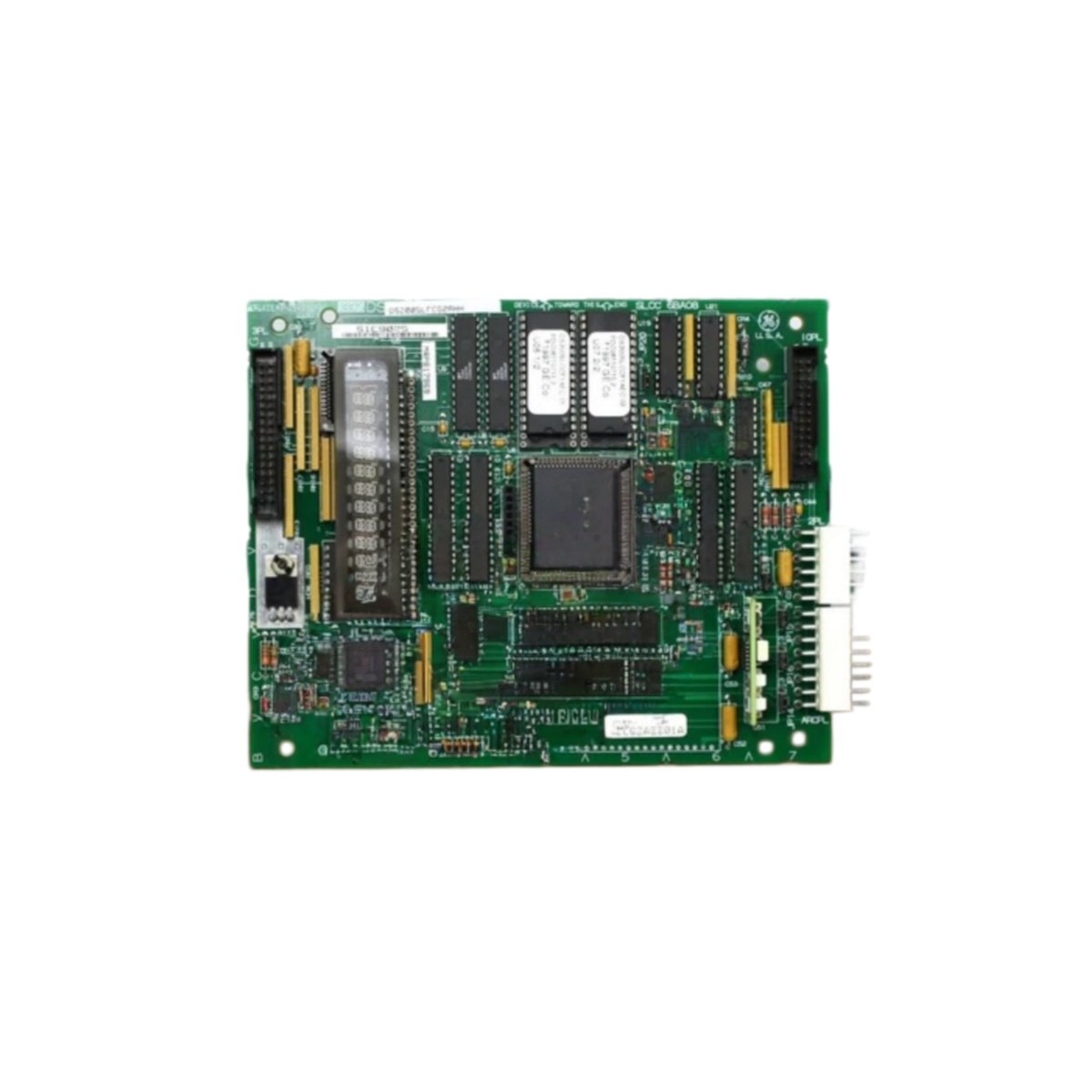

High-Speed Network Interface for Mark V Turbine Control
This communication board manages local area network connectivity for GE Mark V systems. The GE DS200SLCCG2A handles data exchange between multiple turbine control modules. The DS200SLCCG2AHH variant offers identical functionality for direct drop-in replacement. Dual network ports provide redundant communication paths for fail-safe operation. Consequently, this board ensures continuous data flow even during network cable failures.
Network Specifications & Communication Protocol
The GE DS200SLCCG2A DS200SLCCG2AHH supports high-speed Ethernet communication for real-time control. You can connect this board to plant-wide networks or dedicated turbine control LANs. Built‑in isolation transformers protect against voltage surges on network cables. Status LEDs indicate link activity, speed, and communication errors clearly. Therefore, this LAN board provides reliable network connectivity for critical turbine control applications.
| Parameter | Detailed Specification |
|---|---|
| Series | Mark V |
| Network Ports | 2 (Ethernet, 10/100Base-T) |
| Redundancy Mode | Active/standby (automatic failover) |
| Protocol | GE proprietary + TCP/IP |
| Connector Type | 2 x RJ45 (shielded) |
| Isolation | Transformer (1500V) |
| Status LEDs | 6 (LINK, ACTIVE, SPEED, FAULT, TX, RX) |
| Input Voltage | 5V DC from backplane |
| Power Consumption | 5W typical |
| Dimensions | 10.0 in x 7.0 in x 1.5 in (25.4 cm x 17.8 cm x 3.8 cm) |
| Weight | 0.9 lbs (0.41 kg) |
| Component Count | Over 130 surface-mount devices |
| Main Connector | One 64-pin male DIN connector |
| Memory | 512 KB (buffer and configuration) |
| Energy Storage | 220 µF (filtering capacitance) |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +70°C |
| Humidity Range | 20% to 95% RH (non-condensing) |
Installation & Network Configuration
You insert the GE DS200SLCCG2A DS200SLCCG2AHH into a standard Mark V rack slot. The 64-pin DIN connector mates directly with the backplane for data exchange. Connect your Ethernet cables to both RJ45 ports for redundant operation. The board automatically negotiates link speed and duplex settings after power-up. Consequently, the LAN board provides seamless integration with plant control networks.
Operational Advantages & Redundant Communication
The GE DS200SLCCG2A DS200SLCCG2AHH uses dual network ports for critical communication paths. A green LINK LED illuminates when each port establishes a valid network connection. A yellow ACTIVE LED indicates which port currently handles data transmission. The board automatically switches to the backup port within milliseconds of a cable failure. Therefore, this LAN communication board delivers reliable network connectivity for Mark V turbine control systems.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
