Why This Control Board Manages Your Turbine System

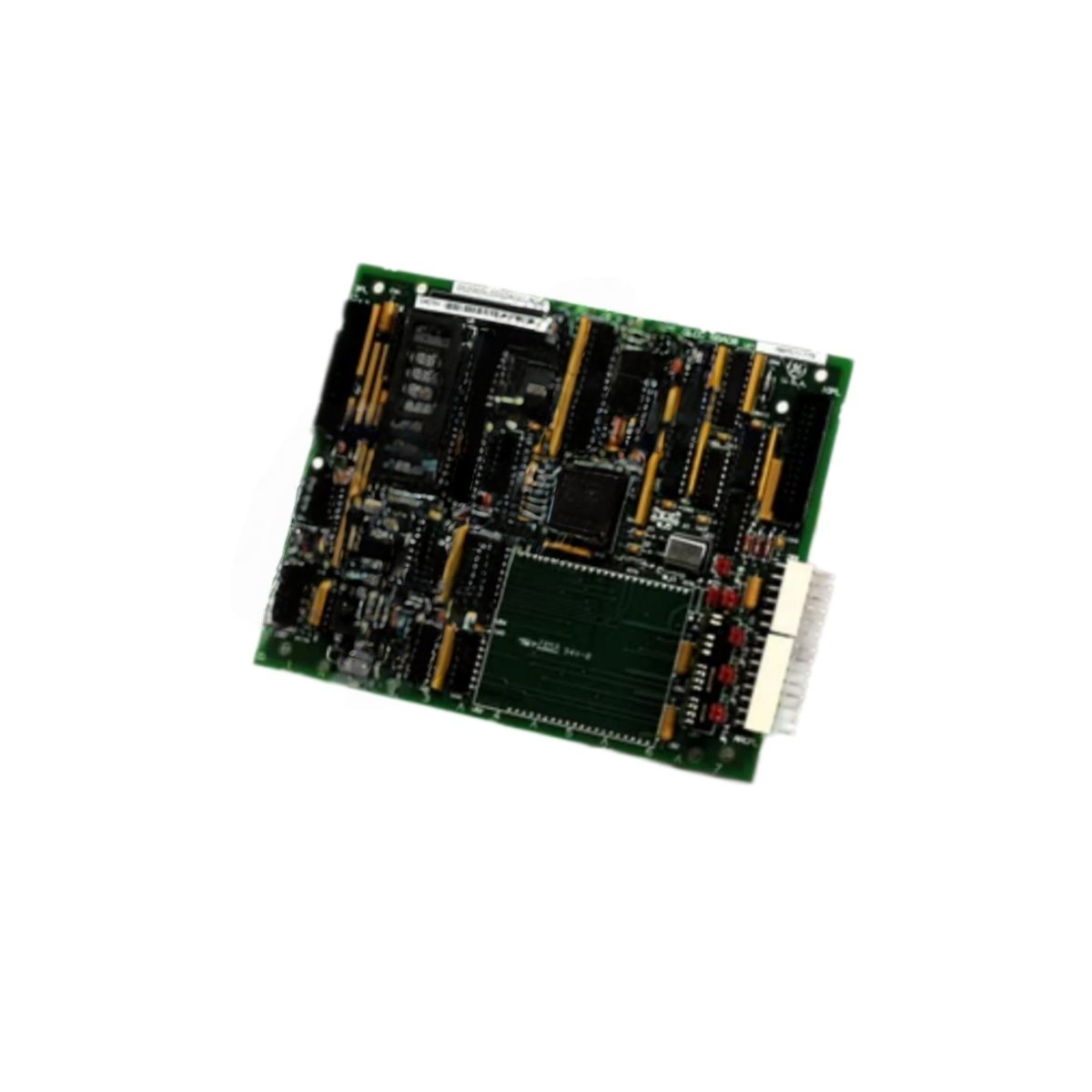

This control board handles I/O communication for Mark V DS200 turbine controls. You get a reliable GE DS200SLCCG2A DS200SLCCG2AGH for industrial power generation. It processes analog and digital signals from field sensors. Therefore, your turbine operates safely within specified parameters.
Technical Specifications and Physical Details
The GE DS200SLCCG2A DS200SLCCG2AGH features multiple communication ports for external devices. It includes both discrete and analog I/O channels on one board. This module plugs into a dedicated rack slot. Its dimensions measure approximately 280 mm in width and 160 mm in height. The unit weighs around 0.52 kg for straightforward installation. This control board stores configuration data in non-volatile flash memory. Consequently, your settings remain intact even after a complete power loss.
Below is the detailed breakdown of the hardware specifications.
| Parameter | Specification |
|---|---|
| Product Model | DS200SLCCG2A DS200SLCCG2AGH |
| Product Type | Control Board |
| Brand | GE (General Electric) |
| Family | Mark V DS200 |
| I/O Type | Discrete + analog |
| Communication Ports | Multiple serial interfaces |
| Memory Type | Non-volatile flash |
| Slot Requirement | 1 dedicated rack slot |
| Dimensions (W x H) | Approx. 280 x 160 mm |
| Approx. Weight | 0.52 kg |
| Energy Storage | Flash memory |
| Component Count | Single populated PCB |
Installation and Integration Notes
This board slides into any compatible Mark V rack slot. You must align the card properly with the backplane connectors. The GE DS200SLCCG2A DS200SLCCG2AGH requires configuration software for setup. Therefore, connect a programming terminal before commissioning. Always handle this board with proper ESD protection. Static discharge will damage sensitive control circuits.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
