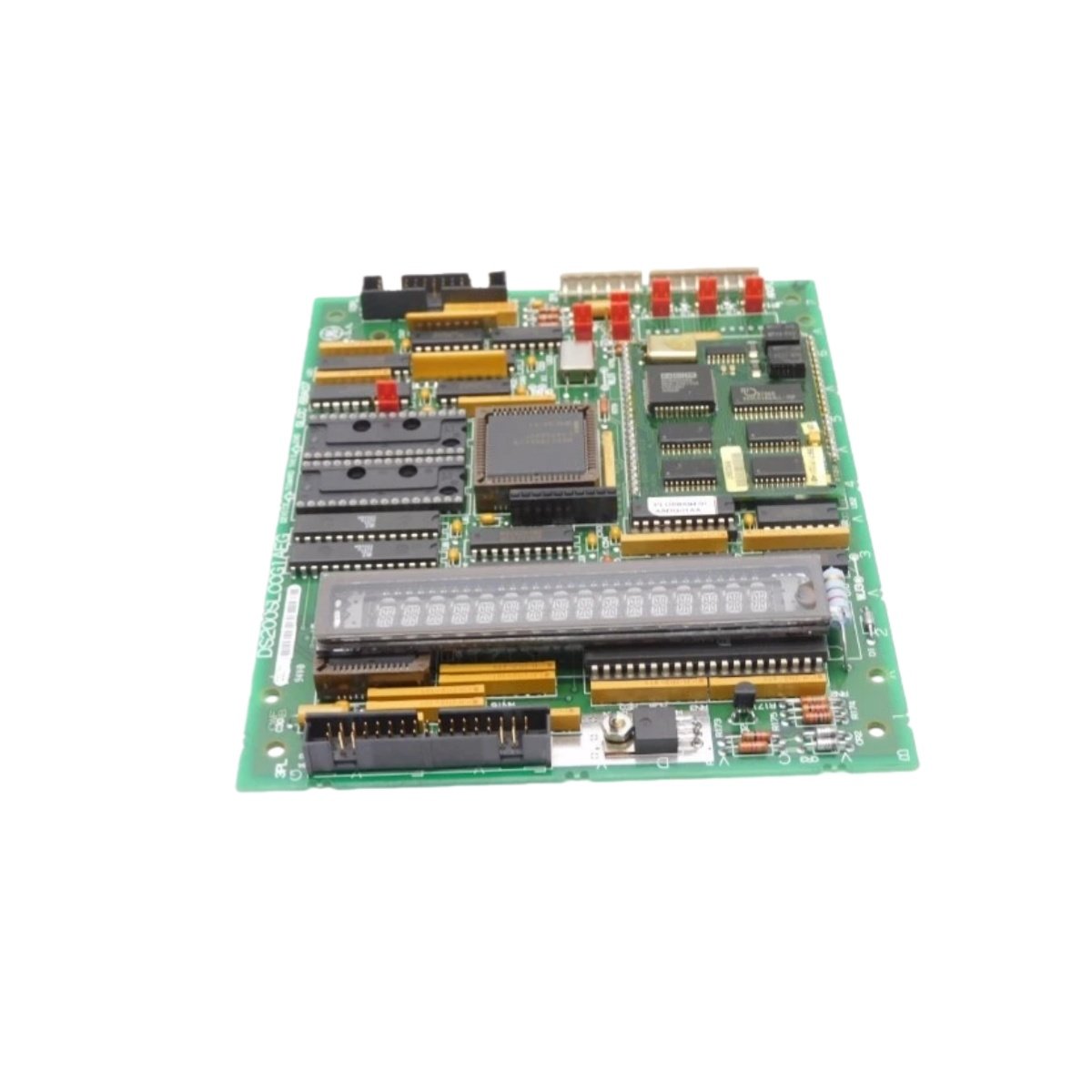

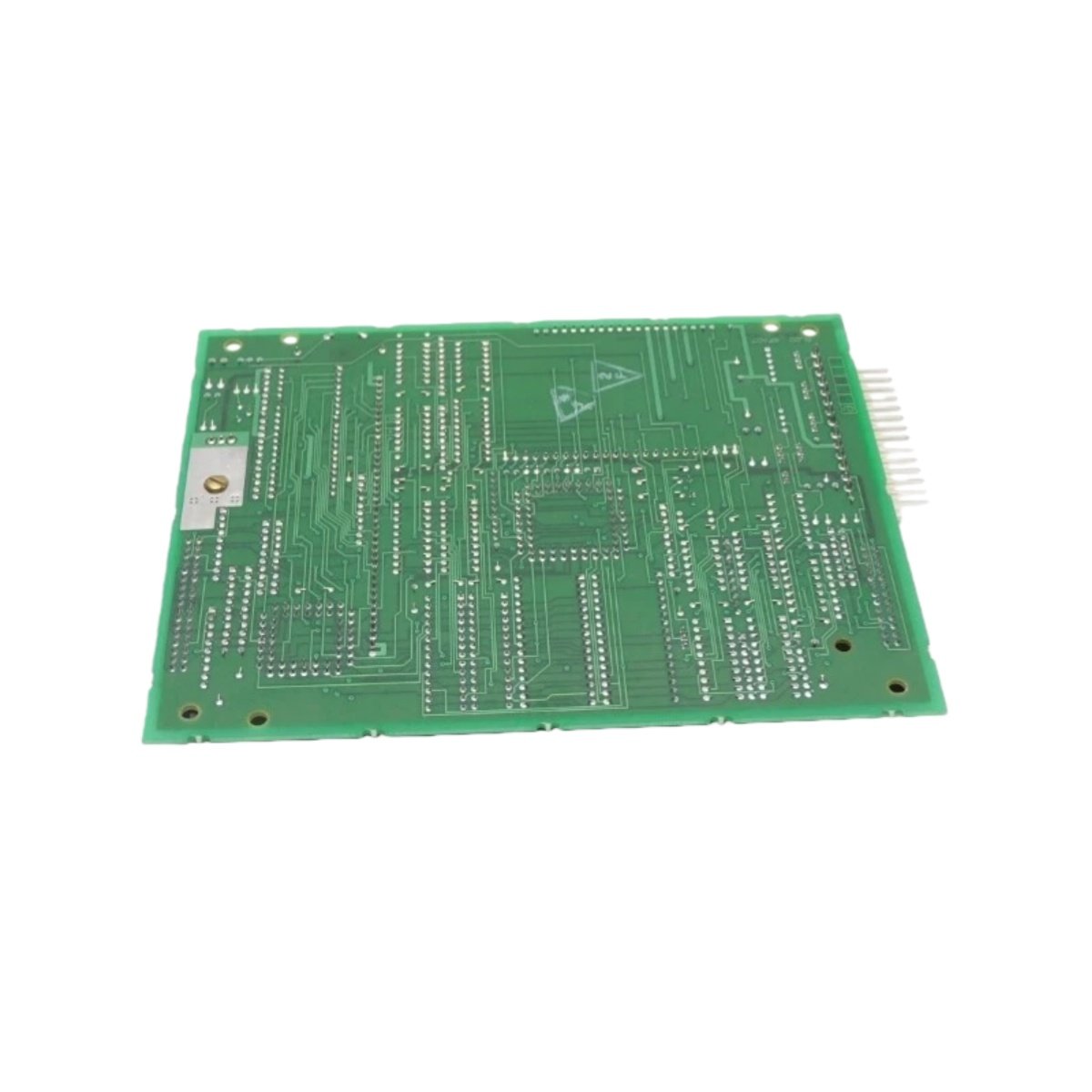

This PLC module serves as a communication processor for GE Mark V turbine control systems. It handles data exchange between the main controller and remote devices. Therefore, this component suits power generation and turbine management applications.

Physical Dimensions and Weight Specifications

The GE DS200SLCCG1AEG features a standard PCB form factor for rack mounting. Its board dimensions measure 267 mm in height for vertical insertion. The total depth reaches 305 mm for backplane connectivity. Consequently, technicians can install this board in Mark V drive cabinets.

Interface Types and Connection Layout

The GE DS200SLCCG1AEG provides one RS-232 port for local programming. A second RS-485 port supports Genius I/O bus communication. The front panel carries LED indicators for network and module status. Hence, operators can verify communication health at a quick glance.

Component Count and Onboard Memory

This PLC module contains one main board with a 16-bit microprocessor. The board holds 128 KB of dual-port RAM for data exchange. You will also find 256 KB of flash memory for firmware storage. An onboard real-time clock timestamps all diagnostic messages.

Energy Storage and Power Consumption

The GE DS200SLCCG1AEG draws 400 mA from the 5V backplane supply. A small supercapacitor retains the real-time clock for 72 hours. This storage maintains timestamp continuity during brief power interruptions. Therefore, diagnostic logs remain accurate after system restarts.

Communication Performance and Load Reduction

The module processes up to 300 messages per second independently. It handles all network traffic without CPU intervention. This coprocessor allows the main processor to focus on control logic. Consequently, system performance improves for critical turbine regulation tasks.
