Network Communication for AC2000 Drive Systems

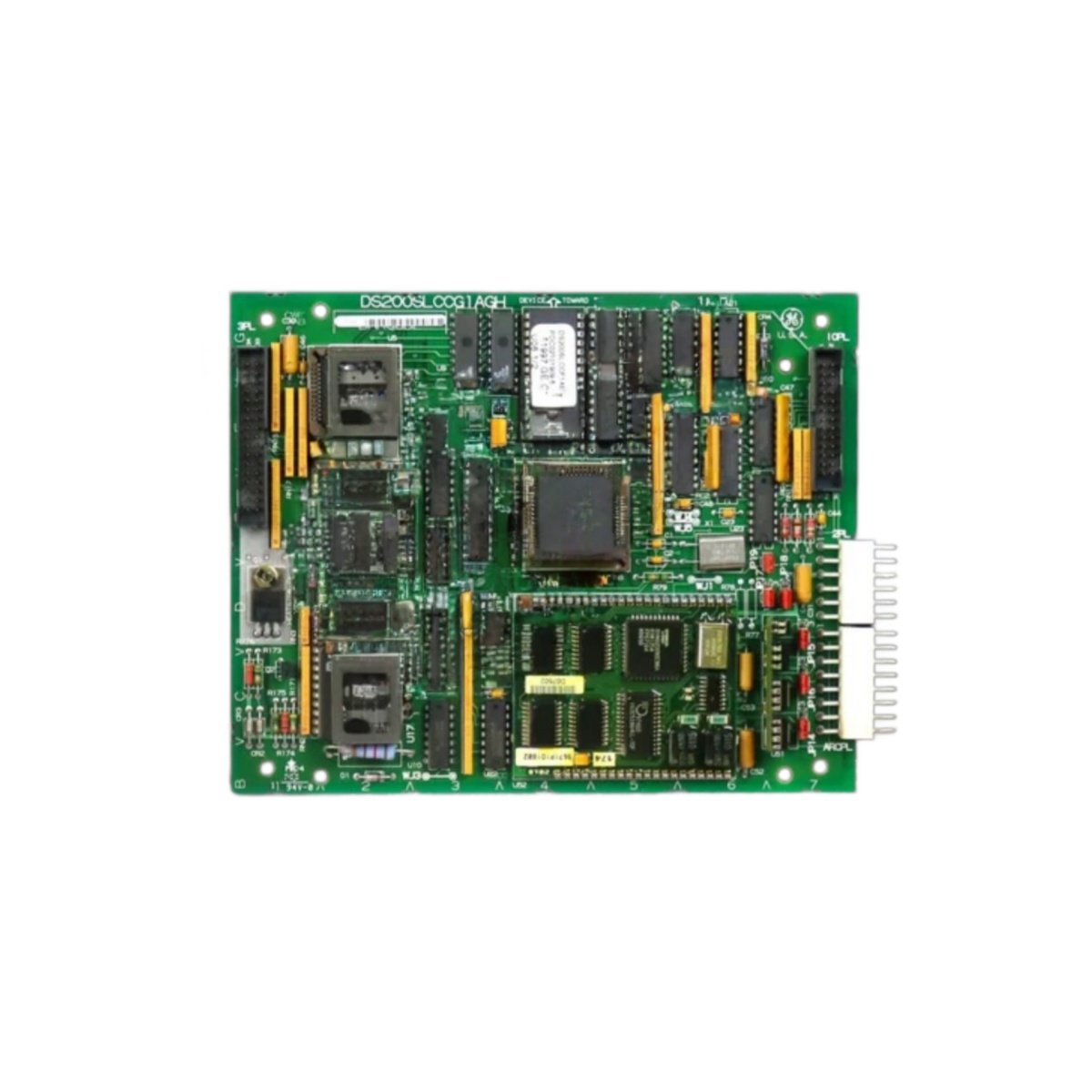

The GE DS200SLCCG1A DS200SLCCG1AGH provides high-speed LAN communication for AC2000 drives. This card enables data exchange between multiple drives and host systems. It supports industry-standard protocols for seamless integration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | DS200SLCCG1A DS200SLCCG1AGH |
| Category | LAN Communication Card |
| Height | 250 mm |
| Width | 120 mm |
| Depth | 30 mm |
| Weight | 0.430 kg |
| LAN Protocol | Ethernet (10BASE-T/100BASE-TX) |
| Data Rate | 10 or 100 Mbps (auto-sensing) |
| Physical Layer | Twisted-pair (RJ45) |
| Protocol Support | Modbus TCP/IP, PROFINET, EtherNet/IP |
| Maximum Connections | 32 simultaneous |
| Network Topology | Star (switch required) |
| Cable Type | CAT5e or higher (shielded recommended) |
| Maximum Cable Length | 100 meters per segment |
| Web Server | Built-in (diagnostics and configuration) |
| Email Alerts | Yes (SMTP client) |
| Connector Type | 1 x RJ45 (shielded) |
| Status Indicators | 4 x LEDs (PWR, LINK, ACT, FLT) |
| Internal Components | 1 Ethernet controller, 1 flash memory, 1 transformer, 1 oscillator |
| Energy Storage | 100 µF backup capacitor |
Network Architecture and Protocol Support
The GE DS200SLCCG1A DS200SLCCG1AGH uses a 10/100BASE-TX Ethernet interface. This card auto-negotiates the correct speed with network switches. It supports Modbus TCP/IP for drive-to-drive communication. The DS200SLCCG1A DS200SLCCG1AGH also handles PROFINET and EtherNet/IP protocols. A built-in web server provides remote diagnostics using any browser. The card maintains up to 32 simultaneous network connections.
Web Server and Diagnostic Capabilities
This LAN communication card features a built-in web server for remote access. You can view drive status and parameters using any standard browser. The web server displays diagnostic information without additional software. The GE DS200SLCCG1A DS200SLCCG1AGH also includes an SMTP client for email alerts. It sends email notifications for fault conditions and warnings. Four status LEDs provide immediate visual feedback about network activity.
Data Exchange and Communication Performance
The GE DS200SLCCG1A DS200SLCCG1AGH exchanges data at 10 or 100 Mbps speeds. It supports both client and server modes for Modbus TCP/IP. The card transfers up to 512 registers of data per transaction. It handles multiple simultaneous requests without slowing down. The DS200SLCCG1A DS200SLCCG1AGH cycles data at 10 milliseconds typical. Its 32-connection capacity suits multi-drive coordinated systems.
Physical Dimensions and Installation Guidelines
The GE DS200SLCCG1A DS200SLCCG1AGH weighs 0.430 kilograms for secure mounting. Its height measures 250mm, width 120mm, and depth 30mm. Install this card in the communication slot of AC2000 drives. The card consumes 3.5 watts from the internal power supply. It operates reliably from 0°C to +50°C ambient temperature. Use a shielded CAT5e or CAT6 Ethernet cable for best performance.
Energy Storage and Configuration Retention
The DS200SLCCG1A DS200SLCCG1AGH uses a 100 µF capacitor for temporary energy storage. This capacitor retains network configuration during brief power interruptions. It holds IP address and communication settings for up to 10 seconds. The card stores permanent configuration in non-volatile flash memory. Hence, the GE DS200SLCCG1A DS200SLCCG1AGH requires no battery for data retention. You will never perform battery replacement on this communication card.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
