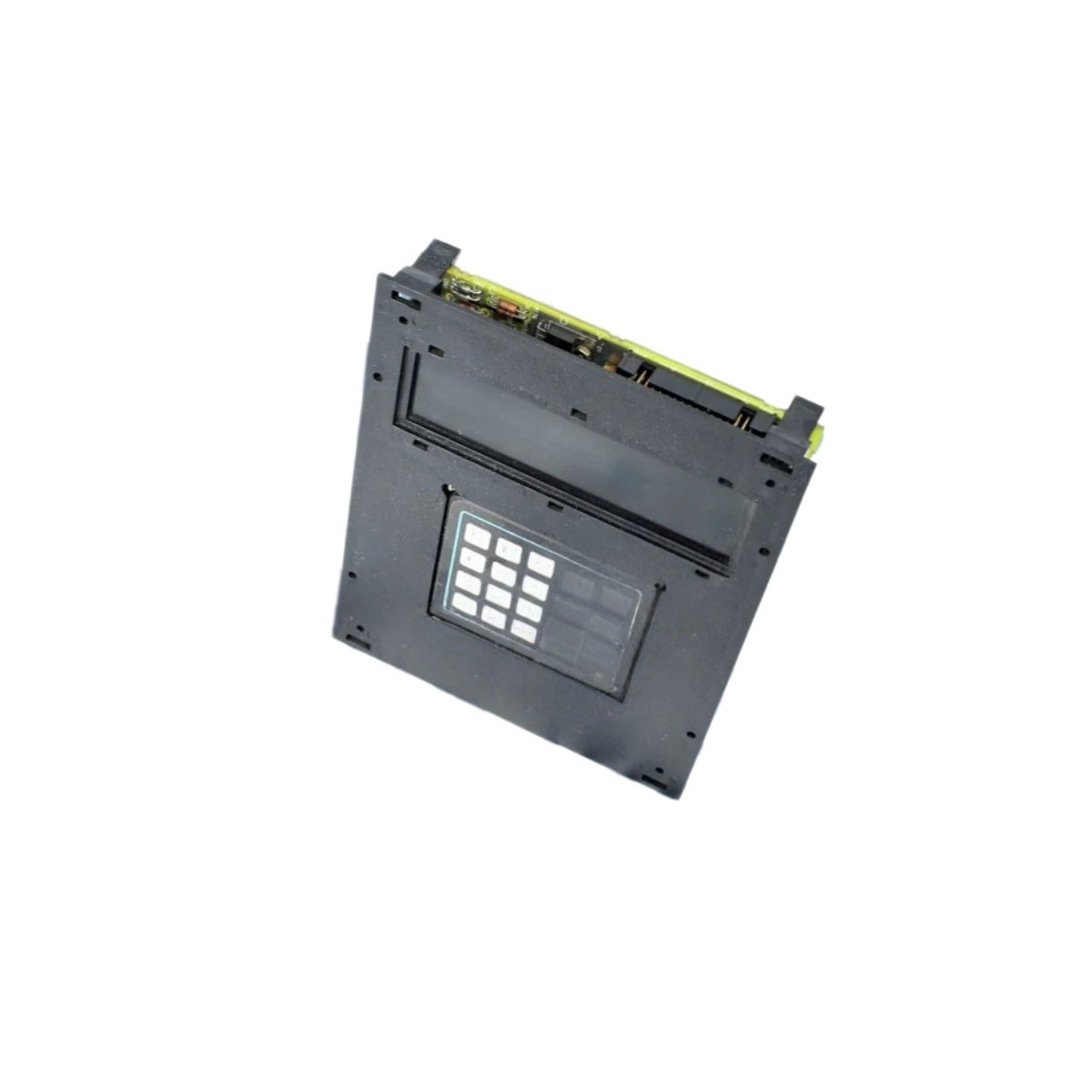

The GE DS200SLCCG1A DS200SLCCG1AEF DS215SLCCG1AZZ01A enables PC communication for Speedtronic turbine control systems. This communication board provides a high-speed serial link between the turbine controller and external computers. It supports data logging, trending, and remote monitoring functions. Weighing only 0.35 kg, the GE DS200SLCCG1A DS200SLCCG1AEF DS215SLCCG1AZZ01A mounts inside Speedtronic control cabinets. Its dimensions measure 230 mm x 140 mm x 28 mm.
Communication Specifications and Protocol Features
The GE DS200SLCCG1A DS200SLCCG1AEF DS215SLCCG1AZZ01A supports RS-232 and RS-485 communication interfaces. This board handles baud rates from 9,600 to 115,200 for flexible network speeds. It provides optical isolation between the controller and PC communication lines. Moreover, the GE DS200SLCCG1A DS200SLCCG1AEF DS215SLCCG1AZZ01A includes built-in protocol conversion for seamless data exchange. Consequently, you can connect standard PC software directly to the turbine controller.
Diagnostic Features and Energy Storage
The GE DS200SLCCG1A DS200SLCCG1AEF DS215SLCCG1AZZ01A contains no internal battery for maintenance-free operation. This board draws 200 mA from the 5 V DC and 24 V DC power supplies. It includes LED indicators for power, transmit, receive, and fault status. The GE DS200SLCCG1A DS200SLCCG1AEF DS215SLCCG1AZZ01A features test points for signal verification. Therefore, technicians can diagnose communication issues without special equipment.
Technical Specifications Table
Below are the complete technical parameters for engineers and procurement teams:
| Parameter | Specification |
|---|---|
| Full Product Name | GE DS200SLCCG1A DS200SLCCG1AEF DS215SLCCG1AZZ01A |
| Product Category | Speedtronic PC Communication Board |
| Physical Interfaces | RS-232, RS-485 |
| RS-232 Connector | 9-pin SUB-D female |
| RS-485 Connector | 5-pin screw terminal block |
| Baud Rates Supported | 9,600, 19,200, 38,400, 57,600, 115,200 |
| Communication Distance (RS-232) | 15 meters (50 feet) maximum |
| Communication Distance (RS-485) | 1,200 meters (4,000 feet) maximum |
| Optical Isolation | 1,500 V AC between controller and PC |
| Protocol Conversion | Built-in (proprietary to Modbus/ASCII) |
| Data Logging Support | Yes (real-time and historical) |
| Remote Monitoring | Yes |
| Diagnostic Features | Loopback test, error counters |
| LED Indicators | Power (green), TX (yellow), RX (yellow), Fault (red) |
| Test Points | 8 (voltage, data, clock signals) |
| Connector Types (Controller Side) | 20-pin header, 10-pin header |
| Current Consumption (5V DC) | 120 mA |
| Current Consumption (24V DC) | 80 mA |
| Power Dissipation | 1.2 W maximum |
| Energy Storage | No battery (flash memory only) |
| Number of Components | 1 PCB + 2 connectors + 2 communication ports + 4 LEDs + 8 test points |
| PCB Material | FR-4 epoxy glass |
| Number of Layers | 4-layer board |
| Net Weight | 0.35 kg (350 grams) |
| Gross Weight (packaged) | 480 grams |
| Dimensions (L x W x H) | 230 mm x 140 mm x 28 mm |
| Mounting Type | 4 x M4 screws (panel mount) |
| Wire Size (Terminals) | AWG 24 to AWG 14 (0.2 mm² to 2.5 mm²) |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Tolerance | 5% to 95% non-condensing |
| Certifications | CE, UL, CSA |
Installation and Application Details
The GE mounts inside the Speedtronic control cabinet using four M4 screws. Connect the board to the controller backplane using the 20-pin and 10-pin headers. Attach the PC communication cable to the RS-232 or RS-485 port as needed. The GE DS200SLCCG1A DS200SLCCG1AEF DS215SLCCG1AZZ01A requires configuration software for baud rate and protocol settings. Use the test points during troubleshooting and verification procedures. This communication board suits GE Speedtronic turbine control systems for power generation applications. It also works perfectly for connecting operator workstations, data loggers, and remote monitoring systems. Thus, the GE DS200SLCCG1A DS200SLCCG1AEF DS215SLCCG1AZZ01A provides reliable PC communication for critical turbine control systems.
