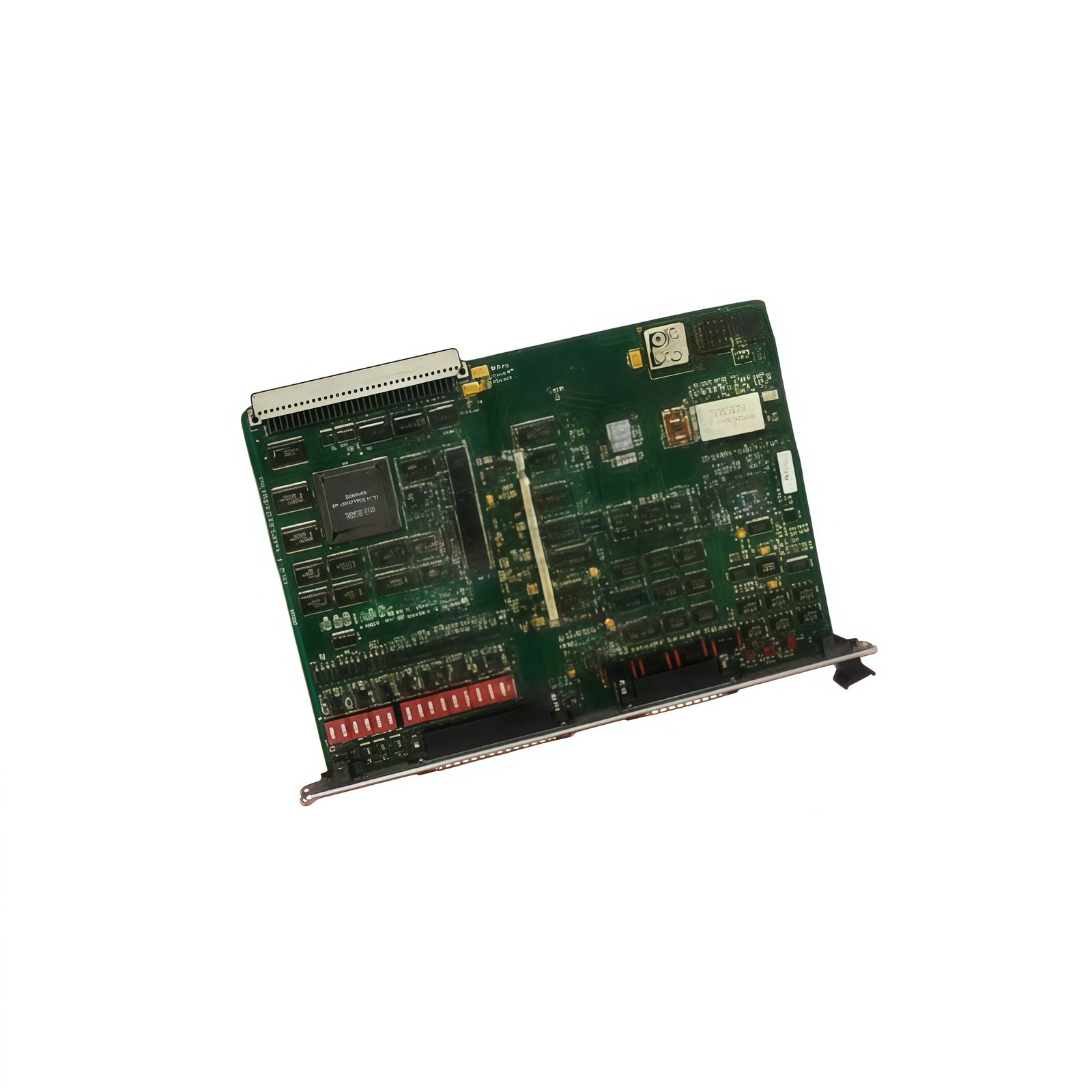

This board manages digital and analog signals for Mark V turbine controls. The GE DS200SIOBG1A DS200SIOBG1AAA interfaces between field devices and the main processor. It measures 250 mm in width and 180 mm in height. This unit weighs approximately 0.58 kg for panel mounting.
Technical Specifications Table
| Parameter | Value |
|---|---|
| Product Model Pair | DS200SIOBG1A DS200SIOBG1AAA |
| Brand | GE Energy / General Electric |
| Category | I/O Control Board / Signal Interface |
| Compatible Series | Mark V Turbine Control |
| Digital Inputs | 16 channels (24 V DC) |
| Digital Outputs | 8 channels (24 V DC, 0.5 A) |
| Analog Inputs | 4 channels (4-20 mA or 0-10 V) |
| Analog Outputs | 2 channels (4-20 mA) |
| Dimensions (W x H x D) | 250 mm x 180 mm x 30 mm |
| Weight | 0.58 kg |
| Connector Types | 2 x 20-pin terminal blocks, 1 x ribbon header |
| Internal Components | 1 x 16-bit CPU, 1 x ADC, 1 x DAC |
| User Memory | 128 KB flash for configuration |
| Energy Storage | 2 x 470 µF filtering capacitors |
| Electrical Isolation | 1500 V RMS between field and logic |
| Operating Voltage | 24 V DC external supply |
| Power Consumption | 300 mA maximum |
| LED Indicators | 8 x status (Power, Run, Fault, I/O) |
| Operating Temperature | -30°C to 65°C |
Internal Design and Signal Processing
This I/O board uses a 16-bit CPU for signal conditioning and communication. An ADC converts analog inputs to digital values for the main processor. The GE DS200SIOBG1A DS200SIOBG1AAA provides 16 digital inputs and 8 digital outputs for field devices. Four analog input channels accept 4-20 mA or 0-10 V signals. Two analog output channels drive actuators with 4-20 mA current loops. Consequently, this board serves as a complete I/O interface for turbine control applications.
Installation and Wiring Guide
First, mount this I/O control board onto standoffs inside your control cabinet. Next, connect a 24 V DC power supply to the designated terminals. Then, wire your digital sensors to the input terminals (channels 1-16). Connect your digital loads to the output terminals (channels 1-8). Wire analog sensors to the 4-20 mA input terminals with shielded cables. Use twisted-pair cables for analog outputs to reduce noise interference. The board provides LED indicators for power, run status, and fault conditions. This I/O board works with all Mark V turbine control systems and compatible field devices.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
