High-Power SCR Bridge Control for DC Drives

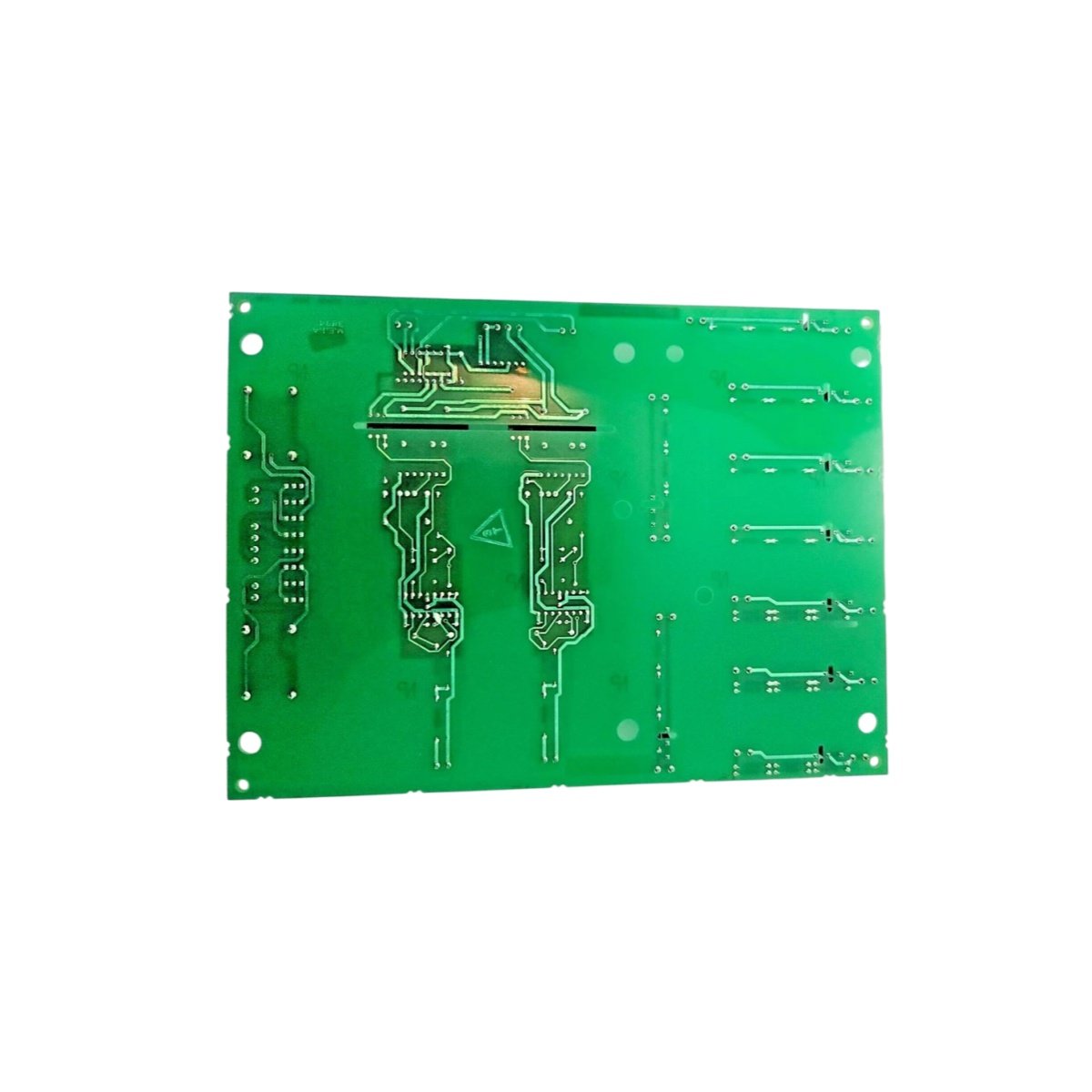

The GE DS200SHVMG1AED serves as a high-voltage M-frame interface board for the EX2000 series DC drive systems. This board manages the SCR power bridge with precise gating signals for motor speed and torque regulation . It provides six gate signals in individual pairs to control the three-phase bridge configuration . Furthermore, the DS200SHVMG1AED receives firing signals from the digital signal processor board for accurate phase control . Its application-specific design makes it suitable for heavy-duty industrial motors and high-power DC drive systems .
Connector Configuration and Signal Interface

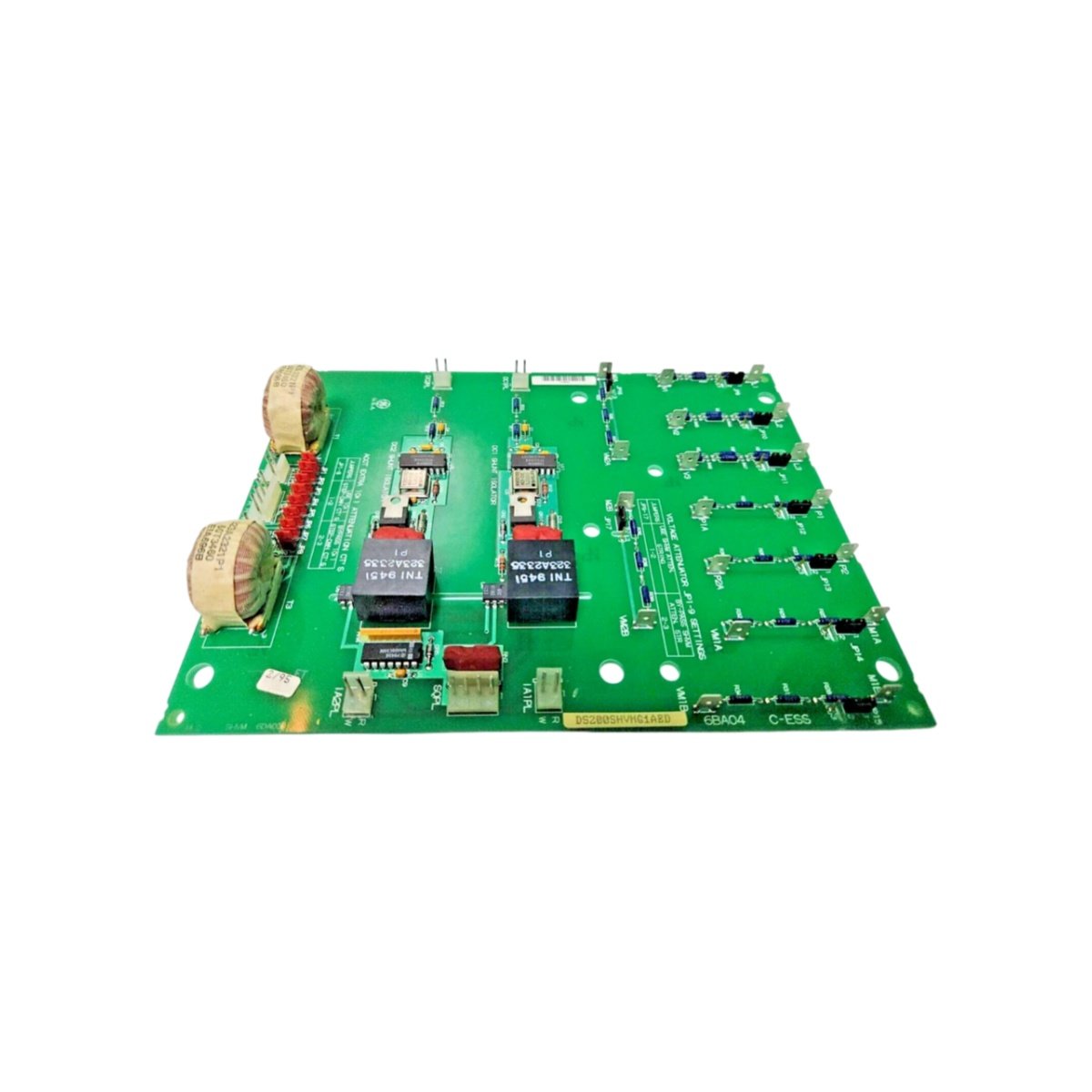

This interface board features five 34-pin connectors: P1 (Power), P2 (Motor Interface), P3 (Control), P4 (Gate) and P5 (Power) . The board also includes a JS jumper for selecting either external or internal excitation . An LED indicator provides visual confirmation that the microprocessor has initialized the board correctly . The DS200SHVMG1AED connects to other drive components through a series of ribbon cables for seamless communication . Additional test points allow technicians to measure key signals during commissioning and troubleshooting .
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | DS200SHVMG1AED |
| Manufacturer | GE / General Electric |
| Product Type | M-Frame SCR Interface Board |
| Application | High-power DC drive control (EX2000 series) |
| Gate Signals | 6 firing signals (individual pairs) |
| Connectors | 5 x 34-pin headers: P1, P2, P3, P4, P5 |
| Jumper | JS (selects external or internal excitation) |
| Status Indicator | 1 LED (microprocessor initialize) |
| Board Thickness | 2.4 mm (0.093 in) |
| Copper Layer Count | 4-layer PCB |
| Mounting | DIN rail or panel mount |
| Temperature Range | –30°C to +65°C |
| Humidity | 5% to 95%, non-condensing |
| Certifications | CE, UL |
| Country of Origin | USA |
Maintenance and System Integration
The DS200SHVMG1AED uses four layers of copper traces for robust current handling . The board may experience faults in the gate driver circuit, capacitors, or optocouplers over time . GE recommends replacing aged boards to maintain optimal drive performance . Regular inspection of the LED status during power-up helps verify proper initialization . Consequently, maintenance engineers rely on this board for reliable SCR control in demanding metal processing, mining, and heavy manufacturing applications .
