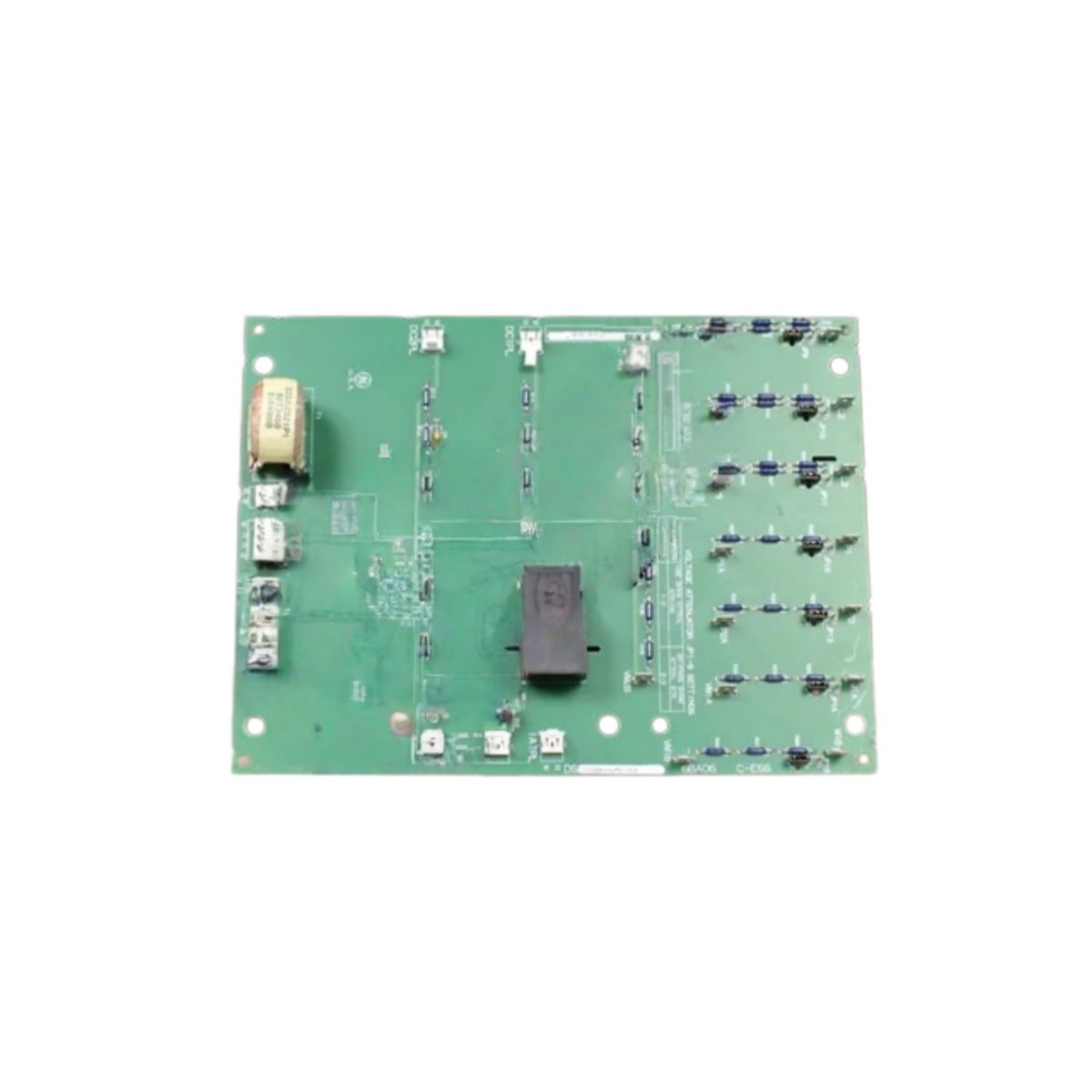

The GE DS200SHVMG1A DS200SHVMG1AGE control silicon-controlled rectifiers for power regulation. These SCR M-frame boards serve the GE Mark V Turbine Control System. You can use either board to manage excitation field current and generator output. The units provide gate drive signals to large SCR power stacks.

SCR and Electrical Specifications

The GE DS200SHVMG1A DS200SHVMG1AGE drive six SCRs in a three-phase bridge configuration. These SCR M-frame boards generate pulsed gate signals for reliable firing. You can control firing angles from 0 to 180 degrees continuously. The units provide 5000 VAC isolation between logic and power sections.

Physical Dimensions and Weight

Each SCR M-frame board weighs 0.72 kg for secure chassis mounting. The unit measures 305 mm long by 178 mm wide. Its PCB thickness reaches 1.6 mm with six internal copper layers. You can mount either board using six M4 screws through the designated holes.

Interface and Connection Points

Two 50-pin ribbon cable headers connect to the main turbine controller. Six coaxial connectors carry gate drive signals to external SCR modules. The GE DS200SHVMG1A DS200SHVMG1AGE include six feedback inputs for voltage and current sensing. You will find 12 LED indicators showing gate status and fault conditions. Additionally, eight test points provide access for oscilloscope probing.

Energy Storage and Internal Circuitry

These SCR M-frame boards store significant energy for gate drive pulses. Twenty-four electrolytic capacitors provide 1,800 µF of total bulk storage. These capacitors supply peak current during SCR turn-on events. The boards do not contain any battery for configuration retention. An onboard FPGA manages firing pulse timing and fault detection.

Component Layout and Construction

Six high-current MOSFETs drive the gate isolation transformers. Each channel includes a dedicated pulse transformer for isolation. You will find 128 resistors, 86 capacitors, and 16 integrated circuits on the board. The GE DS200SHVMG1A DS200SHVMG1AGE include under-voltage lockout and over-current shutdown circuits. A thick conformal coating protects the board from dust and humidity.

Variant Equivalence and Use

The GE DS200SHVMG1AGE represents a functional equivalent or later revision. Both versions share identical dimensions, connectors, and mounting hole locations. You can substitute one for the other without hardware modifications. Transitioning to these boards restores SCR firing control to Mark V systems. Use GE DS200SHVMG1A DS200SHVMG1AGE for generator excitation or motor drive applications. For best results, verify proper gate cable connections before applying power.
