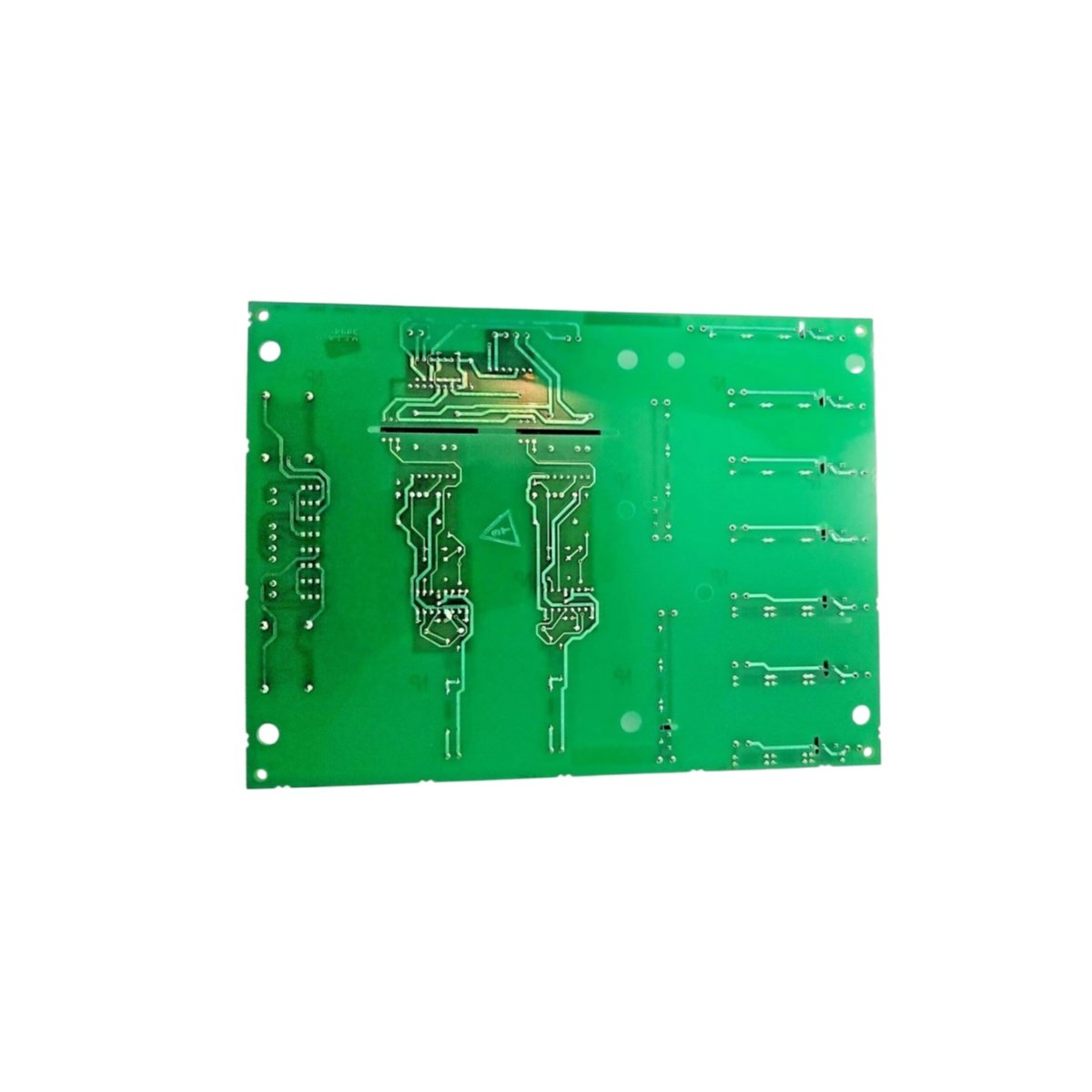

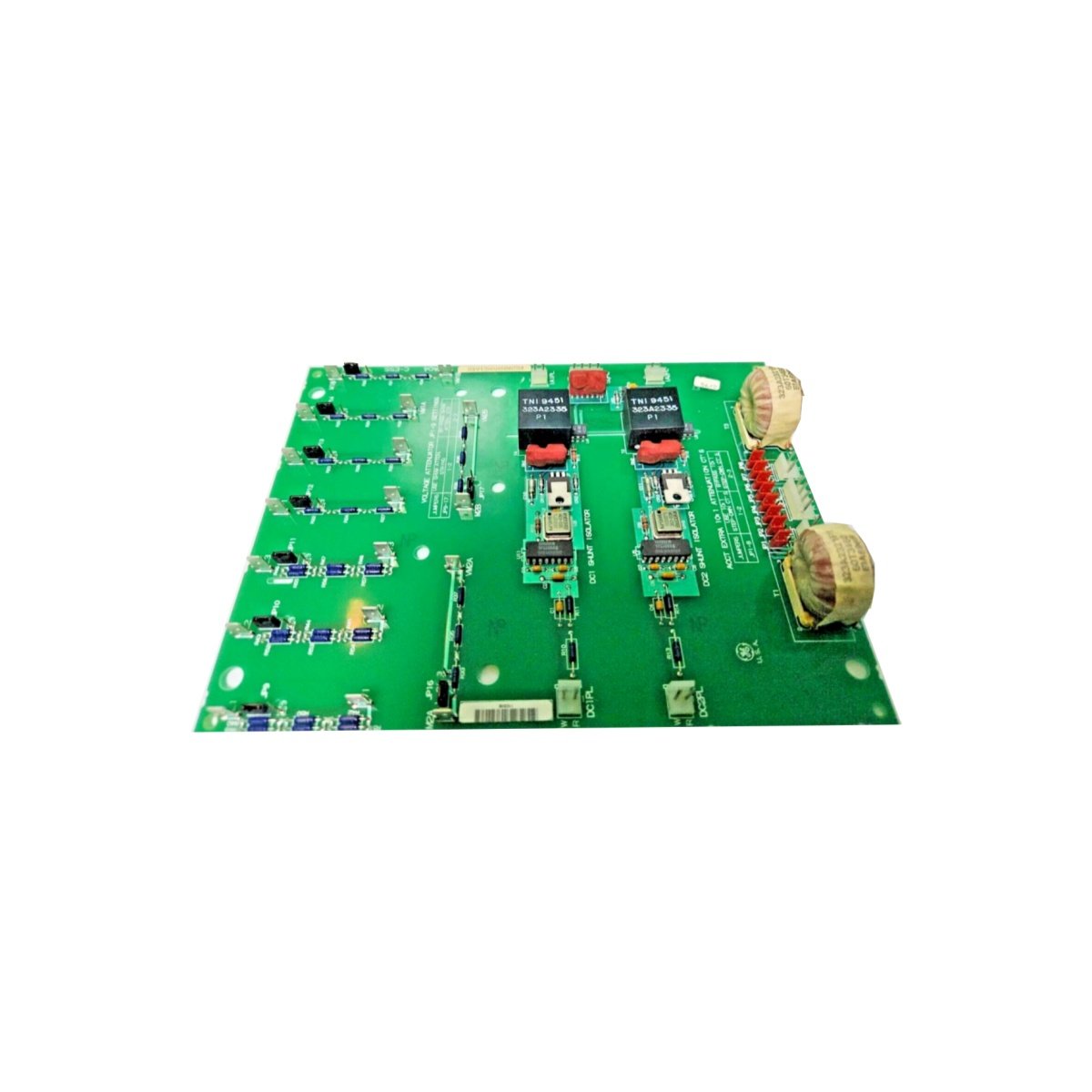

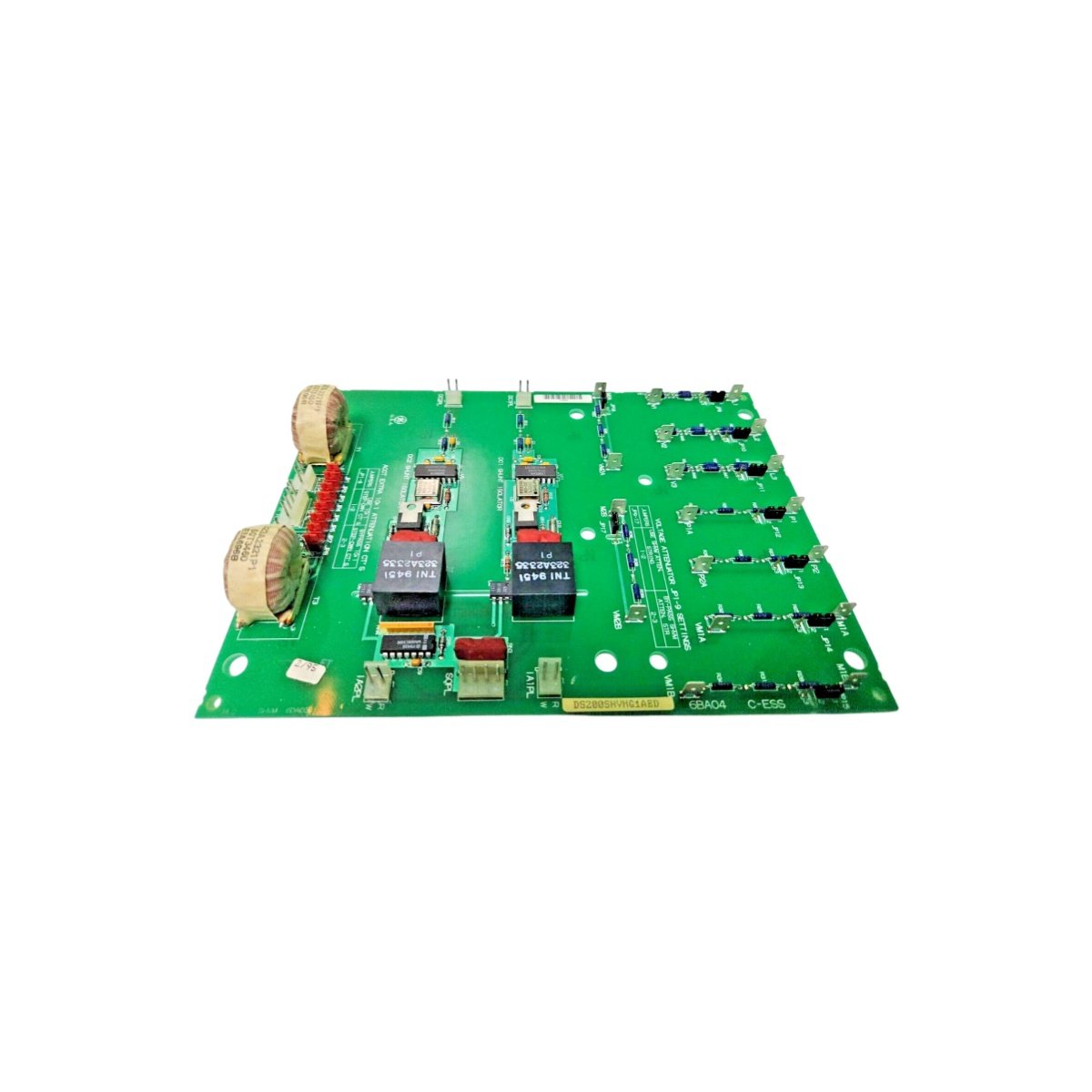

This board interfaces high voltage signals with Mark V turbine control systems. The GE DS200SHVMG1A DS200SHVMG1AED provides isolation and signal conditioning for M-frame drives. It measures 250 mm in width and 180 mm in height. This unit weighs approximately 0.62 kg for panel mounting.
Technical Specifications Table
| Parameter | Value |
|---|---|
| Product Model Pair | DS200SHVMG1A DS200SHVMG1AED |
| Brand | GE Energy / General Electric |
| Category | High Voltage M-Frame Interface Board |
| Compatible Series | Mark V Turbine Control, M-Frame Drives |
| Input Voltage Range | 0 to 1000 V AC / DC |
| Output Voltage Range | 0 to 10 V DC |
| Number of Channels | 6 isolated inputs |
| Attenuation Ratio | 100:1 |
| Isolation Voltage | 5000 V RMS between input and output |
| Dimensions (W x H x D) | 250 mm x 180 mm x 30 mm |
| Weight | 0.62 kg |
| Connector Types | 2 x 20-pin terminal blocks, 1 x ribbon header |
| Internal Components | 6 x precision resistor dividers, 6 x isolation amplifiers |
| Energy Storage | 6 x 100 µF filtering capacitors |
| Accuracy | ±0.5% of full scale |
| Bandwidth | 500 Hz typical |
| Operating Voltage | 24 V DC external supply |
| Power Consumption | 200 mA maximum |
| LED Indicators | 1 x Power, 1 x Fault |
| Operating Temperature | -30°C to 65°C |
Internal Design and High Voltage Isolation
This interface board uses six precision resistor dividers for voltage scaling. Isolation amplifiers provide 5000 V RMS electrical separation for safety. The GE DS200SHVMG1A DS200SHVMG1AED accepts up to 1000 V AC or DC on each channel. The board scales these high voltages down to a safe 0 to 10 V output. Six 100 µF capacitors filter power supply ripple for clean operation. Consequently, this device protects sensitive control circuits from high-voltage damage in M-frame drives.
Installation and Wiring Guide
First, mount this interface board onto standoffs inside your control cabinet. Next, connect a 24 V DC power supply to the designated terminals. Then, wire your high voltage signals to the input terminals (channels 1-6). Connect the output terminals to your analog input module for voltage monitoring. Use high-voltage rated cables for all input connections. Maintain adequate clearance between high-voltage and low-voltage wiring. The board provides 5000 V RMS isolation for operator safety. This interface board works with Mark V turbine control systems and M-frame high voltage drives. Always verify the input voltage does not exceed 1000 V before connecting.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
