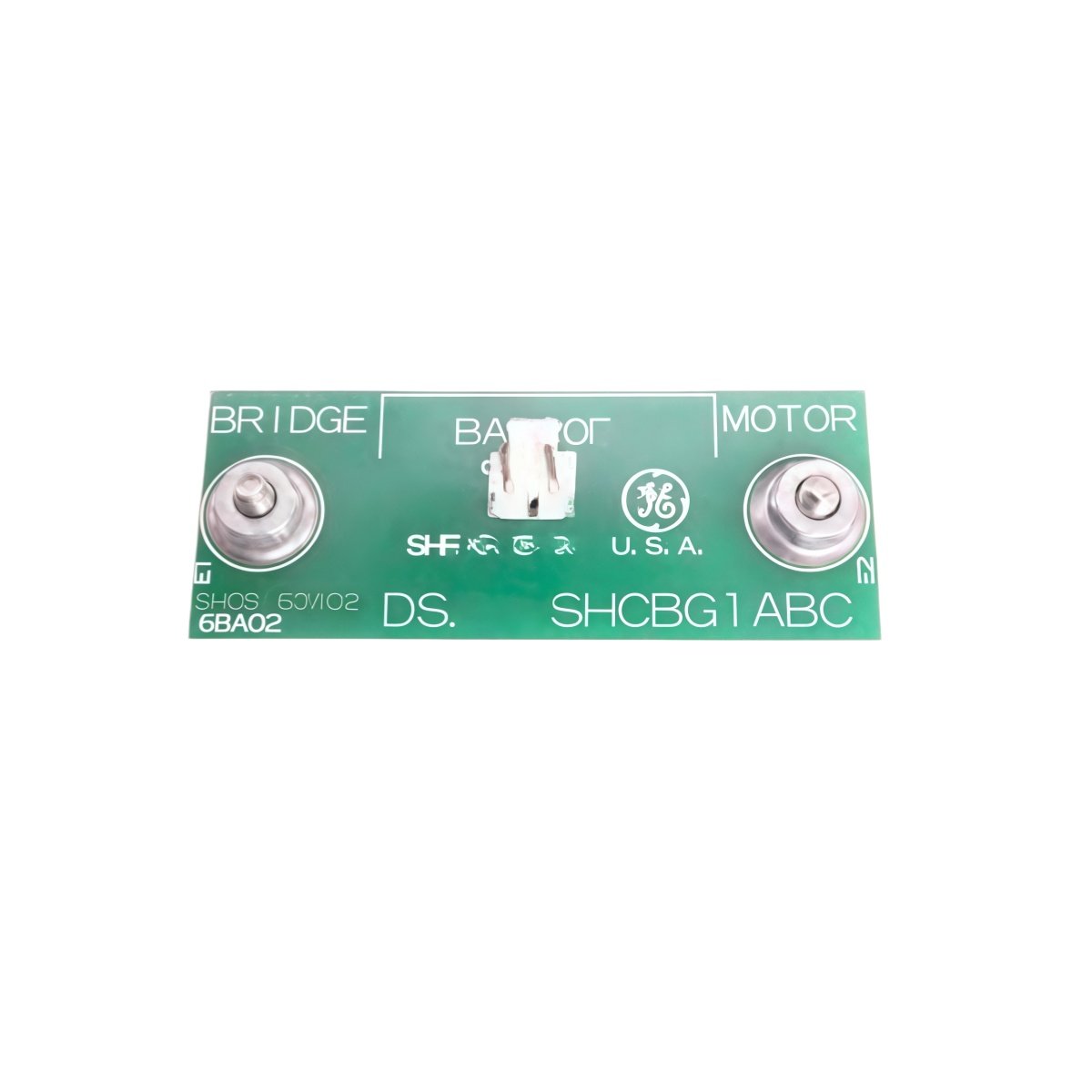

This board connects external shunt resistors to Mark V drive control circuits. The GE DS200SHCBG1A DS200SHCBG1ABC provides a reliable interface for current monitoring applications. It measures 200 mm in width and 150 mm in height. This unit weighs approximately 0.45 kg for panel mounting.
Technical Specifications Table
| Parameter | Value |
|---|---|
| Product Model Pair | DS200SHCBG1A DS200SHCBG1ABC |
| Brand | GE Energy / General Electric |
| Category | Shunt Connector Board / Interface |
| Compatible Series | Mark V Turbine Control |
| Number of Shunt Inputs | 2 channels |
| Input Signal Range | 0 to 50 mV DC (from shunt) |
| Output Signal Range | 0 to 10 V DC |
| Max Shunt Current | 2000 A (depending on external shunt) |
| Dimensions (W x H x D) | 200 mm x 150 mm x 25 mm |
| Weight | 0.45 kg |
| Connector Types | 2 x 4-pin shunt terminals, 1 x ribbon header |
| Internal Components | 2 x differential amplifiers, 2 x filter circuits |
| Energy Storage | 2 x 47 µF filtering capacitors |
| Accuracy | ±0.2% of full scale |
| Bandwidth | 5 kHz typical |
| Operating Voltage | 24 V DC external supply |
| Power Consumption | 100 mA maximum |
| LED Indicators | 1 x Power, 2 x Signal Active |
| Operating Temperature | -30°C to 65°C |
Internal Design and Signal Processing
This shunt connector board uses two differential amplifiers for signal conditioning. Filter circuits remove high-frequency noise from the incoming shunt signals. The GE DS200SHCBG1A DS200SHCBG1ABC accepts 0 to 50 mV signals from external shunts. The board converts these low-level signals to a 0 to 10 V output. Two 47 µF capacitors filter power supply ripple for clean operation. Consequently, this device provides accurate current monitoring for Mark V drive systems.
Installation and Wiring Guide
First, mount this connector board onto standoffs inside your control cabinet. Next, connect a 24 V DC power supply to the designated terminals. Then, wire your external shunt leads to the 4-pin input terminals. Use shielded twisted-pair cables for shunt connections to reduce noise. Connect the output ribbon cable to your analog input module for current monitoring. The board provides signal conditioning for shunts up to 2000 A maximum. Two LED indicators show power status and active signal presence. This shunt connector board works with Mark V drive systems and standard external shunt resistors. Always verify the shunt voltage rating matches your application requirements.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
