Technical Specifications
| Parameter | Value |
|---|---|
| Brand | GE |
| Model | DS200SHCAG1B DS200SHCAG1BAA |
| Category | Shunt Connector PCB |
| Weight | 0.78 lbs (0.35 kg) |
| Dimensions | 6.3 x 4.7 x 1.1 inches |
| PCB Layers | 2-layer heavy copper |
| Component Count | 34 discrete components |
| Shunt Connections | 4 independent positions |
| Current Rating | 200A per shunt connection |
| Voltage Rating | 1000V DC maximum |
| Terminal Type | Heavy-duty screw terminals |
| Terminal Plating | Tin over copper |
| Wire Gauge Range | 4-14 AWG |
| Bus Bar Compatibility | Standard 1-inch spacing |
| Kelvin Connections | 4-wire sensing per shunt |
| Contact Resistance | < 0.5 mΩ per connection |
| Operating Voltage | No active supply needed |
| Energy Storage | None (passive assembly) |
| Temperature Range | -20°C to 85°C |
Physical Construction and Component Layout

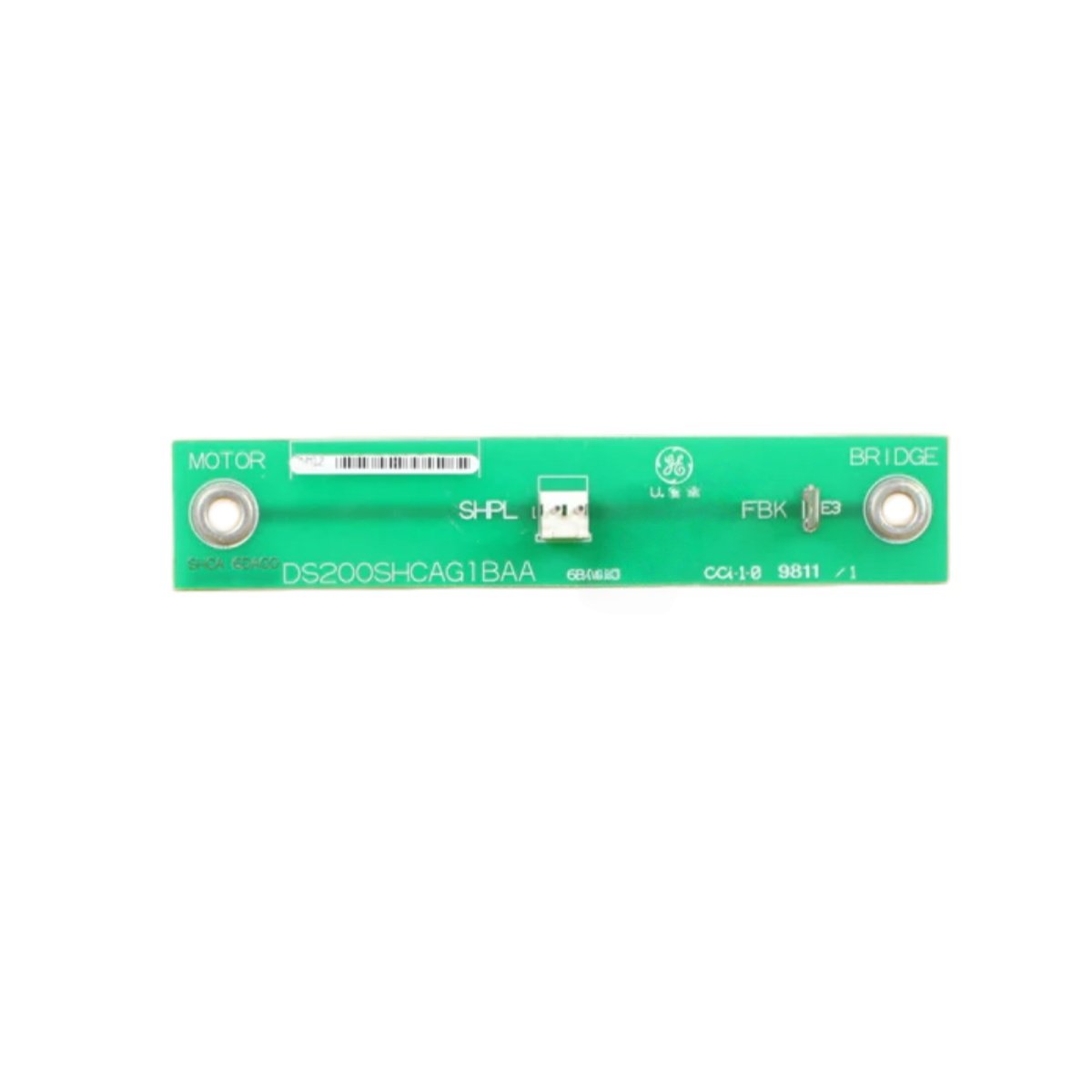

This DS200SHCAG1B DS200SHCAG1BAA shunt connector PCB measures 6.3 inches in length. Its width reaches 4.7 inches with a thickness of 1.1 inches. The total weight comes to approximately 0.78 pounds. Manufacturers placed 34 discrete components on this two-layer heavy copper PCB. These components include heavy-duty terminal blocks, Kelvin sense traces, and protective covers. Both DS200SHCAG1B and DS200SHCAG1BAA share the same shunt connector design.
Shunt Connections and Current Handling
DS200SHCAG1B DS200SHCAG1BAA provides four independent shunt connection positions. Each connection handles up to 200 amps of continuous DC current. The voltage rating reaches 1000V DC maximum for high-power systems. Heavy-duty screw terminals secure large-gauge power cables reliably. The terminals accept wire gauges from 4 AWG down to 14 AWG. Tin-over-copper plating ensures low contact resistance over time. Contact resistance stays below 0.5 milliohms per connection. Consequently, this board minimizes power loss at high currents.
Kelvin Sensing and Precision Measurement
DS200SHCAG1B DS200SHCAG1BAA includes 4-wire Kelvin sensing for accurate current measurement. Two large terminals carry the main shunt current. Two smaller sense terminals connect to the monitoring circuit. This configuration eliminates voltage drop errors from connection resistance. Standard 1-inch bus bar spacing matches common shunt dimensions. The board operates completely passively without any power supply. Therefore, it introduces no additional noise or heat into the system.
Application Use and System Integration
DS200SHCAG1B DS200SHCAG1BAA mounts between external shunts and control boards. You will find this PCB in GE drive and power control systems. It interfaces precision shunts to current monitoring circuits. The board operates reliably from -20°C to 85°C ambient temperature. For example, it connects DC bus shunts in regenerative drives. The heavy copper traces handle high currents without overheating. Therefore, this shunt connector PCB provides accurate current sensing for demanding industrial power applications.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
