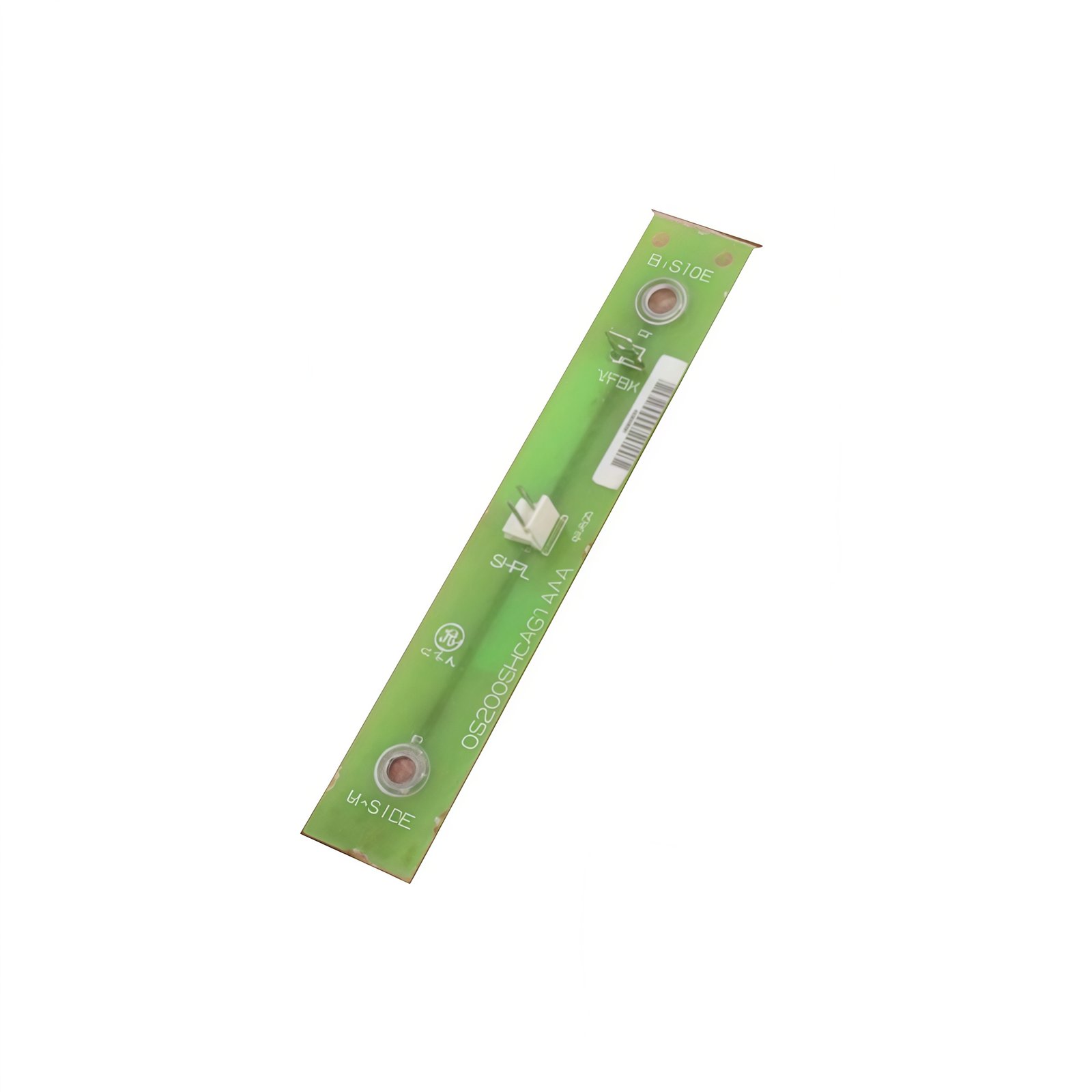

This board connects shunt resistors to Speedtronic Mark V control systems. The GE DS200SHCAG1A DS200SHCAG1AAA provides a reliable interface for high-current monitoring applications. It measures 200 mm in width and 150 mm in height. This unit weighs approximately 0.44 kg for panel mounting.
Technical Specifications Table
| Parameter | Value |
|---|---|
| Product Model Pair | DS200SHCAG1A DS200SHCAG1AAA |
| Brand | GE Energy / General Electric |
| Category | Speedtronic Shunt Connector PCB |
| Compatible Series | Mark V Speedtronic Turbine Control |
| Number of Shunt Inputs | 2 channels |
| Input Signal Range | 0 to 60 mV DC (from shunt) |
| Output Signal Range | 0 to 10 V DC |
| Max Shunt Current | 2500 A (depending on external shunt) |
| Dimensions (W x H x D) | 200 mm x 150 mm x 25 mm |
| Weight | 0.44 kg |
| Connector Types | 2 x 4-pin shunt terminals, 1 x 20-pin ribbon header |
| Internal Components | 2 x precision amplifiers, 2 x low-pass filters |
| Energy Storage | 2 x 100 µF filtering capacitors |
| Accuracy | ±0.15% of full scale |
| Bandwidth | 3 kHz typical |
| Operating Voltage | 24 V DC external supply |
| Power Consumption | 120 mA maximum |
| LED Indicators | 1 x Power, 2 x Channel Active |
| PCB Material | FR-4 with gold-plated pads |
| Operating Temperature | -30°C to 65°C |
Internal Design and Signal Processing
This PCB uses two precision amplifiers for shunt signal conditioning. Low-pass filters remove high-frequency noise from incoming current signals. The GE DS200SHCAG1A DS200SHCAG1AAA accepts 0 to 60 mV signals from external shunts. The board converts these low-level signals to a 0 to 10 V output. Two 100 µF capacitors filter power supply ripple for clean operation. Consequently, this device provides accurate current monitoring for Speedtronic turbine systems.
Installation and Wiring Guide
First, mount this PCB onto standoffs inside your control cabinet. Next, connect a 24 V DC power supply to the designated terminals. Then, wire your external shunt leads to the 4-pin input terminals. Use shielded twisted-pair cables for shunt connections to reduce noise. Connect the output ribbon cable to your analog input module for current monitoring. The board provides signal conditioning for shunts up to 2500 A maximum. Two LED indicators show power status and active channel presence. This shunt connector PCB works with Mark V Speedtronic systems and standard external shunt resistors. Always verify the shunt voltage rating matches your application requirements before connecting.
Details
| Weight | 0.45 kg |
|---|---|
| Dimensions | 254 × 178 × 5 mm |
