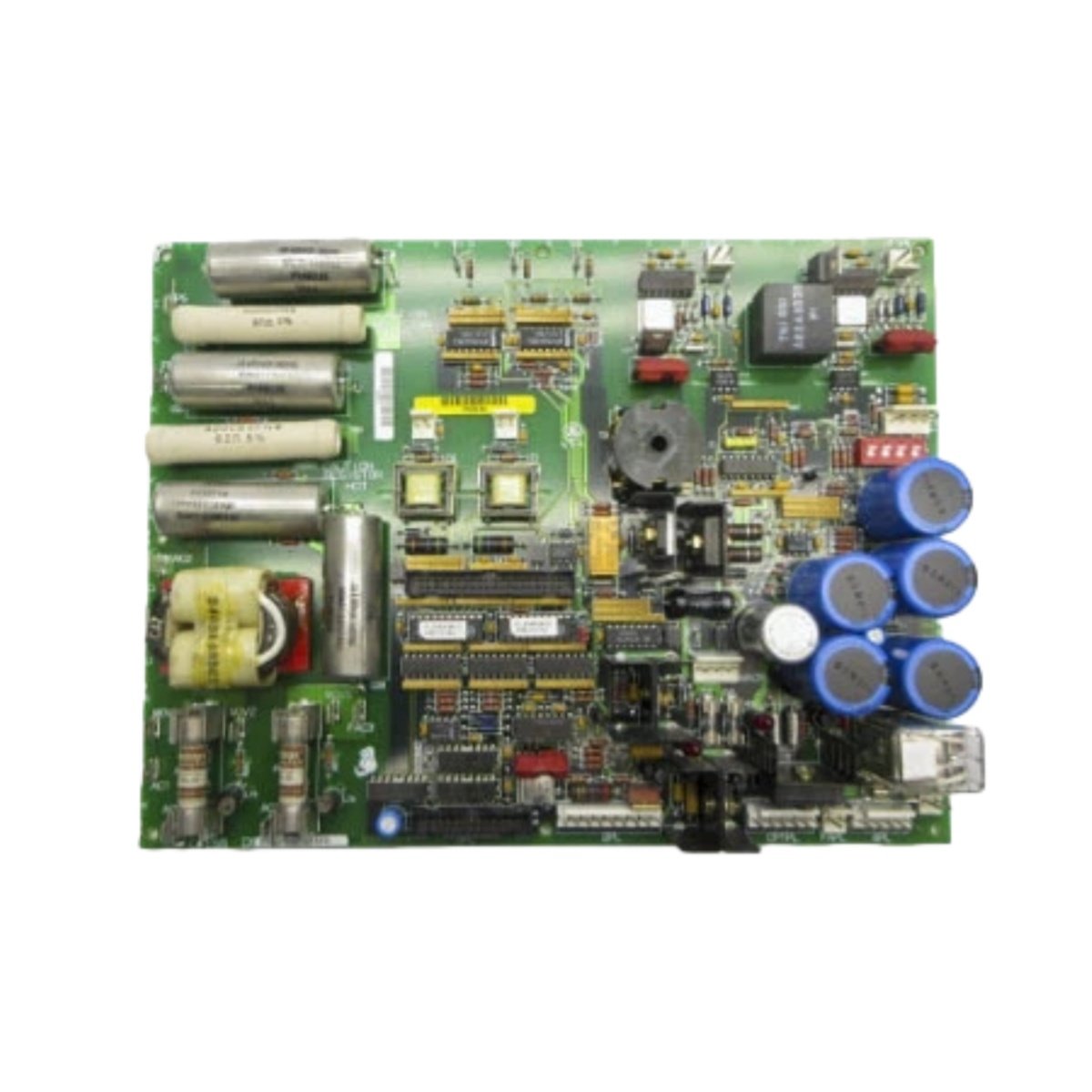

This DC power supply board provides regulated voltage for GE Mark V turbine control systems. It converts AC input to multiple DC outputs for internal circuits. Therefore, this component ensures stable operation of speedtronic control modules.

Physical Dimensions and Weight Specifications

The GE DS200SDCIG2AFB features a standard PCB form factor for rack mounting. Its board dimensions measure 267 mm in height for vertical insertion. The total depth reaches 305 mm including the heat sink. Consequently, technicians can install this board in Mark V drive cabinets.

Interface Types and Connection Layout

The GE DS200SDCIG2AFB provides screw terminals for AC input wiring. A 50-pin backplane connector distributes DC outputs to other boards. The front panel carries LED indicators for each output voltage rail. Hence, operators can verify power status at a quick glance.

Component Count and Power Architecture

This power supply board contains one main PCB with multiple converter stages. The board holds six large electrolytic capacitors for bulk energy storage. You will also find flyback transformers and switching MOSFETs. An onboard fan connector supplies power for cabinet cooling.

Energy Storage and Hold-Up Time

The GE DS200SDCIG2AFB stores energy in six 1500µF bulk capacitors. This storage provides a 40 ms hold-up time after AC loss. Therefore, the turbine control system continues operating during brief power interruptions. The board requires no external battery for this function.

Protection Features and Operating Range

The power supply includes overcurrent and overvoltage protection on all outputs. It also features thermal shutdown with automatic recovery. Users can operate this board in temperatures from 0°C to 50°C. A built-in temperature sensor adjusts fan speed for optimal cooling.
