Why This Power Supply Board Energizes Your Drive Controls

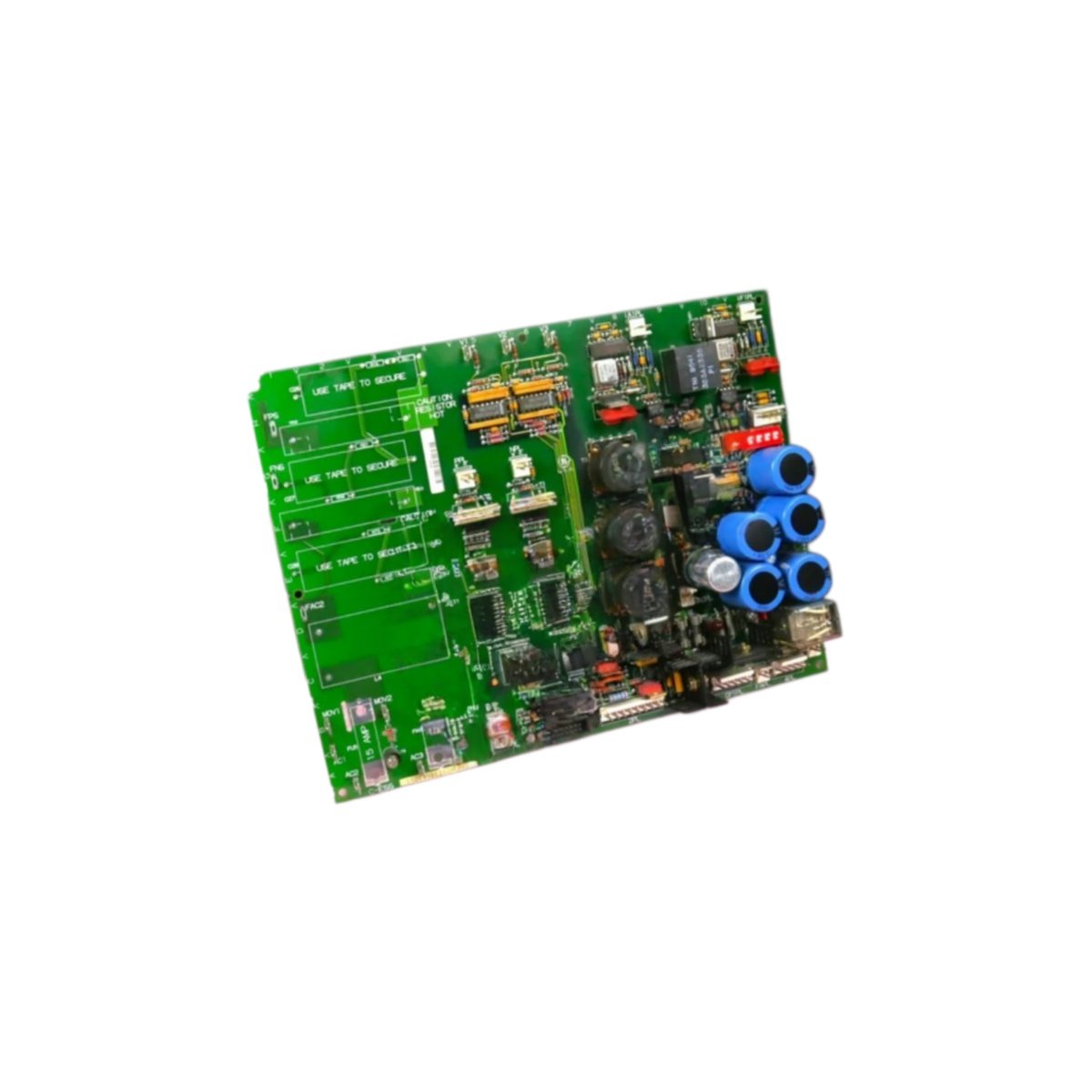

This control power supply board provides regulated DC voltages for all logic circuits. You get a stable GE DS200SDCIG2A DS200SDCIG2AEB for industrial drive systems. It converts incoming AC into multiple isolated DC outputs. Therefore, your control electronics operate reliably without external power bricks.
Technical Specifications and Physical Details
The GE DS200SDCIG2A DS200SDCIG2AEB generates five separate DC voltage rails. It delivers +5V, +12V, -12V, +15V, and +24V outputs for various boards. This board mounts onto the drive chassis with four screws. Its dimensions measure approximately 280 mm in width and 200 mm in height. The unit weighs around 0.75 kg for secure installation. This power supply stores energy in its output capacitors. Consequently, control circuits remain powered for several seconds after input loss.
Below is the detailed breakdown of the hardware specifications.
| Parameter | Specification |
|---|---|
| Product Model | DS200SDCIG2A DS200SDCIG2AEB |
| Product Type | Control Power Supply Board |
| Brand | GE (General Electric) |
| Number of Outputs | 5 isolated DC rails |
| Output Voltages | +5V, +12V, -12V, +15V, +24V |
| Input Voltage | 120/230V AC (field selectable) |
| Mounting Type | Chassis mount |
| Dimensions (W x H) | Approx. 280 x 200 mm |
| Approx. Weight | 0.75 kg |
| Energy Storage | Capacitor bank (output side) |
| Component Count | Single populated PCB |
Installation and Wiring Notes
This board mounts securely to the drive cabinet back panel. You must select the correct input voltage jumper before applying power. The GE DS200SDCIG2A DS200SDCIG2AEB requires proper grounding for noise reduction. Therefore, connect the chassis ground terminal to the cabinet earth point. Always discharge the output capacitors before handling this board. Stored energy can cause a painful shock even after disconnecting AC power.
