Product Overview

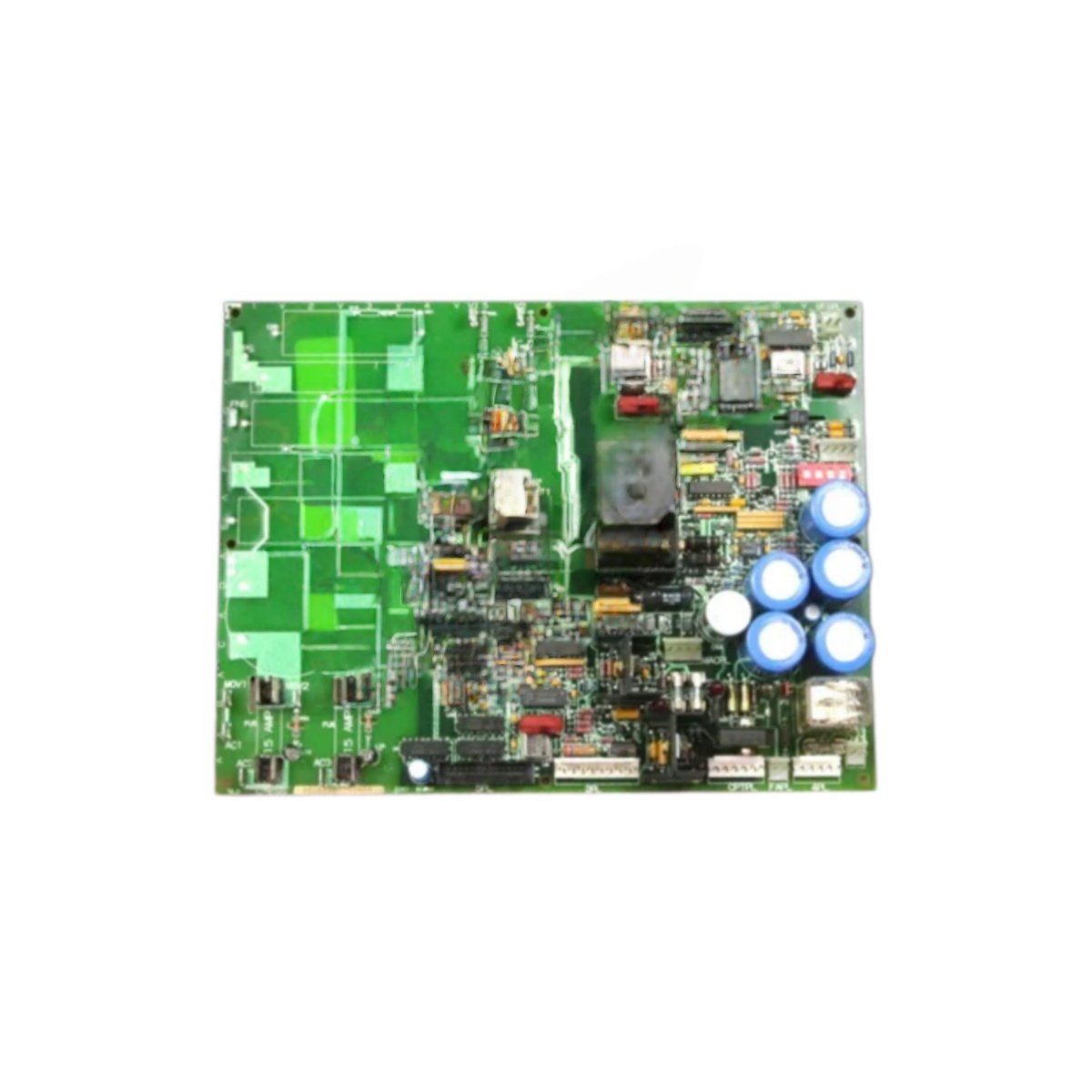

The DS200SDCIG2A DS200SDCIG2ADA supplies regulated DC power for Mark V control systems. You will find this board in gas turbine and steam turbine applications. It converts AC line voltage into stable 28V DC output. Moreover, this board includes built-in overvoltage protection for safety. Consequently, it prevents damage to sensitive downstream circuits.
Technical Specifications
The table below lists all key parameters for this power supply control board.
| Parameter | Value / Description |
|---|---|
| Full Model | DS200SDCIG2A DS200SDCIG2ADA |
| Category | Power Supply Control Board |
| Dimensions (W x H) | 18.5 cm x 12.7 cm (7.28 in x 5.0 in) |
| Weight | 1.2 kg (2.65 lb) |
| Primary Interface | Two 3-pin AC input terminals |
| Secondary Interface | One 6-pin DC output header |
| Control Interface | One 4-pin status feedback port |
| Onboard Components | 6 capacitors, 14 resistors, 4 diodes, 2 transformers |
| Energy Storage | 470 µF total (small output capacitors only) |
| Input Voltage | 110V AC or 220V AC ±15% (jumper selectable) |
| Output Voltage | 28V DC ±2% |
| Max Output Current | 2.5 A continuous |
| Ripple & Noise | < 50 mV peak-to-peak |
| Status Indicators | One green LED for power good |
| Mounting | Four 4 mm corner screw holes |
The DS200SDCIG2A DS200SDCIG2ADA stores minimal energy (only 470 µF total). Therefore, you only need a 10-second discharge wait before handling. Use the two AC terminals for line and neutral connections. Meanwhile, the 6-pin header supplies 28V to instrumentation and logic boards.
Installation and Compatibility
You can mount this board directly into any Mark V panel slot. Use four M4 screws to secure the DS200SDCIG2A DS200SDCIG2ADA. Then connect the AC supply wires to terminals L and N. Always select the correct input voltage jumper before you power up.
The DS200SDCIG2ADA variant includes enhanced transient suppression. This version also has a wider operating temperature range. Both models replace older GE SDCIG series power boards without cabinet modifications.
Environmental and Safety Data
The DS200SDCIG2A DS200SDCIG2ADA operates from -30°C to +60°C. It does not require forced cooling at room temperature. This board also meets IEC 61000-6-2 for industrial immunity. The component side has a light conformal coating. Consequently, you should avoid heavy solvent cleaning. Use only isopropyl alcohol for spot cleaning if needed.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
