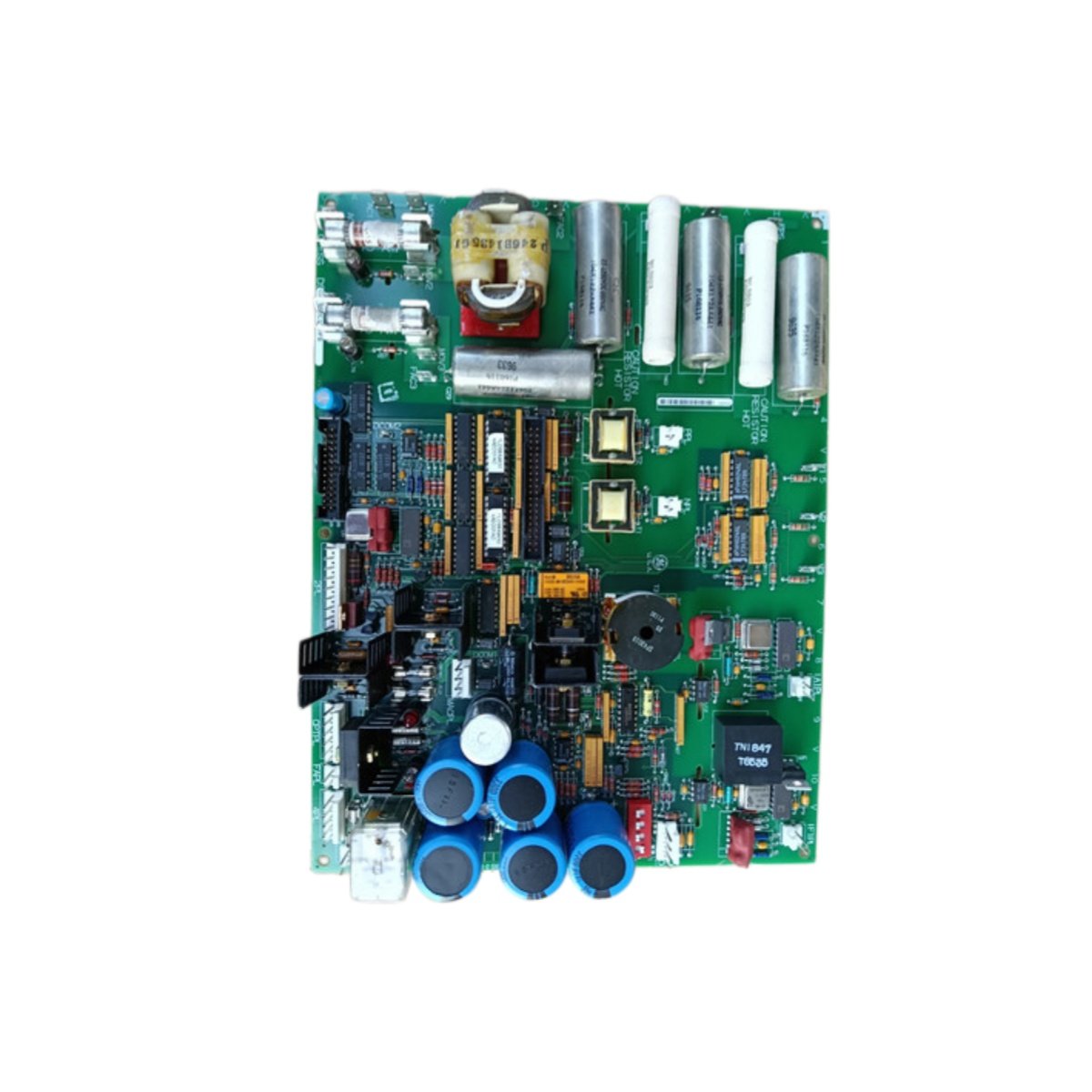

Core Function of This Instrumentation Board
The GE DS200SDCIG1AFB monitors and reports critical power supply parameters. This instrumentation board measures voltage, current, and temperature at multiple test points. It provides analog feedback signals to the main drive controller. Consequently, the module enables precise regulation of DC bus voltage levels.
Physical Dimensions and Board Construction
This instrumentation board measures 310 mm in total length. Its width reaches 210 mm for a standard drive form factor. The board thickness stands at 18 mm including all component heights. You will find 285 discrete components on this four-layer PCB. These include precision resistors, instrumentation amplifiers, and isolation circuits. The GE DS200SDCIG1AFB weighs approximately 490 grams for stable mounting.
Measurement Channels and Input Ranges
The GE DS200SDCIG1AFB accepts six differential voltage input channels. Each channel handles signals from 0 to 10 V DC or 0 to 20 mA. The board also provides four current shunt inputs for load monitoring. Two dedicated thermistor inputs measure heatsink and ambient temperatures. All channels include overvoltage protection up to 60 V DC.
Signal Conditioning and Accuracy Performance
This instrumentation board achieves 14-bit resolution on all measurement channels. Each channel provides a programmable gain amplifier for signal scaling. The board includes low-pass filtering to remove switching noise from measurements. Common mode rejection reaches 90 dB at 60 Hz for differential inputs. Total measurement accuracy stays within ±0.2% of full scale across temperature.
Interface Connectors and Output Signals
Two 30-pin ribbon cable headers connect this board to the controller. Additionally, one 16-pin terminal block accepts external sensor wiring. The board provides eight buffered analog outputs for remote monitoring. Each output delivers 0 to 10 V DC with 10 mA drive capability. Gold-plated contacts ensure reliable signal integrity in industrial environments.
Energy Storage and Power Requirements
The GE DS200SDCIG1AFB draws 160 mA from a 5 V DC logic supply. It also requires 80 mA from a separate ±15 V DC analog rail. The board incorporates four 100 µF tantalum capacitors for power rail decoupling. However, these capacitors do not retain calibration data after power loss. Total stored energy reaches approximately 0.03 joules at nominal voltage.
| Parameter | Specification |
|---|---|
| Model | DS200SDCIG1AFB |
| Brand | GE (General Electric) |
| Category | Power Supply Instrumentation Board |
| Length x Width | 310 x 210 mm |
| Thickness | 18 mm |
| Weight | 490 grams |
| Component Count | 285 |
| Differential voltage inputs | 6 channels (0-10V or 0-20mA) |
| Current shunt inputs | 4 channels |
| Thermistor inputs | 2 channels |
| Resolution | 14-bit |
| CMRR | 90 dB at 60 Hz |
| Accuracy | ±0.2% of full scale |
| Buffered analog outputs | 8 channels (0-10V, 10mA) |
| Decoupling capacitors | 4 x 100 µF tantalum |
| Total stored energy | 0.03 Joules |
| Logic supply | 160 mA at 5 V DC |
| Analog supply | 80 mA at ±15 V DC |
| Main connectors | 2 x 30-pin ribbon cable |
| Sensor connector | 1 x 16-pin terminal block |
| Operating temperature | -10°C to +55°C |
Installation and Calibration Notes
You must install this board adjacent to the main power supply card. Always perform a zero calibration after replacing the board. Then, verify each input channel with a known voltage source. The module provides optical isolation between measurement circuits and the controller. Regular recalibration every 18 months maintains specified accuracy.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
