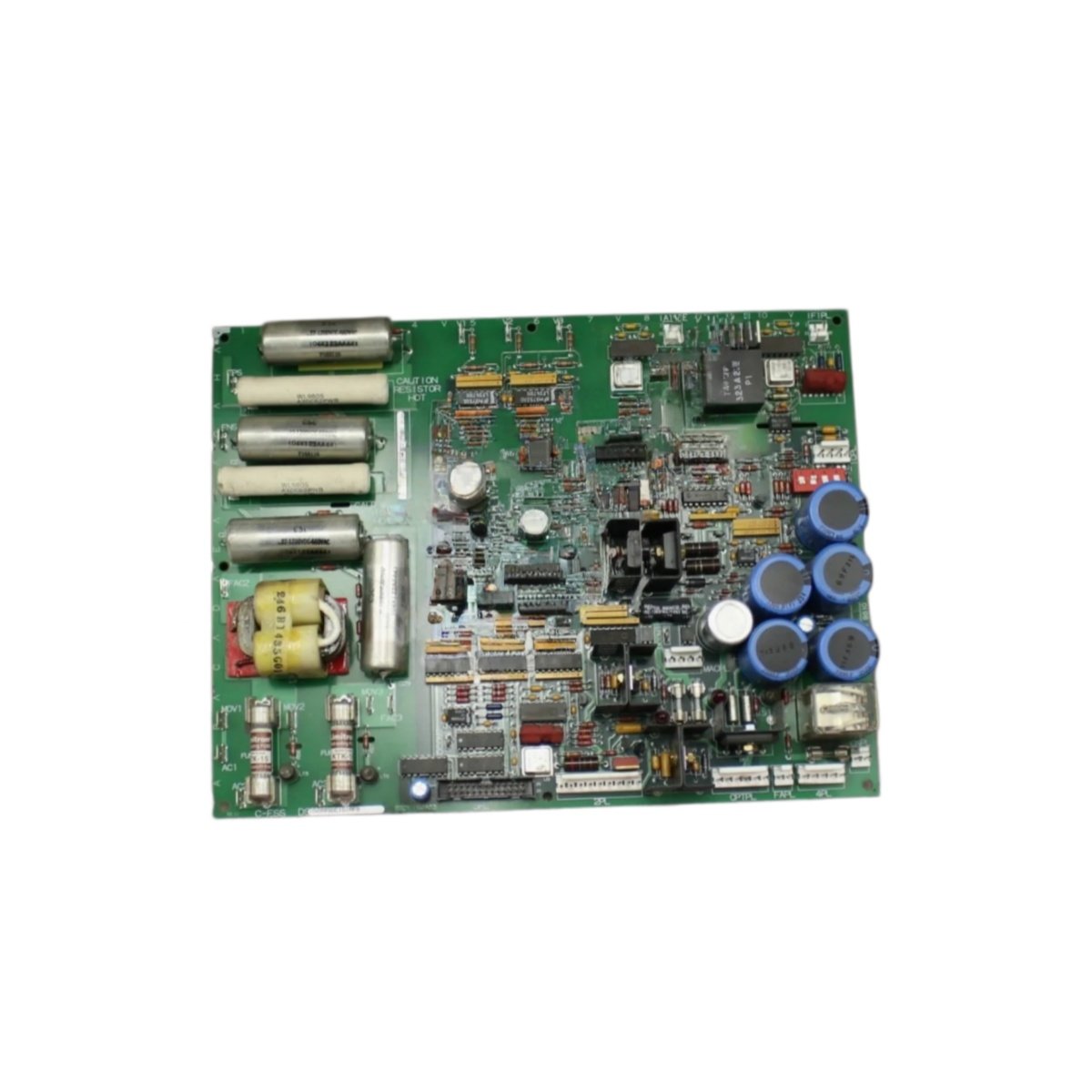

The complete model DS200SDCIG1A DS200SDCIG1AFB provides regulated DC power for Mark V turbine systems. This board supplies instrumentation circuits with stable voltage. It supports LM6000 and similar gas turbine applications reliably.

Technical Specifications

Power Regulation Features

DS200SDCIG1A DS200SDCIG1AFB generates four distinct DC output voltages. Twelve capacitors store energy and smooth voltage ripples effectively. Two transformers provide galvanic isolation from the primary supply. The board resides in R1 Core location 2. This placement ensures clean power distribution to adjacent cards.

 delivers +5V for digital logic circuits. It also supplies +15V and -15V for analog instrumentation. A separate +24V output drives field relays and solenoids. Three connectors distribute these voltages to other boards. Each output includes overcurrent protection automatically.

Operational Integration

This power board works with the main turbine controller seamlessly. It prioritizes the +5V rail for processor stability. DS200SDCIG1A DS200SDCIG1AFB monitors output voltages continuously. Only three rails see active use in typical configurations. The board handles input surges without damaging downstream components.

Physical and Installation Notes

Manufacturers reference manual GEH-6155 for all installation steps. Each DS200SDCIG1A DS200SDCIG1AFB unit undergoes full functional testing. We clean every board before final shipment. The secondary code DS200SDCIG1AFB appears on the factory label. This board weighs approximately 1.8 pounds for secure mounting.
