Technical Specifications
| Parameter | Value |
|---|---|
| Brand | GE |
| Model | DS200SDCIG1A DS200SDCIG1AEB |
| Category | DC Power Supply and Instrumentation Board |
| Weight | 2.15 lbs (0.98 kg) |
| Dimensions | 10.5 x 7.2 x 1.8 inches |
| PCB Layers | 6-layer board |
| Component Count | 268 discrete components |
| Input Voltage | 125V DC nominal |
| Input Range | 100-150V DC |
| Output Voltages | +5V, +15V, -15V, +24V |
| +5V Output Current | 10A maximum |
| +24V Output Current | 3A maximum |
| Total Output Power | 110W |
| Instrumentation Channels | 8 analog inputs |
| Analog Input Range | 0-10V or 4-20 mA |
| Resolution | 12 bits |
| Isolation | 1500V AC input to output |
| Energy Storage | 4 x 1500µF, 6 x 470µF |
| Operating Temperature | 0°C to 55°C |
Physical Construction and Component Layout

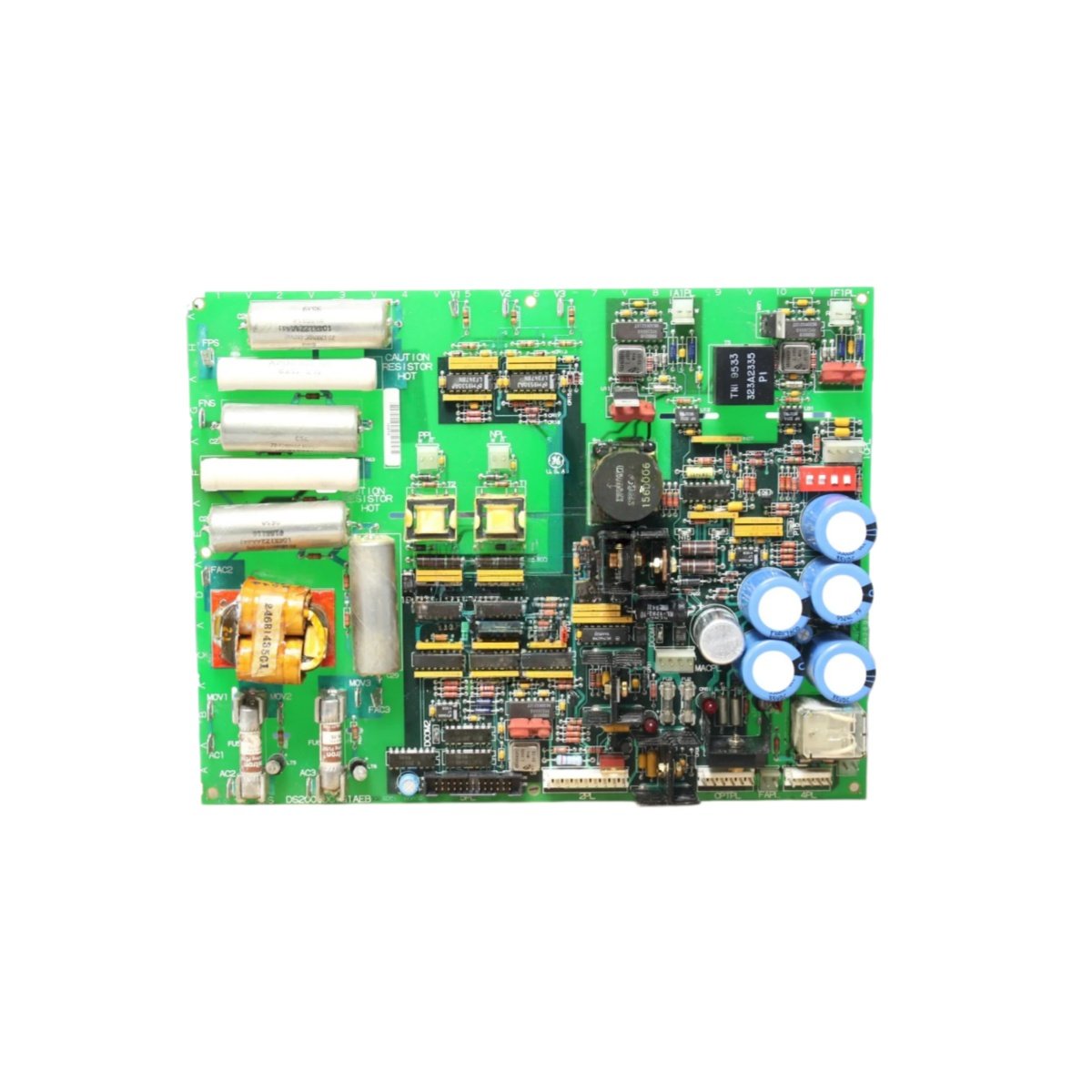

This DS200SDCIG1A DS200SDCIG1AEB DC power supply board measures 10.5 inches in length. Its width reaches 7.2 inches with a thickness of 1.8 inches. The total weight comes to approximately 2.15 pounds. Manufacturers placed 268 discrete components on this six-layer PCB. These components include DC-DC converters, instrumentation amplifiers, filter chokes, and protection circuits. Both DS200SDCIG1A and DS200SDCIG1AEB appear on the product label.
Power Supply Outputs and Distribution
DS200SDCIG1A DS200SDCIG1AEB generates four regulated DC outputs from a 125V input. The +5V rail delivers up to 10 amps for logic circuits. A +15V rail supplies current for analog and control sections. The -15V rail provides negative voltage for operational amplifiers. A +24V rail delivers 3 amps for I/O and relay power. Total combined output power reaches 110 watts continuously. All outputs include overcurrent and overvoltage protection. Consequently, this board powers multiple downstream modules reliably.
Instrumentation Features and Analog Inputs
DS200SDCIG1A DS200SDCIG1AEB integrates eight analog instrumentation channels. Each channel accepts either 0-10V voltage or 4-20 mA current inputs. Precision amplifiers condition these signals for the control system. Each channel includes filtering for effective noise rejection. The board converts analog signals with 12-bit resolution. Isolation separates the input channels from the DC power section. This isolation withstands 1500V AC for safe field wiring.
Energy Storage and Application Use
DS200SDCIG1A DS200SDCIG1AEB integrates four 1500µF capacitors for bulk storage. Six additional 470µF capacitors filter each output rail separately. You will find this board in GE Mark V and Mark VI turbine control systems. It provides both power and signal conditioning in one unit. The board operates reliably from 0°C to 55°C ambient. For example, it powers servo drives and monitors temperature transmitters. Therefore, this DC power supply and instrumentation board serves critical functions in GE turbine controls.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 273.6 × 214.1 × 59.2 mm |
