Precision Motor Control for LCI Drive Systems

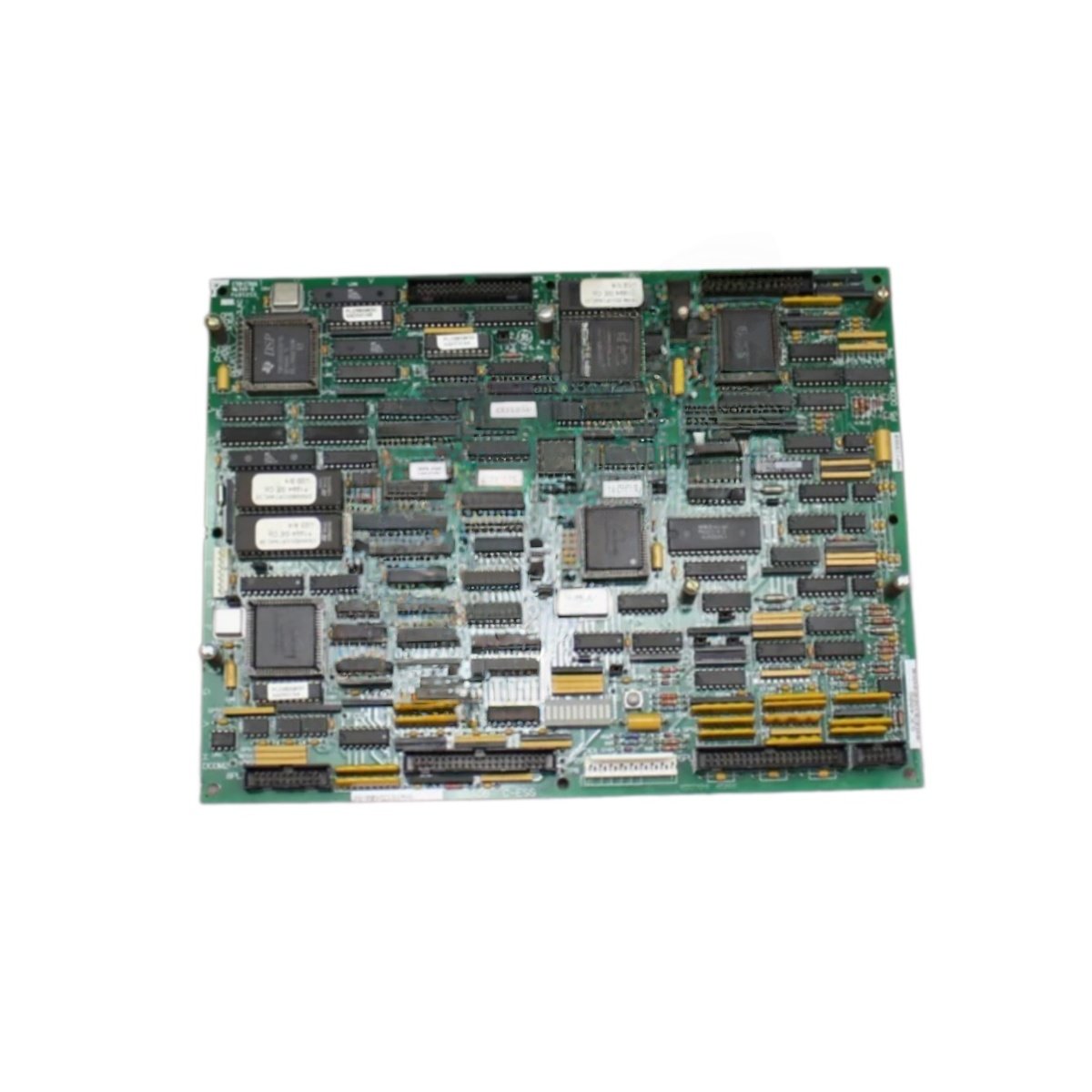

This drive control board manages motor speed and torque for LCI drive applications. The GE DS200SDCCG1A executes control algorithms for load-commutated inverter systems. The DS200SDCCG1AHD variant offers identical functionality for direct drop-in replacement. Multiple feedback inputs accept encoder and resolver signals for precise control. Consequently, this board delivers accurate motor regulation for high-power industrial drives.
Control Specifications & Feedback Interfaces
The GE DS200SDCCG1A DS200SDCCG1AHD processes speed and torque commands from the main controller. Built‑in PID loops regulate motor operation without burdening the system CPU. Dedicated inputs accept both digital and analog feedback from motor sensors. Four status LEDs indicate control mode, fault conditions, and communication status. Therefore, this drive control board provides reliable motor management for demanding industrial applications.
| Parameter | Detailed Specification |
|---|---|
| Series | Mark V |
| Control Loops | 4 (speed, torque, flux, current) |
| Feedback Inputs | 2 (encoder, resolver compatible) |
| Analog Inputs | 4 channels (4-20 mA, 0-10V) |
| Analog Outputs | 2 channels (4-20 mA) |
| Digital I/O | 8 inputs / 4 outputs (24V DC) |
| Control Cycle Time | 250 µs typical |
| Input Voltage | 5V DC and 24V DC from backplane |
| Power Consumption | 6W typical |
| Dimensions | 10.0 in x 7.0 in x 1.5 in (25.4 cm x 17.8 cm x 3.8 cm) |
| Weight | 1.1 lbs (0.50 kg) |
| Component Count | Over 180 surface-mount devices |
| Main Connector | One 64-pin male DIN connector |
| Test Points | 8 (critical signal monitoring) |
| Energy Storage | 330 µF (filtering capacitance) |
| Status LEDs | 4 (POWER, RUN, FAULT, COM) |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +70°C |
| Humidity Range | 20% to 95% RH (non-condensing) |
Installation & System Integration
You insert the GE DS200SDCCG1A DS200SDCCG1AHD into a standard Mark V rack slot. The 64-pin DIN connector mates directly with the backplane for signal routing. Connect your motor feedback sensors to the dedicated input terminals. The board automatically synchronizes with the main drive controller after power-up. Consequently, the drive control board regulates motor operation within microseconds of command changes.
Operational Advantages & Precision Control
The GE DS200SDCCG1A DS200SDCCG1AHD uses a 250 µs control cycle for smooth motor operation. A green RUN LED confirms normal control algorithm execution. A red FAULT LED illuminates when the board detects a motor or feedback error. Built‑in PID loops maintain stable speed under varying load conditions. Therefore, this drive control board provides precise motor regulation for Mark V LCI systems.
Details
| Weight | 0.45 kg |
|---|---|
| Dimensions | 170 × 145 × 65 mm |
