Technical Specifications
| Parameter | Value |
|---|---|
| Brand | GE |
| Model | DS200SDCCG1A DS200SDCCG1AEC |
| Category | Drive Control Board |
| Weight | 1.72 lbs (0.78 kg) |
| Dimensions | 9.3 x 6.7 x 1.7 inches |
| PCB Layers | 8-layer board |
| Component Count | 346 discrete components |
| Processor Type | 32-bit DSP |
| Clock Speed | 100 MHz |
| Program Memory | 2 MB flash |
| Data Memory | 1 MB SRAM |
| PWM Outputs | 6 channels (20 kHz) |
| Analog Inputs | 8 channels (16-bit) |
| Analog Outputs | 4 channels (12-bit) |
| Digital Inputs | 16 channels (24V DC) |
| Digital Outputs | 16 channels (24V DC, 0.5A) |
| Communication Ports | CANbus, RS-232, Ethernet |
| Energy Storage | 8 x 470µF, 6 x 100µF |
| Operating Temperature | 0°C to 55°C |
Physical Construction and Component Layout

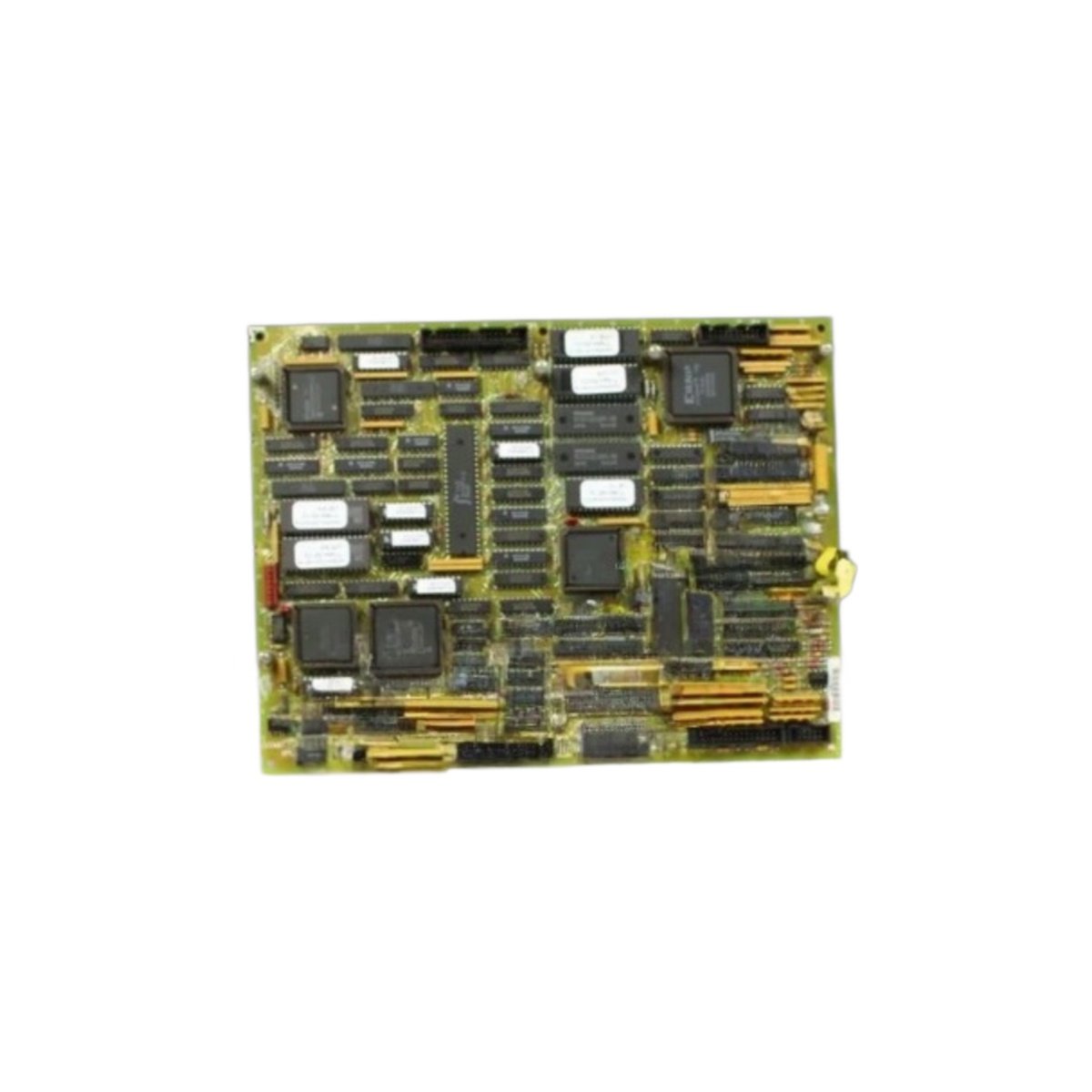

This DS200SDCCG1A DS200SDCCG1AEC drive control board measures 9.3 inches in length. Its width reaches 6.7 inches with a thickness of 1.7 inches. The total weight comes to approximately 1.72 pounds. Manufacturers placed 346 discrete components on this eight-layer PCB. These components include a 32-bit DSP, memory banks, PWM generators, and analog interfaces. Both DS200SDCCG1A and DS200SDCCG1AEC share the same drive control architecture.
Processing Power and Memory Resources
DS200SDCCG1A DS200SDCCG1AEC features a 32-bit DSP running at 100 MHz. Program memory includes 2 MB of flash for control algorithms. Data memory provides 1 MB of SRAM for real-time variables. This processing power executes complex vector control calculations rapidly. The board handles speed, torque, and position control loops seamlessly. Six PWM outputs generate switching signals at 20 kHz frequency.
I/O Capabilities and Communication Ports
DS200SDCCG1A DS200SDCCG1AEC offers extensive I/O for drive control applications. Eight analog inputs provide 16-bit resolution for feedback signals. Four analog outputs deliver 12-bit control signals to actuators. Sixteen digital inputs accept 24V DC from sensors and limit switches. Sixteen digital outputs drive 24V DC at 0.5 amp each. Three communication ports include CANbus, RS-232, and Ethernet. Therefore, this board connects to HMIs, drives, and plant networks easily.
Energy Storage and Application Use
DS200SDCCG1A DS200SDCCG1AEC integrates eight 470µF capacitors for bulk storage. Six additional 100µF capacitors filter high-frequency power noise. You will find this board in GE DC and AC drive systems. It serves as the main control board for motor speed regulation. The board operates reliably from 0°C to 55°C ambient. For example, it controls conveyor drives, winders, or extruders. Therefore, this drive control board delivers high-performance motor control for industrial automation.
