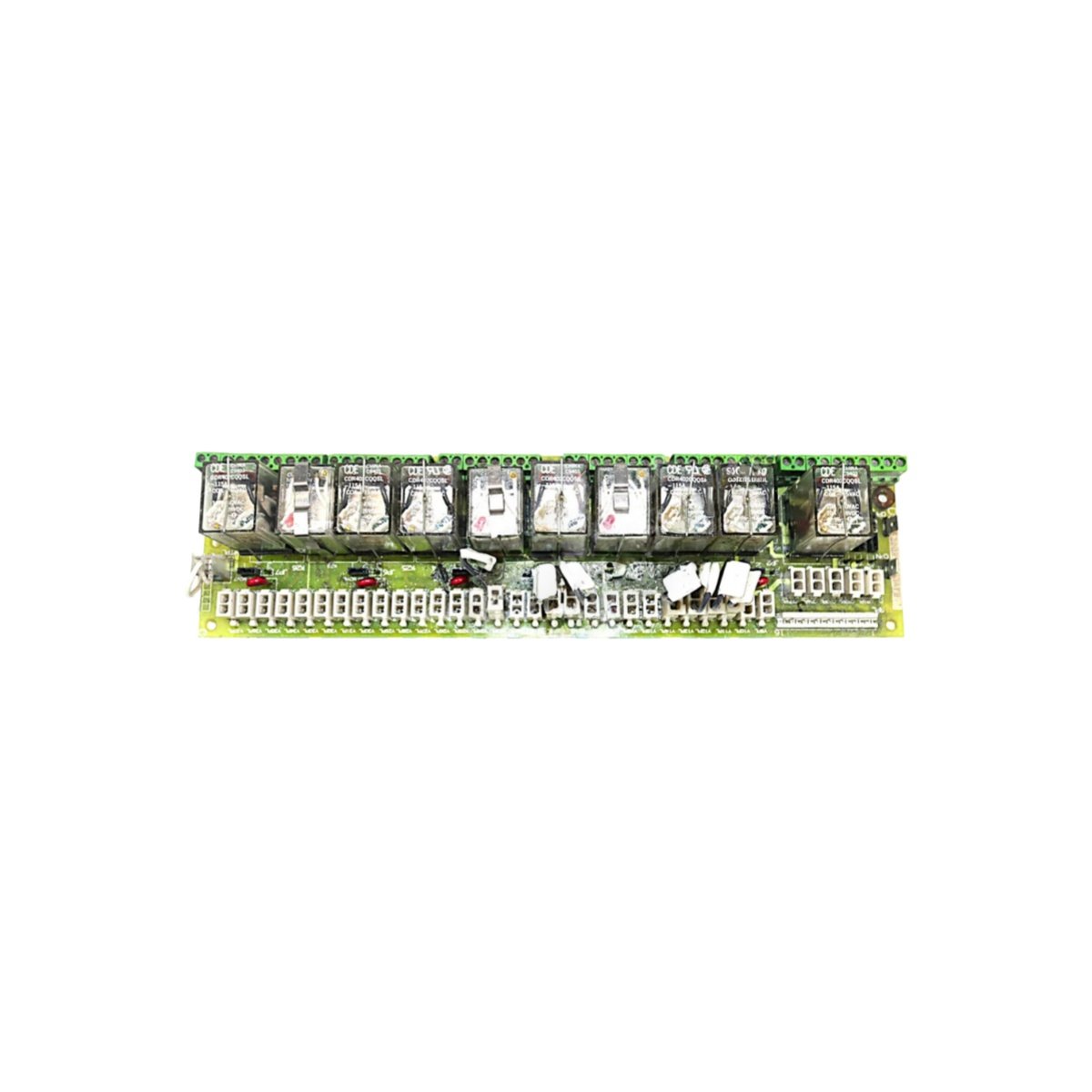

The complete model DS200RTBAG3A DS200RTBAG3AHC terminates relay control signals for Mark V turbine systems. This board connects field contactors and solenoids to the main controller. It supports LM6000 and similar gas turbine applications with high dependability.

Technical Specifications

Relay and Termination Features

DS200RTBAG3A DS200RTBAG3AHC provides thirty screw terminals for relay wiring. Three removable terminal blocks simplify field maintenance tasks greatly. Ten suppression diodes protect the board from inductive load kickback. The board resides in R1 Core location 7. This placement ensures optimal signal routing to output cards.

DS200RTBAG3A DS200RTBAG3AHC controls ten independent relay output channels. Each channel handles up to 5 amps of continuous current. Ten status LEDs show real-time relay states at a glance. The board accepts wire sizes from 22 to 16 AWG comfortably. Each terminal carries clear labeling for error-free installation.

Operational Integration

This relay board works with the main turbine controller seamlessly. It prioritizes emergency trip outputs above routine control signals. DS200RTBAG3A DS200RTBAG3AHC switches loads up to 250V AC safely. All ten channels see potential use in complex turbine configurations. The board reduces panel space through compact relay organization.

Physical and Installation Notes

Manufacturers reference manual GEH-6184 for all installation steps. Each DS200RTBAG3A DS200RTBAG3AHC unit undergoes complete functional testing. We clean every board thoroughly before final shipment. The secondary code DS200RTBAG3AHC appears on the factory identification label. This board weighs approximately 1.5 pounds for secure rack mounting.
