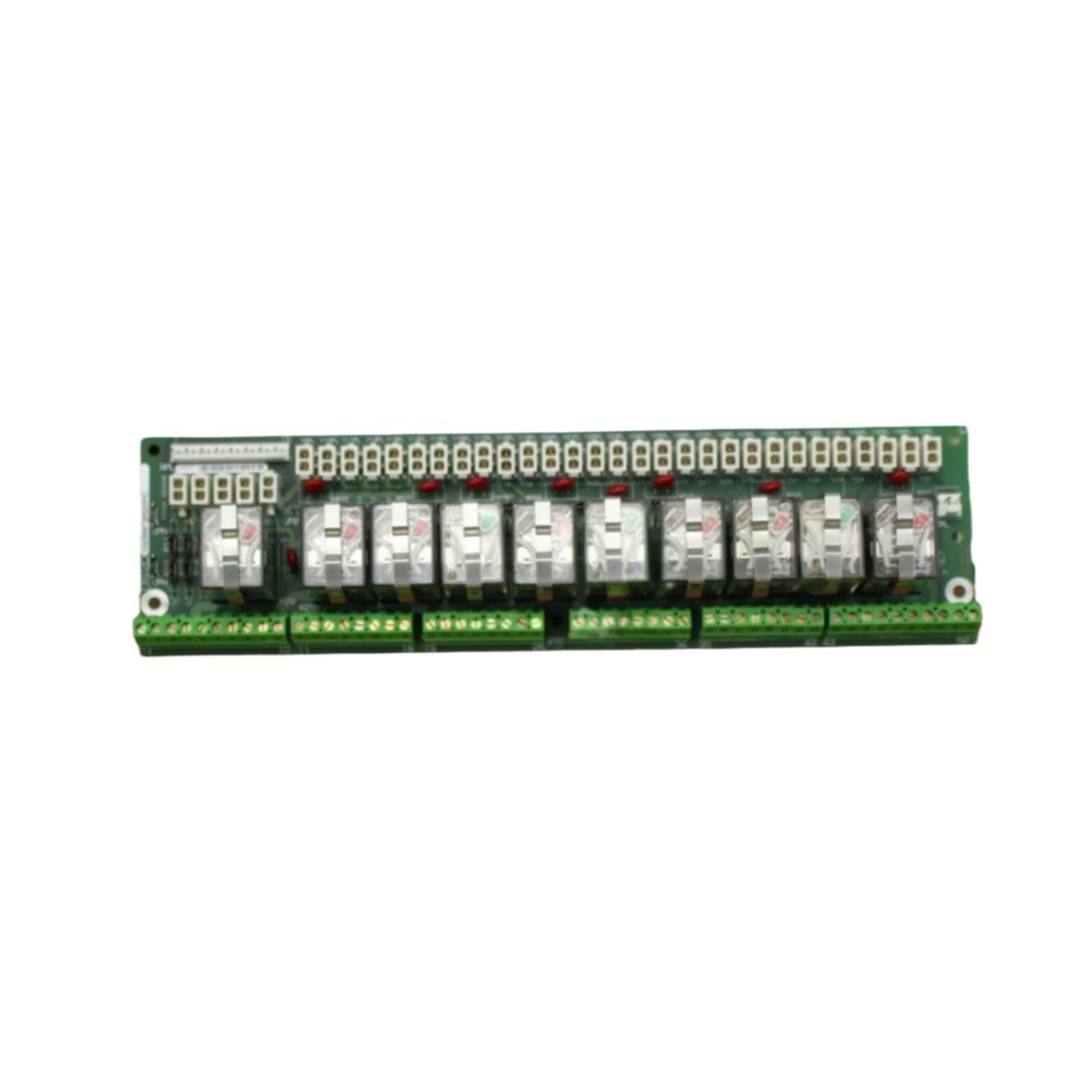

This relay card module provides isolation and switching for GE drive control signals. It interfaces between low-voltage logic circuits and high-power field devices. The unit mounts inside the drive cabinet as a signal conditioning card.
Technical specifications
| Parameter | Specification |
|---|---|
| Brand | GE Energy |
| Model 1 | DS200RTBAG2A |
| Model 2 | DS200RTBAG2AHC |
| Product Family | Mark V / Drive Control |
| Category | Relay Card Module |
| PCB Layer Count | 4 layers |
| Base Material | FR-4 flame retardant |
| Number of Relays | 10 (ten) electromechanical relays |
| Relay Configuration | Form A (SPST-NO) |
| Contact Rating | 5A at 250V AC / 30V DC |
| Coil Voltage | 24V DC |
| Response Time | 10 ms typical (operate) |
| Mechanical Life | 10 million operations |
| Electrical Life | 100,000 operations at rated load |
| Status Indicators | 10 x LEDs (relay status), 1 x LED (PWR) |
| Component Count | Approximately 95 components |
| Integrated Circuits | 8 ICs (drivers, optocouplers) |
| Connector Types | 2 x 20-pin headers, 1 x terminal block |
| Power Supply | 24V DC external |
| Current Consumption | 100 mA (logic) + coil current |
| Test Points | 6 gold-plated test points |
| Energy Storage | None (no battery or capacitor) |
| Dimensions (L x W) | Approx. 23 cm x 15 cm |
| Thickness | Approx. 1.6 mm |
| Weight | Approx. 0.31 kg |
| Operating Temperature | 0°C to 55°C |
| Mounting | 4 x screw holes (M4) |
Detailed Technical Analysis
This relay card module provides ten Form A relay outputs for signal isolation. Each relay switches up to 5 amps for driving contactors and solenoids. The coil operates at 24V DC from the drive’s control supply. Ten LEDs show the energization status of every relay individually.
Now let us examine its relay characteristics. Each relay achieves 10 million mechanical operations without load. Electrical life reaches 100,000 operations at the full 5-amp rating. The response time stays within 10 milliseconds for most applications. Approximately 95 components populate both sides of this 4-layer PCB.
This relay card draws 100 milliamps for its internal logic circuits. The relay coils draw additional current from the same 24V supply. The GE DS200RTBAG2A DS200RTBAG2AHC contains no batteries or capacitors for energy storage. Six gold-plated test points allow signal verification during commissioning.
Installation and Connection Guidelines
You mount this card using four M4 screws with insulating standoffs. Connect the 24V DC power supply to the designated terminal block. Wire each field device to its corresponding relay output terminal. Connect control signals from the main board to the input headers.
Use proper suppression devices across inductive loads to reduce electrical noise. The board requires no configuration jumpers or software setup. Verify each relay operation before placing the drive into service. Always power down the drive before inserting or removing this card.
Practical Applications
Engineers use this relay card for GE drive signal conditioning and isolation. It interfaces logic circuits with high-power field devices. This component also works in legacy drive upgrade projects. Its ten relays suit multi-point switching applications.
Summary of Features
To conclude, this relay card provides 10 relay outputs at 5 amps each. It weighs 0.31 kilograms and draws 100 milliamps at 24V. Choose DS200RTBAG2A DS200RTBAG2AHC for reliable relay switching in drive systems.
