Core Technical Specifications

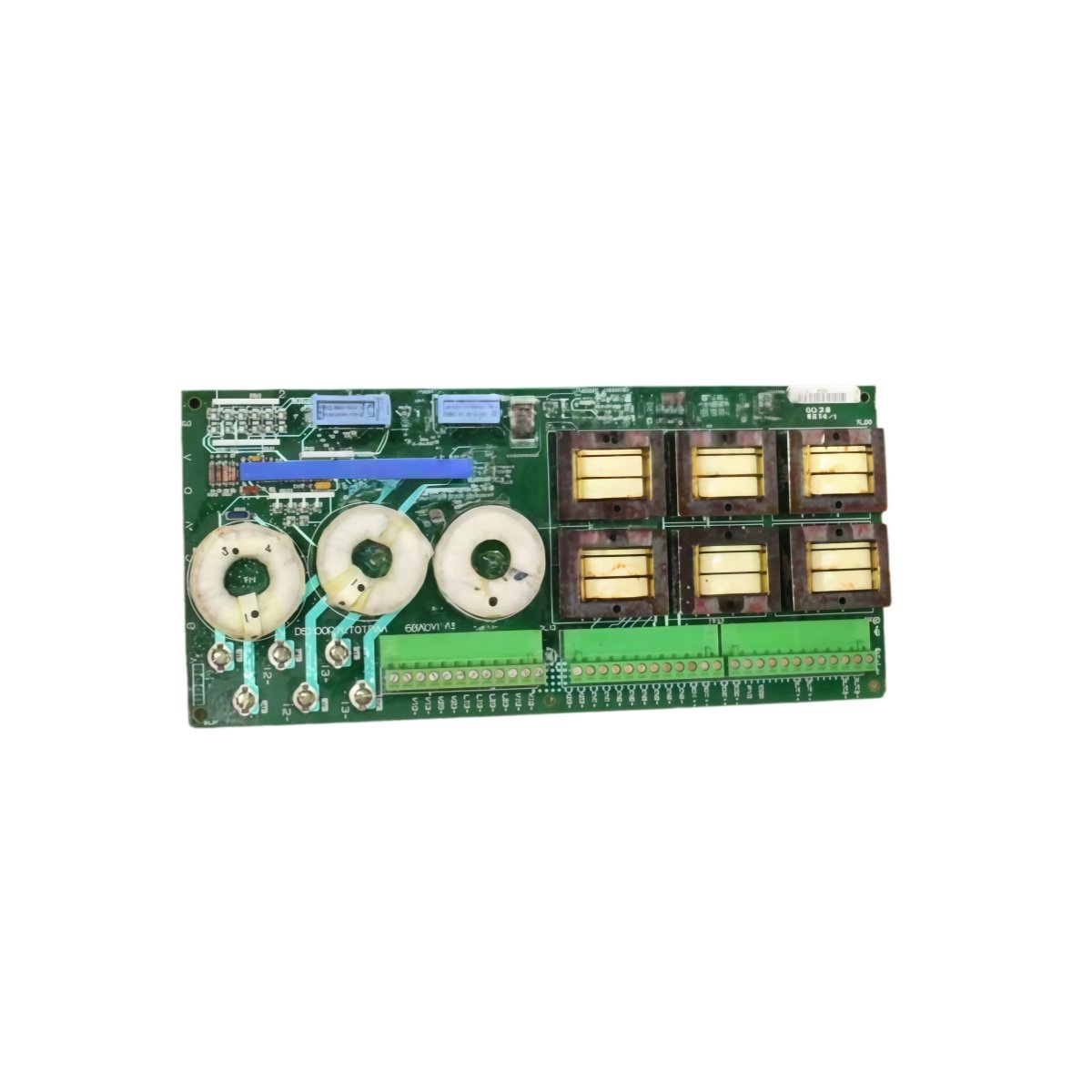

DS200PTCTG1B DS200PTCTG1BAA conditions analog input signals for GE Mark V turbine systems. This signal conditioner board measures 22.5 cm in width and 18.0 cm in depth. The unit weighs approximately 0.55 kg without any attached cables. You will find two 20-pin ribbon connectors on this assembly. The board also includes one 10-pin header for auxiliary signal input. For power needs, the board requires 15 V DC dual supply. It draws roughly 120 mA under normal operating conditions.

Signal Processing and Component Layout

The PCB uses a four-layer design for low noise performance. DS200PTCTG1B DS200PTCTG1BAA contains eight operational amplifier components. Four of these op-amps handle precision gain scaling tasks. Regarding energy storage, the board features seven electrolytic capacitors. Each capacitor stores 47 µF at 25 V. This configuration effectively smooths analog supply rails. Accordingly, the board achieves 0.1% signal linearity across its range. Twelve surface-mount resistors set gain values for each channel. Three trim potentiometers let you fine-tune offset voltages. The operating temperature range spans 0°C to 60°C. Meanwhile, humidity tolerance reaches 90% without condensation.

Input and Output Specifications

Four analog input channels accept 0 to 10 V DC signals. DS200PTCTG1B DS200PTCTG1BAA outputs four isolated 4 to 20 mA loops. Each output drives loads up to 500 ohms. Transitioning to physical protection, a conformal coating covers all components. This coating resists dust and vibration effectively. You can replace the board in under 8 minutes during maintenance.
